Запчасти Case IH 5120 (8-42) - HYDRAULIC, REMOTE AUXILIARY PIPES (08) - HYDRAULICS

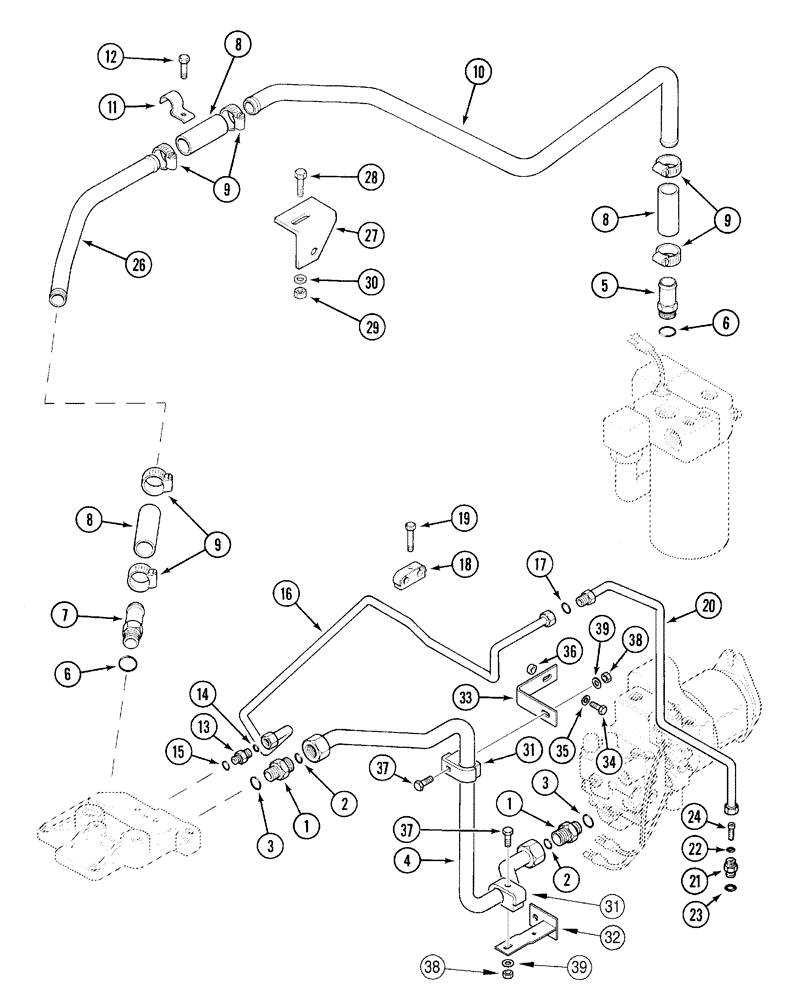

Схема запчастей Case IH 5120 - (8-42) - HYDRAULIC, REMOTE AUXILIARY PIPES (08) - HYDRAULICS
10
8
5
33
34
18
3
39
9
19
17
2
13
21
37
8
29
7
31
2
8
4
3
36
1
38
26
31
16
23
35
6
37
1
11
38
15
24
14
12
6
20
39
27
9
32
8
22
28
30

Артикул

Название

Примечание

Количество

1

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., , Includes Ref. 2 and 3 1 3/16"-12 ORFS x 1 1/16"-12 ORB

2шт.

2

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

4

NSS

NOT SOLD SEPARAT

PIPE - pressure (Order Kit 191056A1), Serial Range: -JKA82635

1шт.

4

187966A1

PIPE

- pressure, Start Serial: JKA82636

1шт.

5

T100045

CONNECTOR, ELEC

CONNECTOR - return, straight, Includes: Ref. 6

1шт.

6

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

7

1343779C1

FITTING

VALVE - check, auxiliary return (Bruning), Includes: Ref. 6

1шт.

6

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

7

1534372C1

VALVE, CHECK

VALVE - check, auxiliary return (Voss), Includes: Ref. 6

1шт.

6

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

8

1531600C1

HOSE

- connecting

3шт.

9

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

6шт.

10

1533288C1

RETURN PIPE

PIPE - return, front

1шт.

11

3141095R1

CLAMP

- pipe

1шт.

12

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

1шт.

13

201-125

HYD CONNECTOR,11/16"-16 ORFS x 7/16"-20 ORB

CONNECTOR - straight, 11/16-16 face x 7/16-20 boss, Includes: Ref. 14 and 15

1шт.

14

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

15

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

16

1531390C2

HYD TUBE

TUBE - pilot, auxiliary valve, rear

1шт.

17

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

18

T103147

FIXING BRACKET

CLAMP - pipe, double

1шт.

19

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

1шт.

20

1533577C1

HYD TUBE

TUBE - pilot, auxiliary valve, front, Start Serial: JKA58095

1шт.

20

1531749C1

HYD TUBE

TUBE - pilot, auxiliary valve, front, Serial Range: -JKA58094

1шт.

21

1534787C1

FITTING

ADAPTER - components not serviced separately, Start Serial: JKA58095

1шт.

21

1534508C1

FITTING

CONNECTOR - special, Includes: Ref. 22 and 24, Serial Range: -JKA58094

1шт.

22

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

24

1533329C1

FILTER SCREEN

SCREEN - filter

1шт.

26

1531955C1

PIPE

- return, rear

1шт.

27

1531969C1

SUPPORT

BRACKET - pipe return

1шт.

28

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm

1шт.

29

825-1406

NUT,M6, Cl 8

1шт.

30

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

191056A1

PACKAGE, REPAIR

KIT - field, supply tube (Also Includes item 4), Includes: Ref. 31 - 39

1шт.

31

191054A1

CLAMP

- tube, single

2шт.

32

191050A1

SUPPORT ASSY.

BRACKET - assembly, tube

1шт.

33

191053A1

SUPPORT

BRACKET - tube

1шт.

34

828-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

- hex, 10 - 1.5 x 90 mm, class 10.9

1шт.

35

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

36

191055A1

SPACER

- bracket

2шт.

37

814-6045

BOLT,Hex, M6 x 1 x 45mm, Cl 8.8

2шт.

38

825-1406

NUT,M6, Cl 8

2шт.

39

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

23

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
