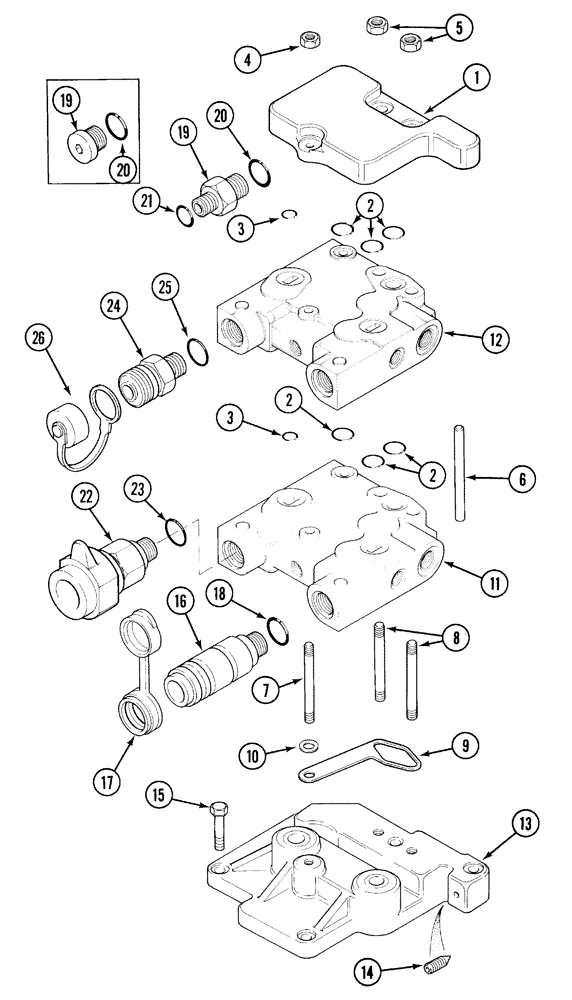

Запчасти Case IH 5120 (8-40) - HYDRAULIC, REMOTE AUXILIARY VALVES STACK (08) - HYDRAULICS

1

REF

INSTRUCTION

COVER - assembly, end, with power beyond, (See Figure: 8-46,8-50)

1шт.

1

G110143

COVER

- assembly, end, without power beyond

1шт.

2

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

3

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

4

824-1410

NUT,M10, Cl 5

- hex, 10 mm

1шт.

5

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

6

G110410

ROD

- linkage (Used with one auxiliary valve)

1шт.

6

G110178

ROD

- linkage (Used with two auxiliary valves)

1шт.

6

G110177

ROD

- linkage (Used with three auxiliary valves)

1шт.

6

G110176

ROD,16mm OD x 199mm L

- linkage (Used with four auxiliary valves)

1шт.

7

1346126C3

TRUSS ROD

STUD - valve, 10 x 110 mm (Used with one auxiliary valve)

1шт.

7

1346128C3

TRUSS ROD

STUD - valve, 10 x 154 mm (Used with two auxiliary valves)

1шт.

7

1346130C3

TRUSS ROD

STUD - valve, 10 x 199 mm (Used with three auxiliary valves)

1шт.

7

1346132C3

TRUSS ROD

STUD - valve, 10 x 243 mm (Used with four auxiliary valves)

1шт.

8

1346127C3

TRUSS ROD

STUD - valve, 12 x 110 mm (Used with one auxiliary valve)

2шт.

8

1346129C3

TRUSS ROD

STUD - valve, 12 x 154 mm (Used with two auxiliary valves)

2шт.

8

1346131C3

TRUSS ROD

STUD - valve, 12 x 199 mm (Used with three auxiliary valves)

2шт.

8

1346133C3

TRUSS ROD

STUD - valve, 12 x 243 mm (Used with four auxiliary valves)

2шт.

9

1346059C2

SHIM

- valve stack

1шт.

10

NSS

NOT SOLD SEPARAT

SHIM - valve stack, , (No longer used, order 1346059C2)

1шт.

11

REF

INSTRUCTION

VALVE - assembly, priority (See Figure: 8-52, 8-54)

1шт.

12

REF

INSTRUCTION

VALVE - assembly, hydraulic (See Figure: 8-56 thru 8-66)

1шт.

13

REF

INSTRUCTION

MANIFOLD - inlet/outlet (See Figure: 8-50)

1шт.

14

30733R1

SET SCREW,Hex Soc, M8 x 10, Cup Pt

SCREW - set

1шт.

15

828-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 40 mm, class 10.9

3шт.

16

93177C5

COUPLING, BREAK AWAY

COUPLING - hydraulic breakaway (Optional to 22), Includes: Ref. P/N A47221

1шт.

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

RING - sealing

1шт.

17

1954146C1

CAP

- dust

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

19

9841223

PLUG,1-1/16" - 12 ORB

(Version without power beyond), Incl. Ref. 20 Hex Soc, 1 1/16"-12 ORB

1шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

19

1346170C1

ADAPTER

- version with power beyond

1шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

22

1954145C2

COUPLING, BREAK AWAY

COUPLING - push/pull (Optional to 16), Includes: Ref. 23

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

1534623C1

SEAL KIT

KIT - seals for 1954145C2

1шт.

24

1954144C2

COUPLING

COUPLING - screw on

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

26

T104552

CAP

- dust

1шт.
