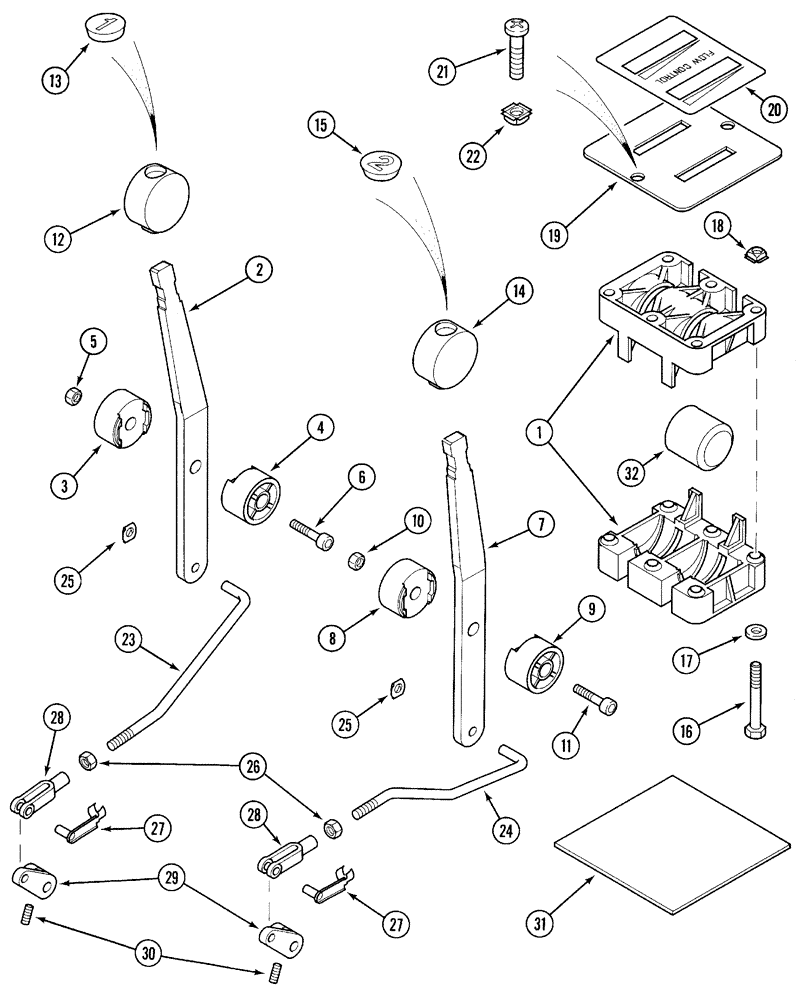

Запчасти Case IH 5120 (8-38) - INTERIOR REMOTE FLOW CONTROLS, CAB VERSION (08) - HYDRAULICS

1

T102996

BEARING HOUSING

HOUSING - bearing, plastic

1шт.

1990675C1

LEVER ASSY.

HANDLE - assembly, position 1, Includes: Ref. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

HANDLE - flow control, (Order 1990675C1)

1шт.

3

1531277C1

ROLLER

- cylindrical

1шт.

4

1531280C1

ROLLER

- cylindrical

1шт.

5

934306R1

LOCK NUT,M5 x .8, Thin

NUT, LOCK, M5 x .8, Thin

1шт.

6

864-5025

HEX SOC SCREW,M5 x 25mm, Cl 8.8

1шт.

1990676C1

LEVER ASSY.

HANDLE - assembly, position 2, Includes: Ref. 7 - 11

1шт.

7

NSS

NOT SOLD SEPARAT

HANDLE - flow control, (Order 1990676C1)

1шт.

8

1531277C1

ROLLER

- cylindrical

1шт.

9

1531280C1

ROLLER

- cylindrical

1шт.

10

934306R1

LOCK NUT,M5 x .8, Thin

NUT, LOCK, M5 x .8, Thin

1шт.

11

864-5025

HEX SOC SCREW,M5 x 25mm, Cl 8.8

1шт.

12

1974838C1

BUTTON

KNOB - assembly, position 1, Includes: Ref. 13

1шт.

13

NSS

NOT SOLD SEPARAT

INSERT - symbol, (Order 1974838C1)

1шт.

14

1974839C1

BUTTON

KNOB - assembly, position 2, Includes: Ref. 15

1шт.

15

NSS

NOT SOLD SEPARAT

INSERT - symbol,(Order 1974839C1)

1шт.

16

814-6045

BOLT,Hex, M6 x 1 x 45mm, Cl 8.8

6шт.

17

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

18

1999424C1

NUT

- 6 mm

6шт.

19

1987198C1

COVER

- flow control

1шт.

20

1990673C1

DECAL

- flow control

1шт.

21

840-1520

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

22

1999423C1

NUT

- 5 mm cage

2шт.

23

1987190C1

ROD

- setting, position 1

1шт.

24

1987189C1

ROD

- setting position 2

1шт.

25

1999651C1

CLIP,ELECTRICAL

CLIP - retaining

2шт.

26

825-1405

NUT,M5, Cl 8

2шт.

27

1999650C1

CLEVIS PIN

PIN - snap, 5 mm

2шт.

28

713-115

ADJUSTABLE CLEVIS

CLEVIS - adjustable, 5 mm x 20mm

2шт.

29

1987191C2

LEVER

- flow, control

2шт.

30

877-6056

SET SCREW,M5 x 6mm

SCREW - set, hex socket, half dog point, 5 - 0.8 x 6 mm

2шт.

31

112569A1

COVER

- controls, (versions without flow control)

1шт.

32

T102997

END FITTING,26 mm ID x 32 mm OD x 34.5 mm L

TUBE - plastic (Versions with 1 control only)

1шт.
