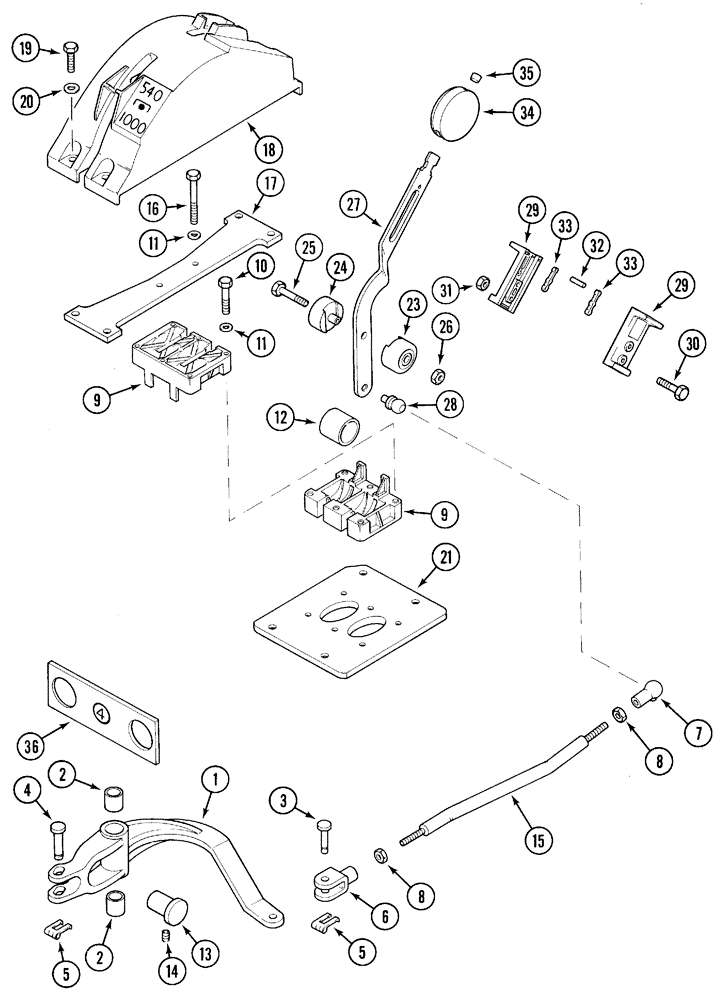

Запчасти Case IH 5120 (8-36) - HYDRAULICS, CONTROLS FOR 4TH REMOTE VALVE (08) - HYDRAULICS

1

1999664C1

CONTROL LEVER

LEVER - shifting, Includes: Ref. 2

1шт.

2

1533536C1

BUSHING,16mm ID x 18mm OD x 15mm L

- plastic, 16 mm diameter

2шт.

3

1531949C1

PIN,7.9mm OD x 24mm L

- yoke clevis

1шт.

4

1531333C1

PIN,7.9mm OD x 34mm L

- shifting lever

1шт.

5

T102627

CLIP

- pivot retaining

2шт.

6

3399152R1

YOKE

BRACKET - yoke

1шт.

7

1531284C1

BALL SOCKET,M8 x 53mm L

SOCKET - ball

1шт.

8

825-1408

NUT,M8, Cl 8

2шт.

9

T102996

BEARING HOUSING

HOUSING - bearing, plastic

2шт.

10

614-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 50 mm, 8.8

4шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

12

T102997

END FITTING,26 mm ID x 32 mm OD x 34.5 mm L

TUBE - plastic

1шт.

13

1999649C1

LEVER

KNOB - flow control

1шт.

14

877-6056

SET SCREW,M5 x 6mm

SCREW - set, hex socket, half dog point, 5 - 0.8 x 6 mm

1шт.

15

1531942C1

ROD

- connecting, 4th valve

1шт.

16

3232142R1

BOLT,Hex, M6 x 1 x 55mm, Cl 8.8, Full Thd

- hex. head, class 8.8, 6 mm x 55mm

2шт.

17

1531276C1

SUPPORT

- console

1шт.

18

1531275C1

PROTECTIVE COVER

COVER - 4th auxiliary control

1шт.

19

565-103

HEX SOC SCREW,M6 x 12mm, Cl 8.8

- class 8.8, 6 mm x 12mm

4шт.

20

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

21

1531480C1

PLATE

BRACKET - control mounting

1шт.

1531265C2

CONTROL LEVER

ARM - assembly, 4th valve, Includes: Ref. 23 - 28

1шт.

23

1531277C1

ROLLER

- cylindrical

1шт.

24

1531280C1

ROLLER

- cylindrical

1шт.

25

864-5025

HEX SOC SCREW,M5 x 25mm, Cl 8.8

1шт.

26

934306R1

LOCK NUT,M5 x .8, Thin

NUT, LOCK, M5 x .8, Thin

1шт.

27

NSS

NOT SOLD SEPARAT

ARM - (Order 1531265C2), Includes: Ref. 28

1шт.

28

3234708R1

BALL STUD

BALL - 10 mm, joint

1шт.

29

1531281C1

STOP LOCK

LOCK - half

2шт.

30

905917R1

HEX SOC SCREW,M4 x 12mm, Cl 8.8

- 4 mm x 12mm

2шт.

31

825-1404

NUT,M4, Cl 8

2шт.

32

905919R1

DOWEL,M2 x 12

PIN - straight, 2 x 12 mm

1шт.

33

1531289C2

SPRING

- detent

2шт.

34

1974841C1

BUTTON

KNOB - assembly, position 4, Includes: Ref. 35

1шт.

35

NSS

NOT SOLD SEPARAT

INSERT - symbol (Order 1974841C1)

1шт.

36

1531518C2

SYMBOLS

PLATE - marking, position 4

1шт.
