Запчасти Case IH 5120 (8-26) - HYDRAULIC, INPUT CONTROL LINES (08) - HYDRAULICS

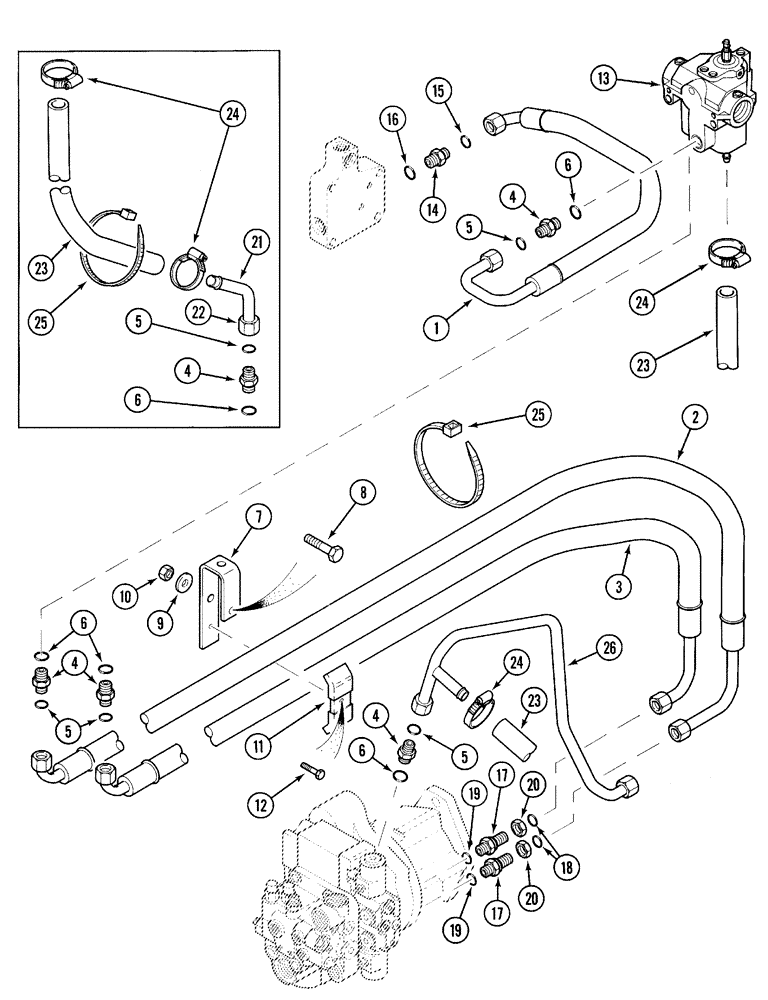

Схема запчастей Case IH 5120 - (8-26) - HYDRAULIC, INPUT CONTROL LINES (08) - HYDRAULICS
25
9
7
24
5
19
1
22
4
17
20
2
25
18
15
4
6
19
24
24
12
23
6
26
21
23
5
10
13
6
20
23
3
6
17
4
16
5
4
14
11
8
5

Артикул

Название

Примечание

Количество

1

1533922C1

HOSE ASSY.

HOSE - input valve, P1, Start Serial: JJF1011270

1шт.

1

1531715C1

HOSE

- input valve, P1, Serial Range: -JJF1011269

1шт.

2

1533617C1

HOSE

- input valve, X1, Start Serial: JJF1011270

1шт.

2

1531716C1

HOSE

- input valve, X1, Serial Range: -JJF1011269

1шт.

3

1533618C1

HOSE

- input valve, X2, Start Serial: JJF1011270

1шт.

3

1531717C1

HOSE

- input valve, X2, Serial Range: -JJF1011269

1шт.

4

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Straight, Incl Ref. 5 and 6 11/16"-16 ORFS x 9/16"-18 ORB, Start Serial: JJF1011270

4шт.

5

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

4

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Straight, Incl Ref. 5 and 6 11/16"-16 ORFS x 9/16"-18 ORB, Serial Range: -JJF1011269

3шт.

5

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

7

1531745C2

BRACKET

SUPPORT - hose

1шт.

8

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

- hex, 8 - 1.25 x 50 mm (8.8)

1шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 16 x 1.6 mm

1шт.

10

825-1408

NUT,M8, Cl 8

1шт.

11

T103147

FIXING BRACKET

CLAMP - pipe, double

1шт.

12

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

1шт.

13

REF

INSTRUCTION

VALVE - assembly, input control,(See Figure 8-28)

1шт.

14

201-106

HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

FITTING - straight, 11/16-16 face x 3/4-16 boss, Includes: Ref. 15 and 16

1шт.

15

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

17

1533046C2

FITTING

ADAPTER - 9/16 to 11/16 inch, Includes: Ref. 18 - 20

2шт.

18

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

20

201-909

BHD LOCK NUT,Blkhd, 11/16"-16

NUT, LOCK, Blkhd, 11/16"-16

1шт.

21

1533384C2

PIPE

- return, Start Serial: JJF1011270

1шт.

22

203-901

TUBE NUT,17 mm Length

NUT - hex, tube, 11/16-16 face seal, Start Serial: JJF1011270

1шт.

23

1533447C1

HOSE

- return, 650 mm, Start Serial: JJF1011270

1шт.

24

905893R1

CLAMP,M12-23, Worm

- hose, Start Serial: JJF1011270

2шт.

25

3402979R2

BAND

STRAP - cable tie, Start Serial: JJF1011270

2шт.

26

1530726C1

PIPE

- front PTO

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Выбрано товаров: 32
