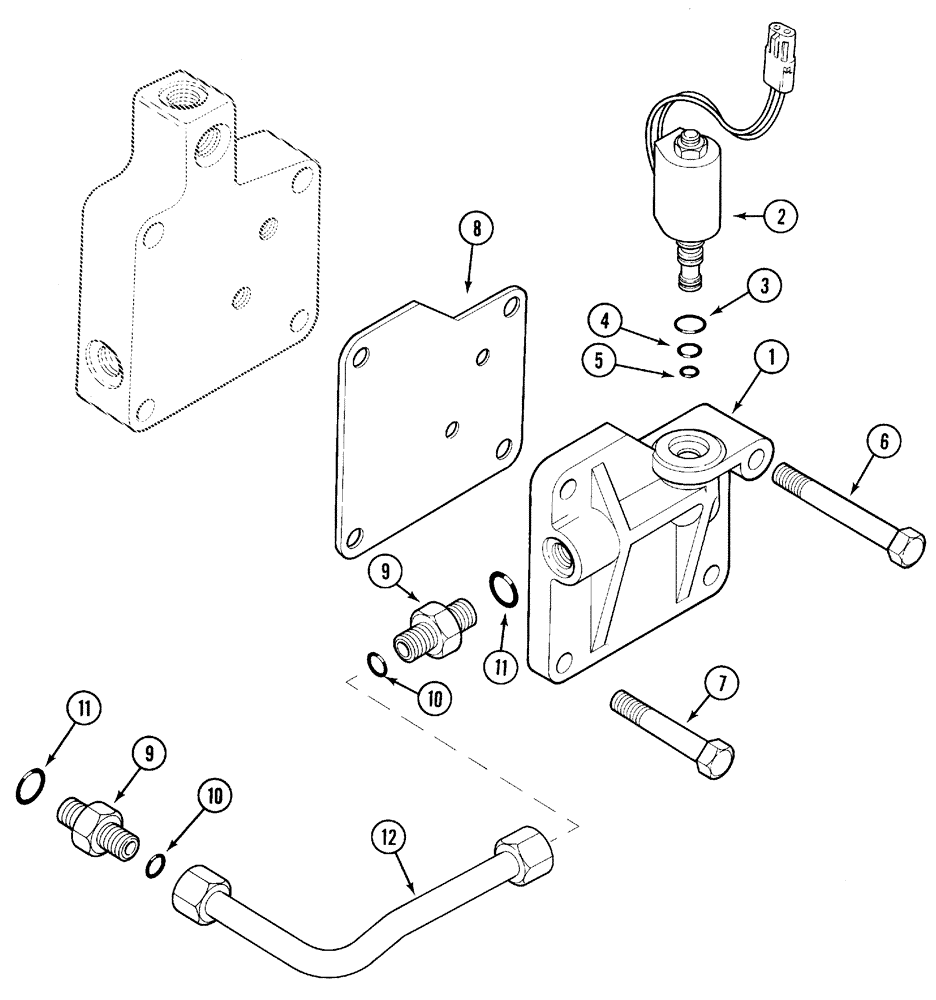

Запчасти Case IH 5120 (8-24) - HYDRAULIC, MFD VALVE AND PIPE (08) - HYDRAULICS

1

1976830C1

BODY

- MFD valve, Start Serial: JJF1023388

1шт.

2

1971474C3

SOLENOID

- differential lock, Includes: Ref. 3 - 5

1шт.

3

237-6007

O-RING,0.08" Thk x 0.53" ID, -907, Cl 6, 90 Duro

- 17/32 ID x 3/32 inch wide

1шт.

4

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

5

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

1

1986523C1

VALVE BODY

MANIFOLD - hydraulic valve, Serial Range: -JJF10223387

1шт.

2

1971474C3

SOLENOID

MFD, Inc 3 - 5

1шт.

3

237-6007

O-RING,0.08" Thk x 0.53" ID, -907, Cl 6, 90 Duro

- 17/32 ID x 3/32 inch wide

1шт.

4

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

5

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

6

828-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

- hex, 10 - 1.5 x 90 mm, class 10.9

1шт.

7

828-10065

BOLT,Hex, M10 x 1.5 x 65mm, Cl 10.9

- hex, 10-1.5 x 65 mm, class 10.9

3шт.

8

1976851C1

MANIFOLD GASKET

-, Serial Range: valve-manifold

1шт.

9

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Straight, Incl Ref. 10 and 11 11/16"-16 ORFS x 9/16"-18 ORB

2шт.

10

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

12

1533883C1

PIPE

- valve to housing, Start Serial: JJF1023388

1шт.

12

T102017

PIPE

- valve to housing, Serial Range: -JJF1023387

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
