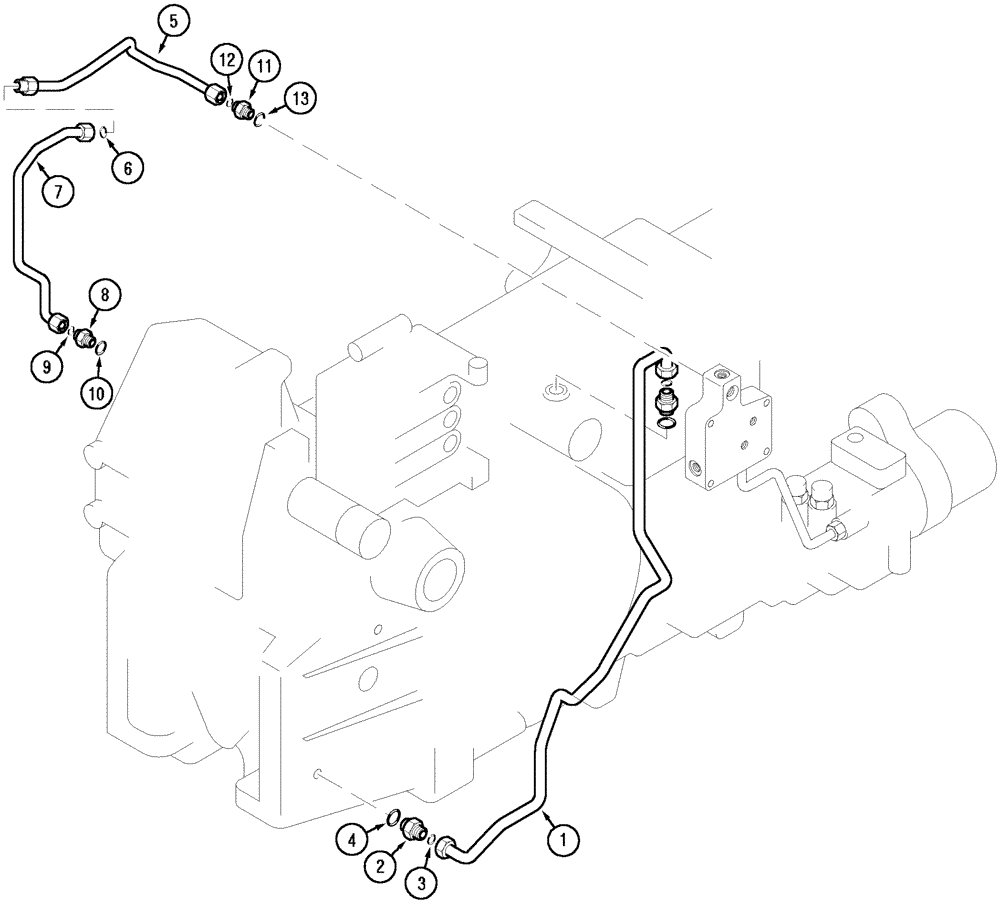

Запчасти Case IH 5120 (8-20) - HYDRAULICS, PTO (08) - HYDRAULICS

1

142255A1

PIPE

- manifold to PTO, Start Serial: JJF1030000

1шт.

2

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Straight, Incl Ref. 3 and 4 11/16"-16 ORFS x 9/16"-18 ORB

1шт.

3

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

5

1533765C1

PIPE

- manifold to PTO, Serial Range: -JJF1029999

1шт.

6

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

, Serial Range: -JJF1029999

1шт.

7

1534591C1

PIPE

- PTO, Serial Range: -JJF1029999

1шт.

8

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Straight, Incl Ref. 9 and 10 11/16"-16 ORFS x 9/16"-18 ORB

2шт.

9

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

11

201-910

PLUG,9/16"-18 ORFS

- hex, tube, 1-18 face NF, not shown, Start Serial: JJF1030000

1шт.

11

1543143C1

VALVE, CHECK

VALVE - check, Includes: Ref. 12 and 13, Serial Range: -JJF1029999

1шт.

12

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
