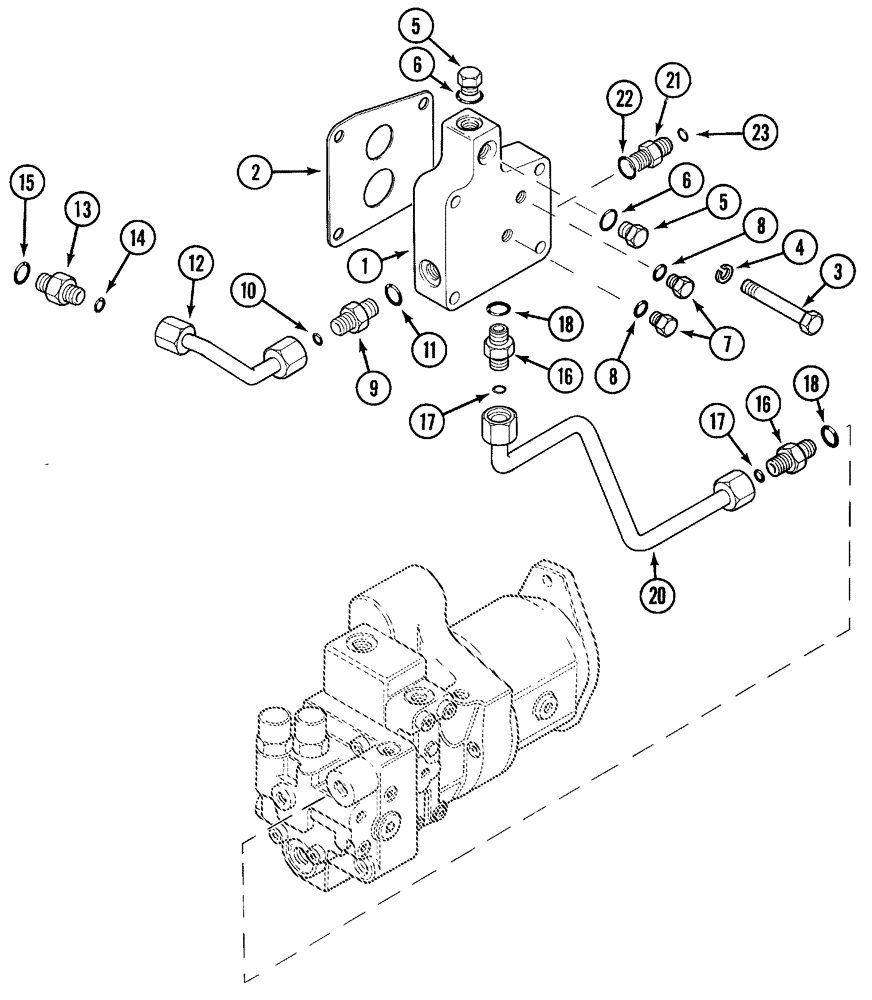

Запчасти Case IH 5120 (8-18) - HYDRAULIC, MANIFOLD AND PIPES (08) - HYDRAULICS

1

1986523C1

VALVE BODY

MANIFOLD - hydraulic valve, Start Serial: JJF1023388

1шт.

1

1976831C1

MANIFOLD

- hydraulic valve, (See Also Figure 8-24), Serial Range: -JJF1023387

1шт.

2

139886A1

GASKET

GASKET - hydraulic manifold, Start Serial: JJF1023388

1шт.

2

1976852C1

MANIFOLD GASKET

- manifold, Serial Range: -JJF1023387

1шт.

3

828-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

- hex, 10 - 1.5 x 55 mm

4шт.

4

892-11010

LOCK WASHER,M10

4шт.

5

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 6 Hex Soc, 9/16"-18 ORB

2шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

7

86529630

PLUG,Hex Soc, 3/8"-24 ORB

Includes Ref. 8 Hex Soc, 3/8"-24 ORB

2шт.

8

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

9

1978398C2

FITTING

- assembly, with screen, Includes: Ref. 10 and 11, Serial Range: -JJF1008741.

1шт.

10

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

9

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 11 Hex Soc, 3/4"-16 ORB, Start Serial: JJF1008742

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

12

1533882C1

PIPE

- manifold to shuttle valve, Start Serial: JJF1023388

1шт.

12

T101053

PIPE

- manifold to shuttle valve, Serial Range: -JJF1023387

1шт.

13

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

FITTING - straight, 13/16-16 face x 7/8-14 boss, Includes: Ref. 14 and 15

1шт.

14

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

, Serial Range: -JJF1023387

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Start Serial: JJF1023387

1шт.

16

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

CONNECTOR, HYD., , Includes Ref. 17 and 18 13/16"-16 ORFS x 3/4"-16 ORB

2шт.

17

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

, Serial Range: -JJF1023387

2шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

20

T102930

TUBE

- pump compensator to manifold, Serial Range: -JJF1008741

1шт.

20

1533216C2

PIPE ASSY.

PIPE - pump compensator to manifold, Start Serial: JJF1008742

1шт.

21

201-106

HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

FITTING - straight, 11/16-16 face x 3/4-16 boss, Includes: Ref. 22 and 23

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

23

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
