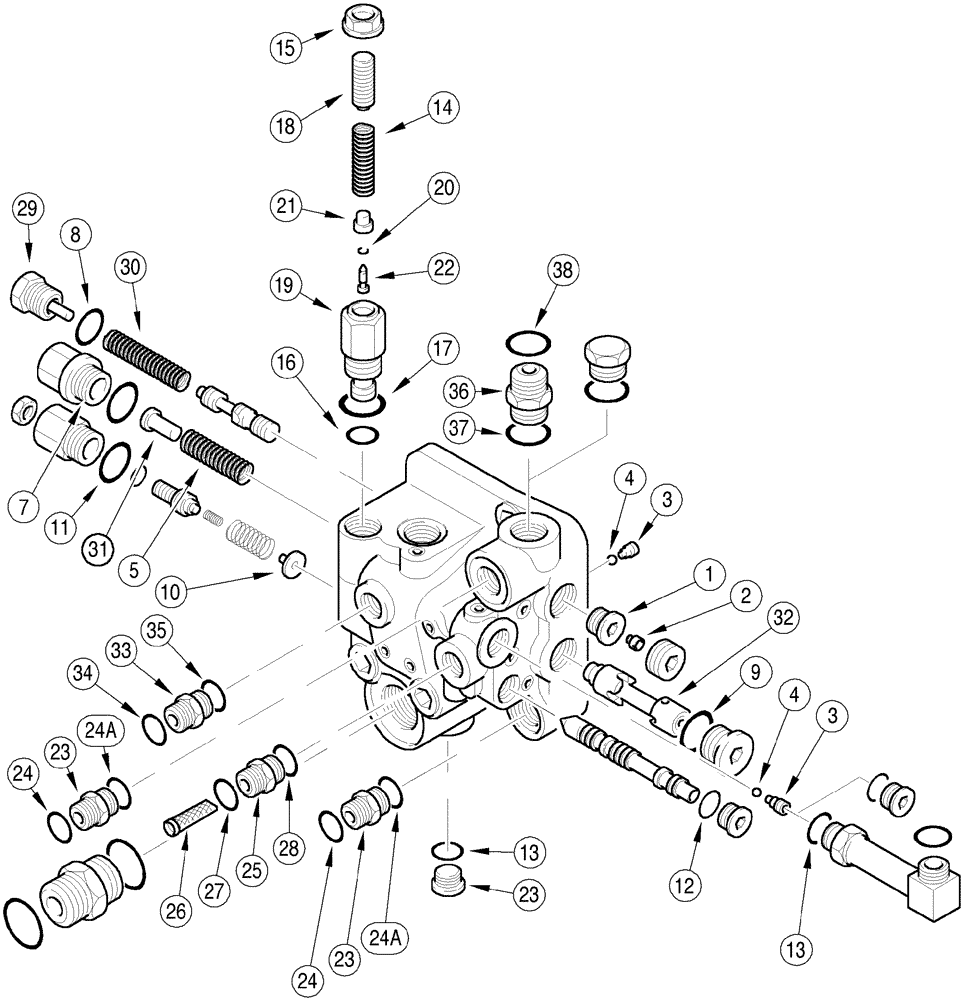

Запчасти Case IH 5120 (8-14) - HYDRAULIC, COMPENSATOR VALVE (08) - HYDRAULICS

119625A2

VALVE

- compensator, Serial Range: -JJF1029483

1шт.

187561A1

VALVE

- compensator, Includes: Ref. 1 - 13, Start Serial: JJF1029484

1шт.

1

NSS

NOT SOLD SEPARAT

PLUG -

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG - orifice

1шт.

3

NSS

NOT SOLD SEPARAT

SEAT - check valve

2шт.

4

NSS

NOT SOLD SEPARAT

BALL - check valve

2шт.

5

NSS

NOT SOLD SEPARAT

SPRING - steering priority

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - 21 mm x 2.5 mm

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - 15 mm x 2.5 mm

1шт.

9

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - 11.7 x 17 x 1

1шт.

11

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

12

238-6110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

1шт.

1346008C1

PRESSURE LIMITER

VALVE - pressure limiter, Includes: Ref. 14 - 22 and P/N 1986773C1

2шт.

1986773C1

SEAL KIT

- seal repair, Includes: Ref. 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

SPRING -

1шт.

15

NSS

NOT SOLD SEPARAT

NUT -

1шт.

16

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING -

1шт.

18

NSS

NOT SOLD SEPARAT

INSERT -

1шт.

19

NSS

NOT SOLD SEPARAT

BODY -

1шт.

20

NSS

NOT SOLD SEPARAT

RING -

1шт.

21

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

22

NSS

NOT SOLD SEPARAT

POPPET -

1шт.

9625178

PLUG,9/16" - 18 ORB

, Start Serial: JJF1019581

2шт.

23

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

CONNECTOR, HYD., , Includes Ref. 24 and 24A 13/16"-16 ORFS x 3/4"-16 ORB, Serial Range: -JJF1019580

2шт.

24

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

9625178

PLUG,9/16" - 18 ORB

, Start Serial: JJF1019581

1шт.

1534787C1

FITTING

ADAPTER - components not serviced separately, Includes: Ref. 25 - 28, Serial Range: -JJF1019580

1шт.

25

NSS

NOT SOLD SEPARAT

CONNECTOR -

1шт.

26

1533329C1

FILTER SCREEN

SCREEN - filter

1шт.

27

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

119654A1

GOVERNOR

KIT - regulator, 20bar, Serial Range: -JKA67970

1шт.

119626A1

GOVERNOR

KIT - regulator, 17bar, Includes: Ref. 29 and 30, Serial Range: -JKA67970

1шт.

29

NSS

NOT SOLD SEPARAT

PLUG -

1шт.

30

NSS

NOT SOLD SEPARAT

SPRING -

1шт.

31

NSS

NOT SOLD SEPARAT

STOP -

1шт.

32

193370A1

SPOOL

- priority valve, with orifice

1шт.

If looking for different/longer spool that was used on earlier machine, order P/N 1533768C1

1шт.

32

226442A1

SPOOL

- priority valve, without orifice

1шт.

33

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Straight, Incl Ref. 34 and 35 11/16"-16 ORFS x 9/16"-18 ORB

1шт.

34

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

36

1980118C1

VALVE

- check, Includes: Ref. 37 and 38

1шт.

37

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

3шт.

24a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

28

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

35

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

38

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
