Запчасти Case IH 5120 (8-12) - HYDRAULIC, DRAFT CONTROL VALVE, VERSION WITH THREE SOLENOIDS (08) - HYDRAULICS

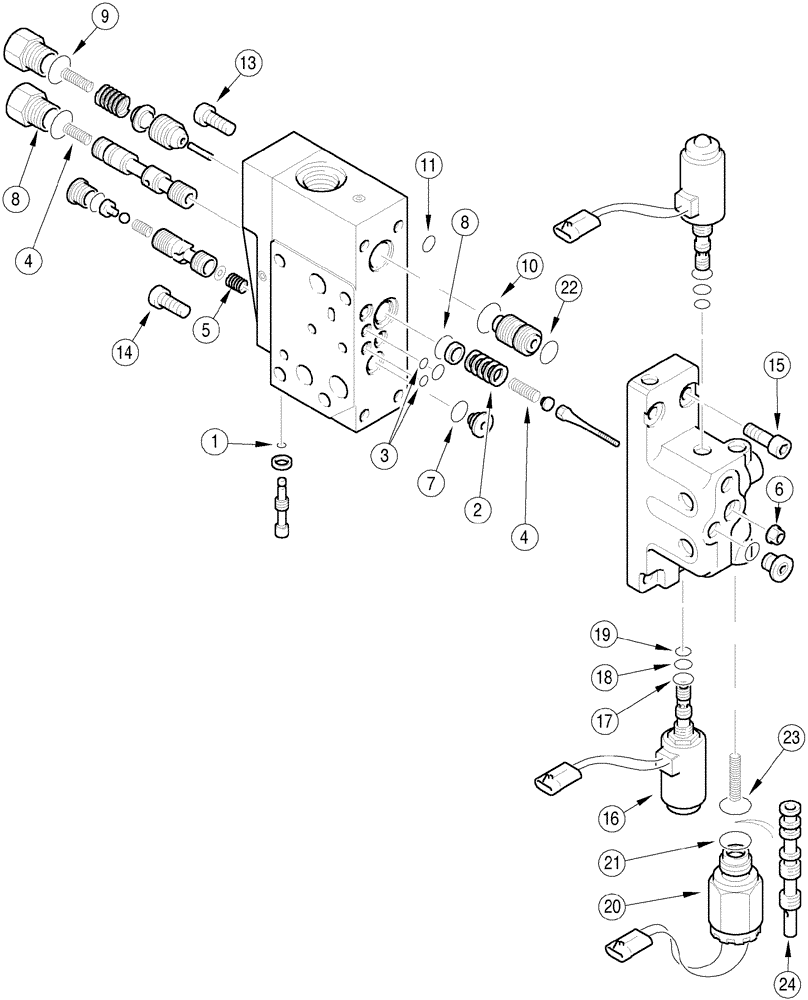

Схема запчастей Case IH 5120 - (8-12) - HYDRAULIC, DRAFT CONTROL VALVE, VERSION WITH THREE SOLENOIDS (08) - HYDRAULICS
21
8
14
19
7
4
2
18
16
4
17
15
3
1
11
5
22
6
10
23
20
24
9
13
8

Артикул

Название

Примечание

Количество

1343700C5

VALVE

- draft control, Includes: Ref. 1 - 23 and P/N 1346007C3

1шт.

1346007C3

SEAL KIT

KIT - seal repair, Includes: Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

O-RING - 2.5 mm x 1 mm

1шт.

2

NSS

NOT SOLD SEPARAT

SPRING - bellevile

5шт.

3

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

2шт.

4

NSS

NOT SOLD SEPARAT

SPRING - draft control spool

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - flow control

1шт.

6

NSS

NOT SOLD SEPARAT

NUT - lock, drop control adjusting

2шт.

7

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

-016, 70 Duro, .614" ID x .070" Thk

1шт.

8

238-5019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

-019, 70 Duro, .801" ID x .070" Thk

2шт.

9

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

-021, 70 Duro, .926" ID x .070" Thk

1шт.

10

238-5020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro

-020, 70 Duro, .864" ID x .070" Thk

1шт.

11

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

5шт.

12

NSS

NOT SOLD SEPARAT

SEAL - outer, emergency drop/bleed screw

1шт.

13

NSS

NOT SOLD SEPARAT

BOLT - 8 mm x 35 mm class 8.8

4шт.

14

NSS

NOT SOLD SEPARAT

BOLT - 8 mm x 25 mm class 8.8

2шт.

15

NSS

NOT SOLD SEPARAT

BOLT - 10 mm x 35 mm class 8.8

4шт.

16

1971474C3

SOLENOID

Draft Control, Inc 17 - 19

2шт.

17

237-6007

O-RING,0.08" Thk x 0.53" ID, -907, Cl 6, 90 Duro

- 17/32 ID x 3/32 inch wide

2шт.

18

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

2шт.

19

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

2шт.

20

221441A1

SOLENOID

- third valve assembly, Includes: Ref. 21

1шт.

21

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

1шт.

22

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

23

238-6020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

1шт.

24

1530783C1

SPOOL

- working valve

1шт.

Выбрано товаров: 26
