Запчасти Case IH 5120 (8-08) - HYDRAULIC, PUMP ASSEMBLY (08) - HYDRAULICS

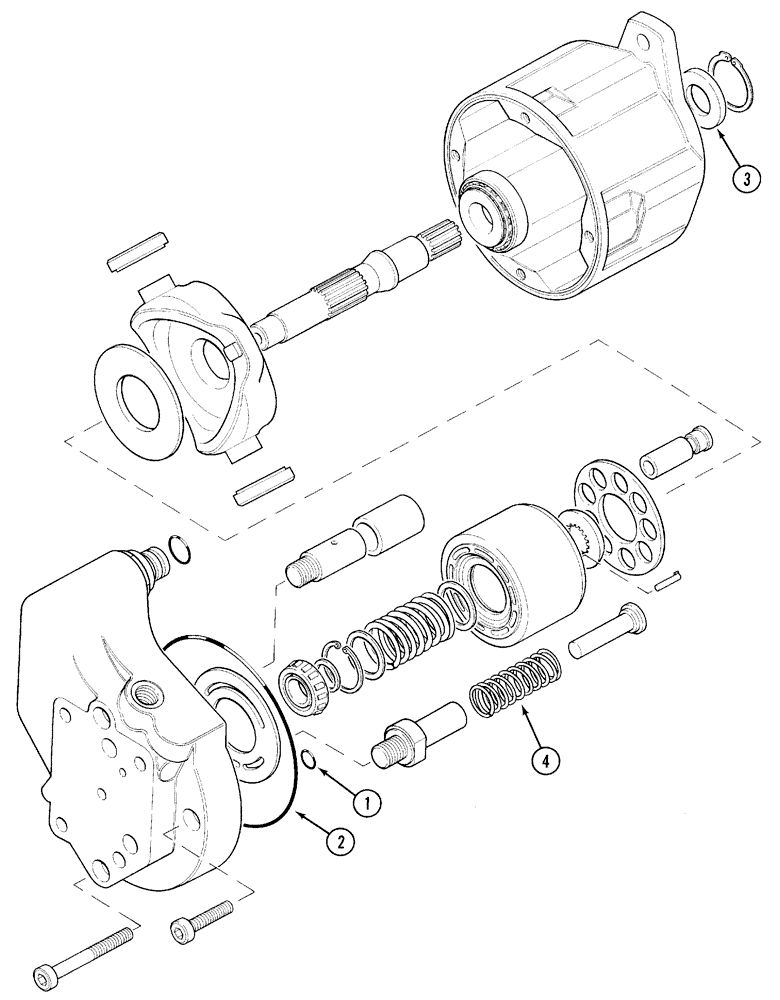

Схема запчастей Case IH 5120 - (8-08) - HYDRAULIC, PUMP ASSEMBLY (08) - HYDRAULICS
2
4
1
3

Артикул

Название

Примечание

Количество

1343659C1

PUMP

- assembly, with manifold, Includes: Ref. 1 - 4 and P/N 1346319C1

1шт.

1343659C2R

REMAN-HYD PUMP

5120, 5220, Reman For New P/N's 1343659C1 & C2, N.A. Only

1шт.

1343659C2C

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

1346319C1

SEAL KIT

- seal repair, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

O-RING - 13 x 2 mm (Order kit 1346319C1)

1шт.

2

NSS

NOT SOLD SEPARAT

O-RING - 148 x 2.5 mm (Order kit 1346319C1)

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL - input shaft (Order kit 1346319C1)

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING - control (Order kit 1346319C1)

1шт.

Выбрано товаров: 8
