Запчасти Case IH 5120 (8-04) - HYDRAULIC, PUMP, FILTER AND PIPES (08) - HYDRAULICS

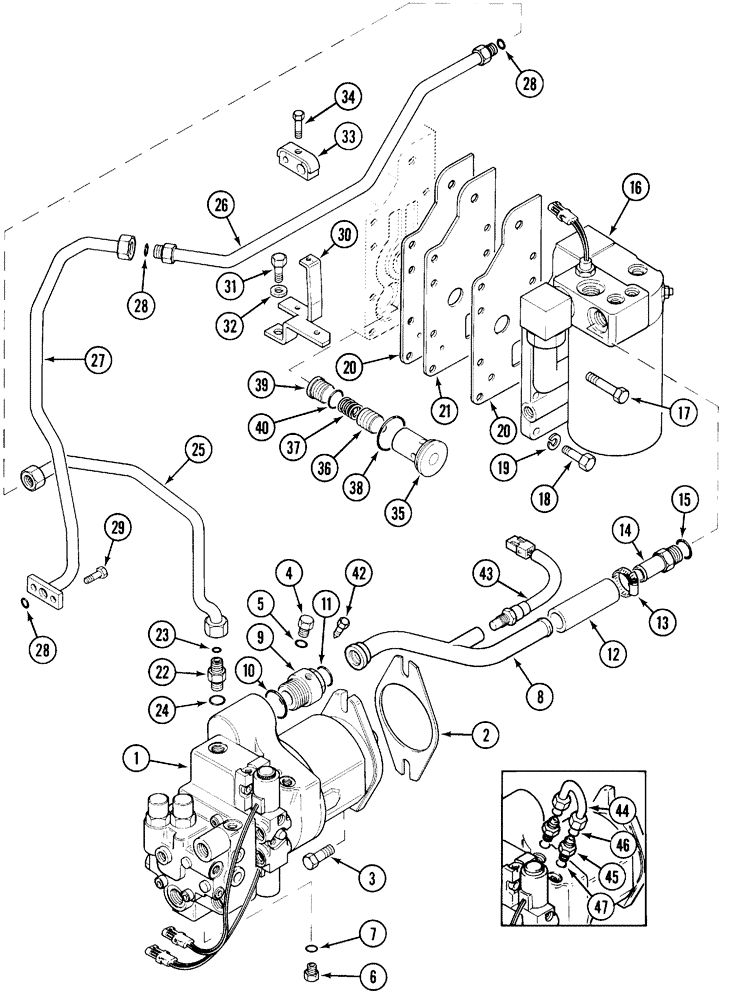

Схема запчастей Case IH 5120 - (8-04) - HYDRAULIC, PUMP, FILTER AND PIPES (08) - HYDRAULICS
42
30
11
18
37
9
27
24
20
10
31
28
40
5
39
44
4
47
15
1
13
25
46
8
21
14
33
45
43
7
16
26
34
2
6
38
12
23
28
35
32
28
20
17
29
36
22
19
3

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PUMP - hydraulic, with multi control valve (See Figure: 8-6)

1шт.

2

139883A1

GASKET

- control valve

1шт.

3

628-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

BOLT, Hex, M12 x 35, 10.9, Full Thd

2шт.

4

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

(Early Production) Hex, M12 x 35, 8.8, Full Thd

1шт.

4

9625178

PLUG,9/16" - 18 ORB

(Later Production), Incl. Ref. 5 Hex Soc, 9/16"-18 ORB

1шт.

6

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 7 Hex Soc, 9/16"-18 ORB

1шт.

8

1533037C1

SUCTION PIPE

PIPE - suction

1шт.

9

1531614C1

FITTING

ADAPTER - pump

1шт.

10

T103357

O-RING,38mm ID x 3mm Width

- 38 x 3 mm

1шт.

11

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

12

1531600C1

HOSE

- connecting

1шт.

13

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

2шт.

14

T100045

CONNECTOR, ELEC

CONNECTOR - return, straight

1шт.

14

1343779C1

FITTING

VALVE - check, auxiliary return (Bruning) (With Push/Pull Couplers), Includes: Ref. 15

1шт.

15

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

16

REF

INSTRUCTION

FILTER - assembly, hydraulic (See Figure 8-16)

1шт.

17

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

4шт.

18

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm

4шт.

19

892-11010

LOCK WASHER,M10

8шт.

20

139882A2

SEAL,0.25mm Thk

GASKET - filter manifold

2шт.

21

1340757C1

PLATE ASSY.

PLATE - filter adapter

1шт.

22

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

CONNECTOR, HYD., , Includes Ref. 23, 24 1"-14 ORFS x 7/8"-14 ORB

1шт.

23

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

25

1531041C2

PIPE

- lift, front

1шт.

26

1531040C2

PIPE

- lift, middle

1шт.

27

1531039C3

PIPE

- lift, rear

1шт.

28

T102297

O-RING,1.78mm Thk x 15.6mm ID, 90 Duro

-

3шт.

29

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

2шт.

30

1531746C2

BRACKET

SUPPORT - assembly

1шт.

31

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm

1шт.

32

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

- flat, 13.5 x 24 x 2.5 mm

1шт.

33

T101168

CLAMP

- pipe, double

1шт.

34

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

1шт.

35

107451A2

VALVE

- assembly, lube relief, Includes: Ref. 36 - 40, Start Serial: JJF1000600

1шт.

36

NSS

NOT SOLD SEPARAT

VALVE - poppet

1шт.

37

107454A2

SPRING

- valve

1шт.

38

107452A1

CIRCLIP

RING - retaining, seal

1шт.

39

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

, Serial Range: -JJF1026700

1шт.

40

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

35

1976963C3

VALVE

- assembly, lube relief, Includes: Ref. 36 - 40, Serial Range: -JJF1000599

1шт.

36

1340768C1

SPOOL

VALVE - poppet

1шт.

37

1340769C1

VALVE SPRING

SPRING - valve

1шт.

38

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

39

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 40 Hex Soc, 1 1/16"-12 ORB

1шт.

40

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

42

1531588C1

SCREW,M6 x 16mm, Gr 8

- set

1шт.

43

1983380C1

SWITCH

- low temperature

1шт.

44

1531044C1

HYD TUBE,8 mm OD, 50, 35 mm Length

TUBE - drain, power beyond

1шт.

45

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Straight, Incl Ref. 46 and 47 11/16"-16 ORFS x 9/16"-18 ORB

2шт.

46

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

47

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
