Запчасти Case IH 5120 (8-02) - HYDRAULIC, OIL COOLER AND PIPES (08) - HYDRAULICS

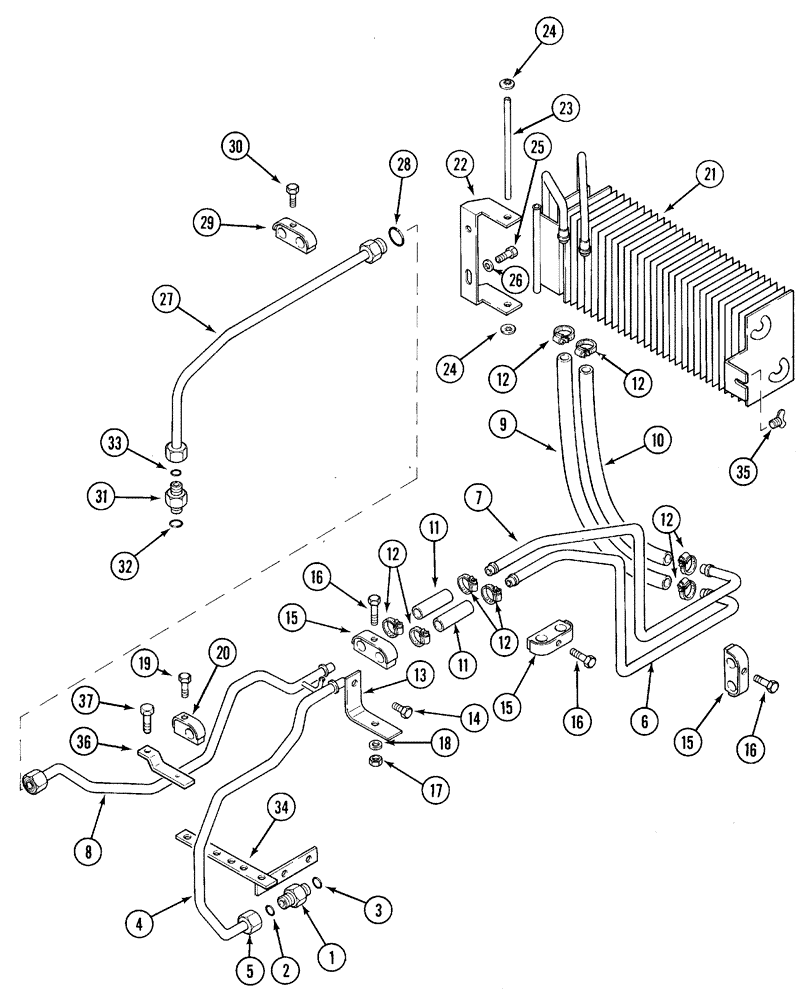

Схема запчастей Case IH 5120 - (8-02) - HYDRAULIC, OIL COOLER AND PIPES (08) - HYDRAULICS
1
10
12
31
24
15
18
35
32
17
6
36
34
22
19
8
25
12
9
5
14
20
29
33
26
16
24
7
12
15
27
28
16
12
11
11
2
15
23
21
30
13
16
12
3
4
37

Артикул

Название

Примечание

Количество

1

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

CONNECTOR, HYD., , Includes Ref. 2, 3 1"-14 ORFS x 7/8"-14 ORB

1шт.

2

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

T103992

PIPE,16 mm OD x 495, 540 mm L

TUBE - oil cooler, rear, Includes: Ref. 5

1шт.

5

203-903

TUBE NUT,1"-14 ORFS

NUT - hex, tube, 1-14 inch face seal

1шт.

6

1531117C1

HYD TUBE,16 mm OD, 842, 272 mm Length

TUBE - oil cooler, front

1шт.

7

1531118C1

HYD TUBE

TUBE - oil cooler return, front

1шт.

8

189480A1

HYD TUBE

TUBE - oil cooler return, rear

1шт.

9

1531843C1

HYDRAULIC HOSE

HOSE - 0.52m (Tractors Without Air Conditioning)

1шт.

9

1531845C1

HYDRAULIC HOSE

HOSE - 0.78m (Tractors With Air Conditioning)

1шт.

10

1531842C1

HYDRAULIC HOSE

HOSE - 0.46m (Tractors Without Air Conditioning)

1шт.

10

1531844C1

HYDRAULIC HOSE

HOSE - 0.70m (Tractors With Air conditioning)

1шт.

11

1531840C1

HYDRAULIC HOSE,15.9mm ID x 90mm L, SAE 100R3

HOSE - 0.09m

2шт.

12

905894R1

COLLAR,16mm - 27mm, Worm Gear

CLAMP - pipe

8шт.

13

T101941

BRACKET

- fitted to hood support

1шт.

14

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

1шт.

15

T102453

CLAMP

- pipe

3шт.

17

825-1406

NUT,M6, Cl 8

1шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

19

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

1шт.

20

T102969

CLAMP

- pipe

2шт.

21

A189071

COOLER, OIL

COOLER - oil

1шт.

21

A184952

COOLER, OIL

COOLER - oil (Tractors Without Air Conditioning)

1шт.

22

A189060

BRACKET

SUPPORT - hinge

1шт.

23

A184695

PIN

- hinge

1шт.

24

100-1531

SNAP RING,#31, Ext

Ring, Snap, #31, Ext

2шт.

25

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

3шт.

26

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 16 x 1.6 mm

3шт.

27

T102948

PIPE

- brake lube

1шт.

28

T102297

O-RING,1.78mm Thk x 15.6mm ID, 90 Duro

-

1шт.

29

T103149

CLAMP

- pipe, double

1шт.

30

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

1шт.

31

201-115

HYD CONNECTOR,1" - 14 Male ORFS x 3/4" - 16 Male ORB

CONNECTOR - straight, 1-14 face x 3/4-16 boss, Includes: Ref. 32 and 33

1шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

33

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

34

1534602C1

SUPPORT ASSY.

BRACKET - oil cooler pipes

1шт.

35

905855R1

SCREW,Wing, M8 x 12mm

BOLT - wing, 8 x 12 mm

1шт.

36

1533017C1

SUPPORT ASSY.

BRACKET - pipe, Start Serial: JJF1028850

1шт.

37

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

, Start Serial: JJF1028850

1шт.

16

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

3шт.
