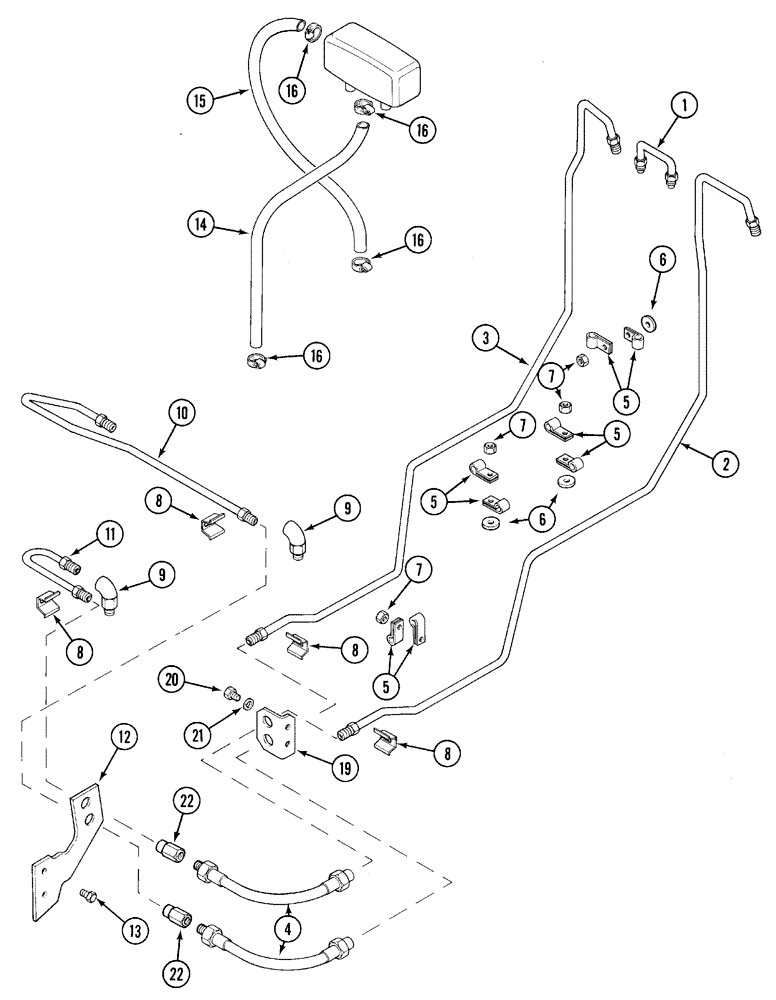

Запчасти Case IH 5120 (7-10) - BRAKE PIPING (07) - BRAKES

1

T102161

PIPE

- compensation

1шт.

2

1533097C1

PIPE

- brake, right

1шт.

3

1533098C1

PIPE

- brake, left

1шт.

4

1531935C1

HOSE

- brake

2шт.

5

3223090R1

CLAMP

- pipe

8шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

7

825-1406

NUT,M6, Cl 8

3шт.

8

3223091R1

CLAMP

- hose

4шт.

9

T100097

ELBOW

- adjustable

2шт.

10

T103769

PIPE

- brake, left

1шт.

11

T103770

PIPE

- brake, right

1шт.

12

T104194

BRACKET

- assembly, brake pipes

1шт.

13

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

2шт.

14

905903R1

HOSE

- brake feed, 0.82m

1шт.

15

T100065

HYDRAULIC HOSE

- Brake return, 0.80m

1шт.

16

905893R1

CLAMP,M12-23, Worm

- hose

4шт.

16

3125239R1

COLLAR

CLAMP - hose

4шт.

19

1533289C1

SUPPORT

BRACKET - brake pipe

1шт.

20

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm

2шт.

21

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

22

1531936C1

FITTING

UNION - brake pipe

2шт.
