Запчасти Case IH 5120 (7-06) - SERVICE BRAKE (07) - BRAKES

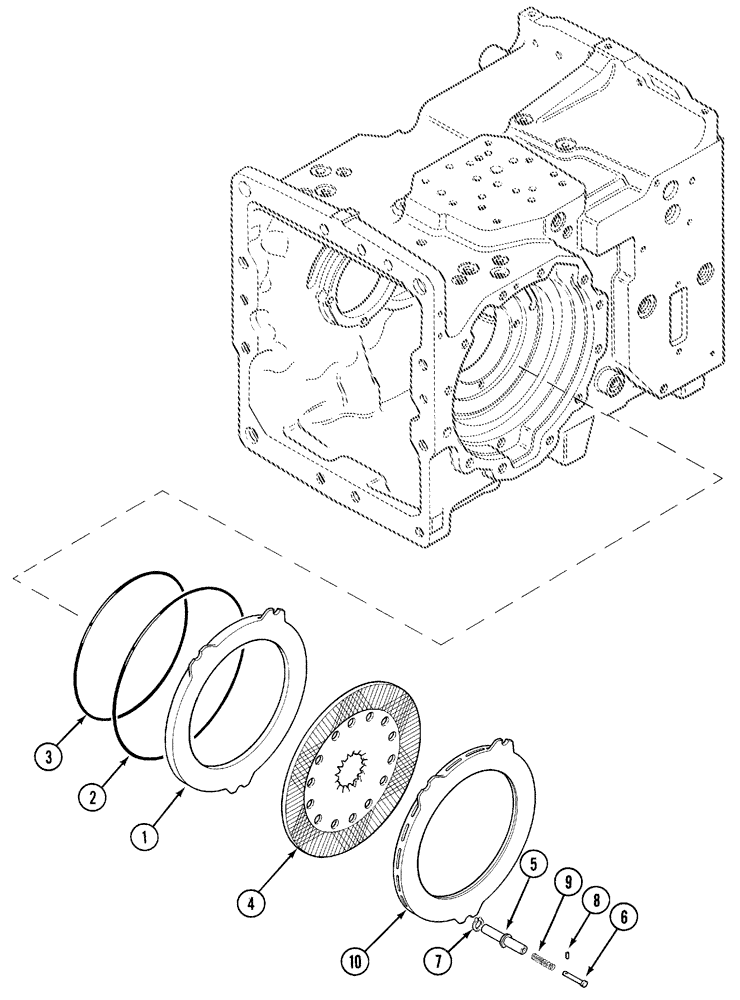

Схема запчастей Case IH 5120 - (7-06) - SERVICE BRAKE (07) - BRAKES
2
5
7
9
4
8
1
10
6
3

Артикул

Название

Примечание

Количество

1

123938A1

PISTON

- service brake

2шт.

When replacing old piston, also supply 1 Set of 223782A1 with each Piston.

1шт.

2

238-5277

O-RING,0.139" Thk x 11.484" ID, -277, Cl 5, 75 Duro

2шт.

3

238-5273

O-RING,0.139" Thk x 9.734" ID, -273, Cl 5, 75 Duro

2шт.

4

A190067

BRAKE DISC

PLATE - brake friction

2шт.

223782A1

DOWEL

TUBE - assembly, brake adjuster, Includes: Ref. 5 - 9

2шт.

This is a one tube assembly, does not come in a set of three

1шт.

5

NSS

NOT SOLD SEPARAT

TUBE - brake adjuster (Order 223782A1)

1шт.

6

NSS

NOT SOLD SEPARAT

PLUNGER - brake adjuster (Order 223782A1)

1шт.

7

100-1462

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

2шт.

8

1345860C1

SPLIT PIN/SAFETY PIN

PIN - brake adjuster

1шт.

9

NSS

NOT SOLD SEPARAT

SPRING - piston return (Order 223782A1)

1шт.

10

1995365C1

PLATE

- brake backing

2шт.

Выбрано товаров: 13
