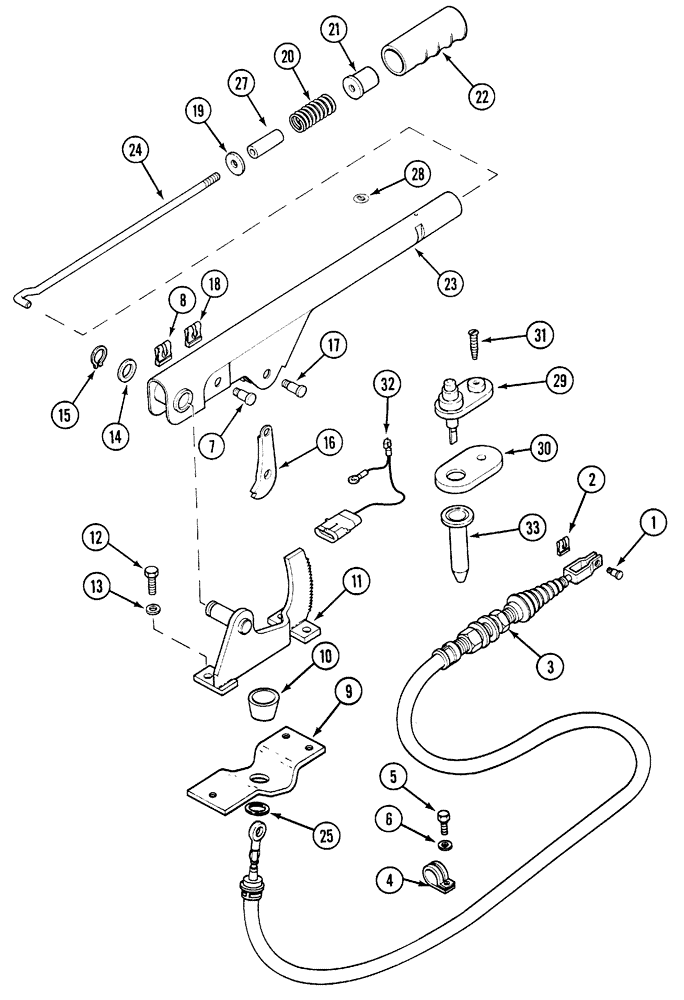

Запчасти Case IH 5120 (7-04) - PARKING BRAKE CONTROLS (07) - BRAKES

1

1531632C1

PIN

- cable attaching, class 10.9

1шт.

2

T102627

CLIP

- pivot retaining, , class 10.9

1шт.

3

1531948C1

BOWDEN CONTROL,1325mm L

CABLE - bowden, bowden

1шт.

4

T102613

MOUNTING CLIP

CLAMP - cable, class 10.9

1шт.

5

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

1шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

7

1531626C1

PIN

- handle pivot, x 1.6 mm

1шт.

8

T102626

CLIP

- handle pivot, x 1.6 mm

1шт.

9

1531624C1

BRACKET

- handbrake (Tractors with cab)

1шт.

10

1531625C1

GROMMET

- handbrake (Tractors with cab)

1шт.

11

1531433C1

RATCHET

LOCK - ratchet back

1шт.

12

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

3шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 16 x 1.6 mm

3шт.

14

905782R1

WASHER,M16 ID x 22 OD x 1 Thk

WASHER - 16 x 22 x 1 mm

1шт.

15

800-4816

SNAP RING,M16, Ext

RING - retaining

1шт.

16

1531631C1

RATCHET

- plate

1шт.

17

1531626C1

PIN

- handle pivot

1шт.

18

T102626

CLIP

- handle pivot

1шт.

19

3401150R1

WASHER

- flat

1шт.

20

1531363C1

SPRING

- compression

1шт.

21

3234635R1

BUTTON

- hand brake

1шт.

22

3234634R1

HANDLE

- plastic

1шт.

23

1531429C3

LEVER

- hand brake

1шт.

24

1531462C1

ROD

- handbrake

1шт.

25

T103307

WASHER

- cable (Tractors without cab)

1шт.

27

1531364C1

TUBE,6.5 mm ID, 12 mm OD, 40 mm Length

- handle

1шт.

28

1344282C1

DECAL

- handbrake

1шт.

29

1534229C1

PUSH BUTTON SWITCH

SWITCH - plunger, handbrake warning, Start Serial: JJF1015046

1шт.

113642A1

PACKAGE, REPAIR

KIT - park brake adapter, Includes: Ref. 29 - 32, Serial Range: -JJF1015045

1шт.

29

1534229C1

PUSH BUTTON SWITCH

SWITCH - plunger, handbrake warning, park brake

1шт.

30

182378A1

LARGE PLATE

PLATE - distance

1шт.

31

765-14322

SELF-TAP SCREW,Oval Hd, M4.2 x 22

SCREW - tapping, oval cross recess, 4.2 x 22 mm

1шт.

32

113640A1

CABLE

HARNESS - adapter, oil pressure switch

1шт.

33

1534251C1

BELLOWS

BELLOW - park brake switch

1шт.
