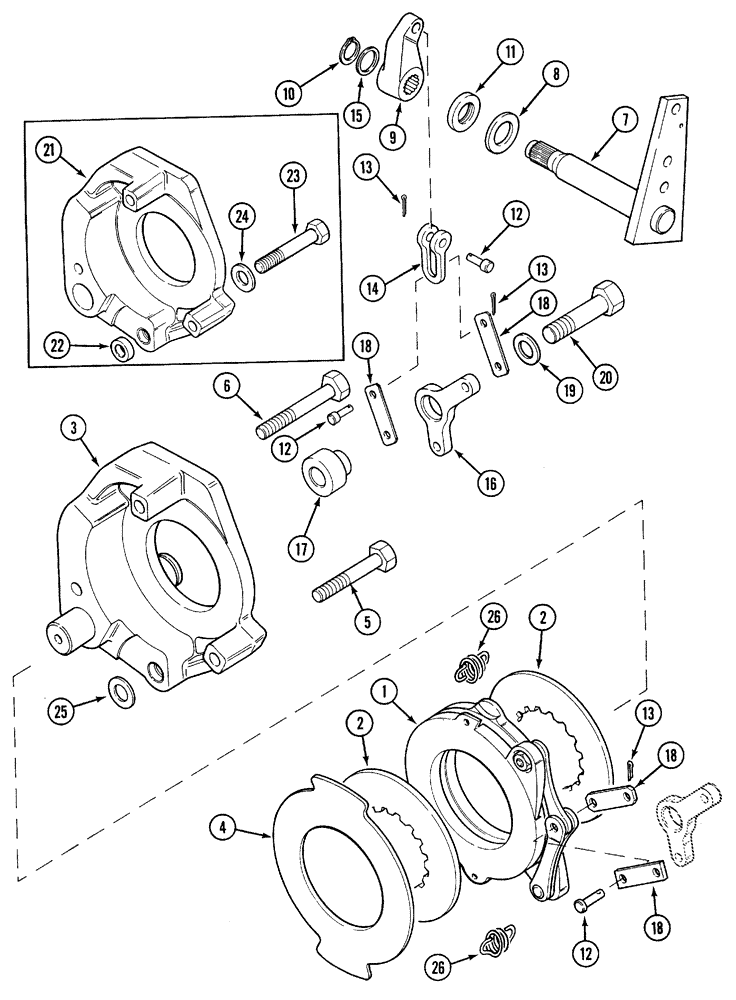

Запчасти Case IH 5120 (7-02) - PARKING BRAKE (07) - BRAKES

1

A158090

BRAKE ASSY.

BRAKE - actuator assembly

1шт.

2

1341170C1

BRAKE DISC

PLATE - friction

2шт.

3

1341197C2

HOUSING

- park brake (MFD tractors)

1шт.

4

1341163C3

PLATE

- wear

1шт.

5

828-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

- hex, 12 - 1.75 x 70 mm, class 10.9

1шт.

6

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

- hex, 12 - 1.75 x 90 mm

3шт.

7

A188092

SHAFT

- with lever

1шт.

8

A178359

WASHER

- bellcrank

1шт.

9

A190227

LEVER

- bellcrank pivot

1шт.

10

100-1168

SNAP RING,#68, Ext

Ring, Snap, #68, Ext

1шт.

11

A159379

OIL SEAL,20.19mm ID x 38.18mm OD x 6.35mm Thk

SEAL - pivot shaft

1шт.

12

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, 3/8" x 1 1/16"

5шт.

13

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

5шт.

14

A188668

CLEVIS COUPLING

CLEVIS - lever

1шт.

15

A190193

WASHER

- flat

1шт.

16

A188665

DIPPER

BELLCRANK - lever

1шт.

17

A188892

SPACER

- bellcrank

1шт.

18

A188100

DRAG LINK

LINK -, Serial Range: belcrank-brake

4шт.

19

96-81009

WASHER,11/16" x 1 1/2" x .134", HDN

1шт.

20

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

1шт.

21

1345868C1

HOUSING

- park brake (Non MFD tractors)

1шт.

22

1341269C1

SPACER

- park brake housing (Non MFD tractors)

1шт.

23

828-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

1шт.

23

828-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

- hex, 16 - 2.0 x 90 mm, class 10.9

2шт.

24

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

- flat, 17.5 x 30 x 4 mm, hardened

2шт.

25

1341198C1

SHIM

- 0.1 mm

1шт.

25

1341199C1

SHIM

- 0.15mm

1шт.

25

1345780C1

SHIM

- 0.50 mm thick

1шт.

26

1997140C1

SPRING

- return

2шт.
