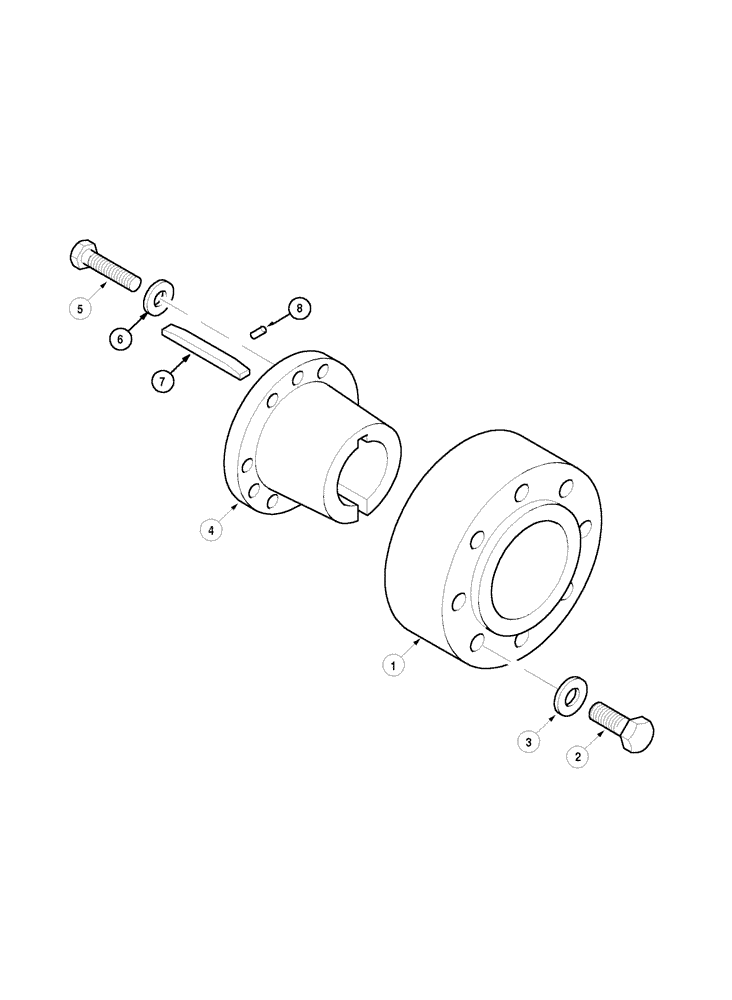

Запчасти Case IH 5120 (6-106) - WHEELS, CLAMPING DEVICE FOR BAR AXLE, CLAMP, HUB VERSION (06) - POWER TRAIN

1

241933A1

HUB

- rear wheel, for 3-1/2 or 4 inch bushing

2шт.

2

232974A2

BOLT

BOLT - hex head, 22 x 80 mm, Class 10,9

16шт.

3

232975A1

WASHER,24.25mm ID x 44mm OD x 6mm Thk

- flat, 22 x 44 x 6 mm

16шт.

4

250850A1

HUB

BUSHING - rear axle, 3-1/2 inch

2шт.

5

627-20110

BOLT,Hex, M20 x 2.5 x 110mm, Cl 10.9, Full Thd

12шт.

6

232579A1

WASHER,22.25mm ID x 38mm OD x 6mm Thk

- flat, 20 x 38 x 6 mm

12шт.

7

1530716C1

BUCKET TOOTH KEY

KEY - axle, 5/8 x 6 inch

2шт.

Ref 7 - description of 5/8 x 6" is incorrect. part is 5/8 X 5". previous# A34890 was 5/8 x 6", now subs to the shorter key. 5/2/02 BW CAM

1шт.

8

38-11608

LOCK PIN,1/4" x 1/2", Slotted

PIN, LOCK, 1/4" x 1/2", Slotted

2шт.
