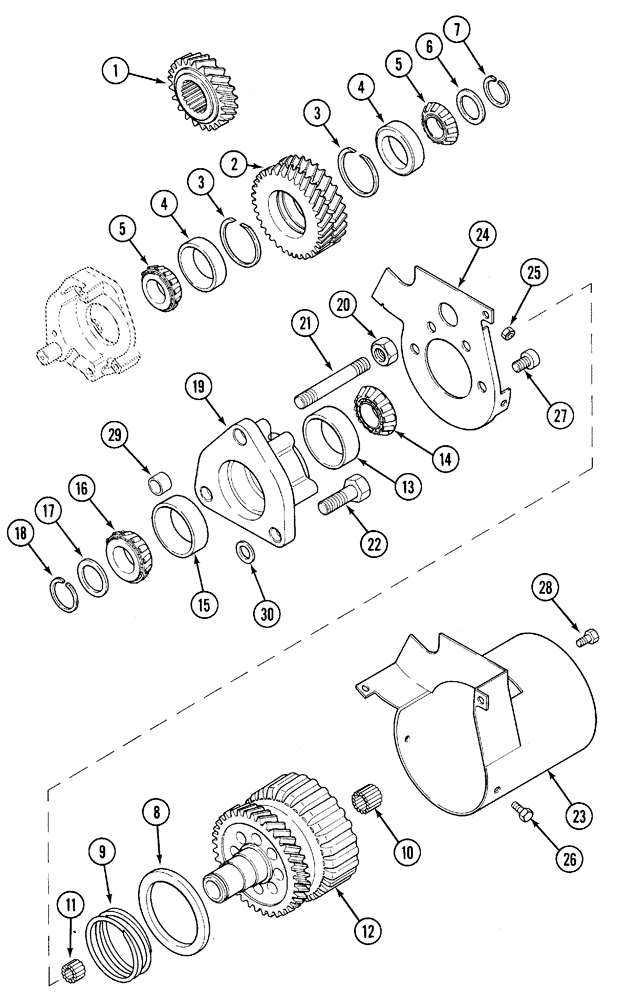

Запчасти Case IH 5120 (6-092) - MFD, DRIVE AND IDLER GEARS (06) - POWER TRAIN

1

1345750C2

PINION

GEAR - MFD drive, 22T, interaxle ratio : 1.2894

1шт.

When ordering Ref 1 and 2 they must be replaced as a pair if MXC prior to trans serial # JKA0475638, and MX 100/135 prior totrans serial # JKA0121002

1шт.

1

284538A1

PINION

GEAR - MFD drive, 24T, interaxle ratio : 1.4066

1шт.

1

1345752C1

PINION

GEAR - MFD drive, 23T, interaxle ratio : 1.2291

1шт.

2

1345960C1

SPROCKET ASSY.

GEAR - assembly, idler, 31T/32T, interaxle ratio : 1.2894

1шт.

2

284767A1

PINION

GEAR - assembly, idler, 31T/32T, interaxle ratio : 1.4066

1шт.

2

1345965C1

SPROCKET ASSY.

GEAR - assembly, idler, 34T/32T, interaxle ratio : 1.2291

1шт.

3

A188179

CIRCLIP

RING - retaining

2шт.

4

651817R1

BEARING CUP

CUP - tapered roller bearing

2шт.

5

A156625

ROLLER BEARING

BEARING - cone

2шт.

6

A178328

SHIM,31.95mm ID x 43mm OD x 0.36mm Thk

0.318mm Thk

1шт.

6

A178329

SHIM,31.95mm ID x 43mm OD x 0.46mm Thk

- .419 mm

1шт.

6

A178330

SHIM,31.95mm ID x 43mm OD x 0.64mm Thk

- .584 mm

1шт.

7

100-16125

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

1шт.

8

1345696C1

SEAL

- face, driven gear, Serial Range: -JKA54364

1шт.

8

1995123C1

SEAL,83.77mm ID x 107mm OD x mm Thk

- face, driven gear, Start Serial: JKA54365

1шт.

9

1345654C1

SPRING

- driven gear seal, Serial Range: -JKA54364

1шт.

10

K620066

NEEDLE BEARING

BEARING - needle

1шт.

11

A186418

NEEDLE BEARING,Needle, 20mm ID x 26mm OD x 16mm W

BEARING - needle

1шт.

12

1345719C1

SPROCKET ASSY.

GEAR - assembly, with clutch housing

1шт.

13

663558R1

BEARING CUP

CUP - tapered roller bearing, 2-57/64 inch OD

1шт.

14

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

BEARING - tapered roller, 1-5/8 inch ID

1шт.

15

17498D

TAPERED BEARING," ID x 76.2125 mm OD x 23.9135 mm

CUP - tapered roller bearing

1шт.

16

61063C91

ROLLER BEARING,38.11mm ID x 25.57mm W

BEARING - cone

1шт.

17

A188199

SHIM,38.6mm ID x 48.6mm OD x 0.05mm Thk

(0.002") 0.051mm Thk

1шт.

17

A188200

SHIM,38.6mm ID x 48.6mm OD x 0.13mm Thk

(0.005") 0.127mm Thk

1шт.

17

A188201

SHIM,38.6mm ID x 48.6mm OD x 0.2mm Thk

(0.008") 0.203mm Thk

1шт.

17

1995014C1

SHIM

- 0.02 inch

1шт.

18

100-16150

SNAP RING,#150, Ext

Ring, Snap, #150, Ext

1шт.

19

1995126C1

BEARING CARRIER,64 mm ID x 86.25 mm OD x 74 mm

CARRIER - MFD bearing

1шт.

20

829-1316

NUT,M16, Cl 10

- hex, 16 mm - 2.0

1шт.

21

1341169C1

STUD

- 16 mm x 105mm

1шт.

22

826-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

2шт.

23

1997141C1

PROTECTOR

SHIELD - assembly, front

1шт.

24

1345598C1

GUARD ASSY.

SHIELD - assembly, rear, Includes: Ref. 25

1шт.

25

NSS

NOT SOLD SEPARAT

NUT - weld, 6 mm

3шт.

26

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

3шт.

27

864-10020

HEX SOC SCREW,M10 x 20mm, Cl 8.8

BOLT - hex socket, 10 - 1.5 x 20 mm, Cl 8.8

4шт.

28

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 12 mm

1шт.

29

1341167C1

SLEEVE

- dowel

1шт.

30

1341198C1

SHIM

- 0.1 mm

1шт.

30

1341199C1

SHIM

- 0.15mm

1шт.

30

1345780C1

SHIM

- 0.50 mm thick

1шт.
