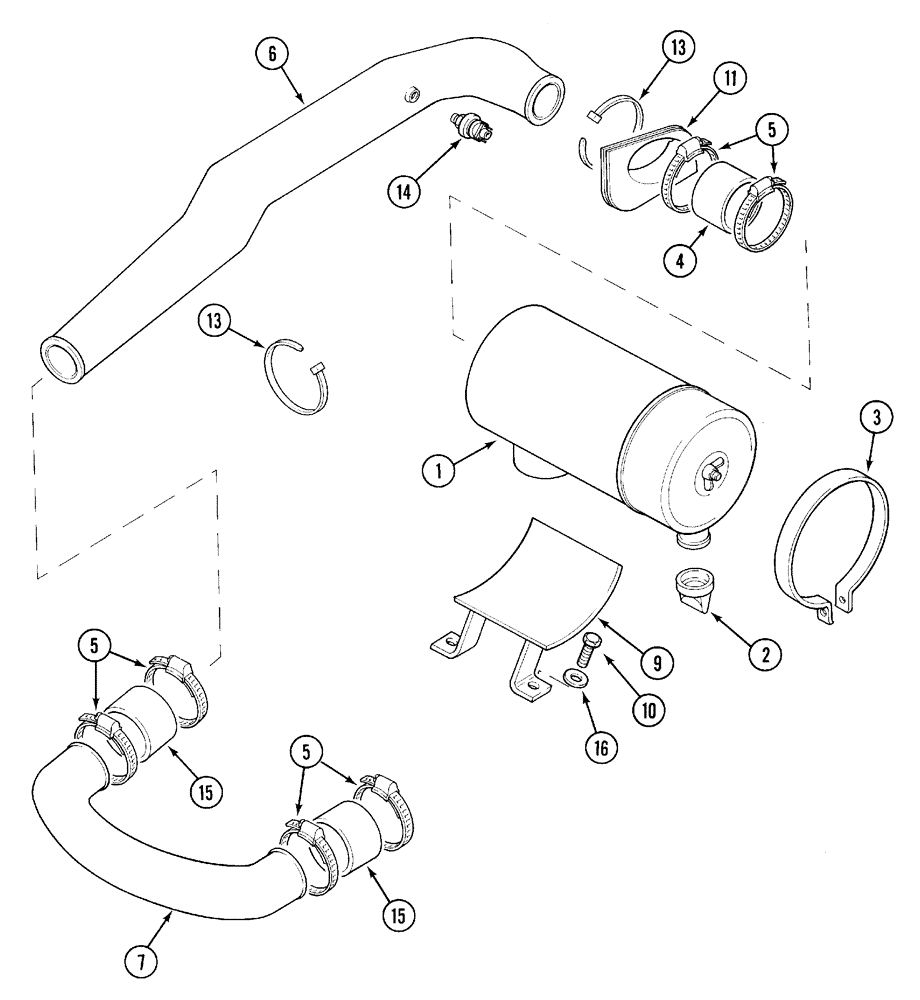

Запчасти Case IH 5120 (2-04) - AIR CLEANER AND CONNECTIONS (02) - ENGINE

1

REF

INSTRUCTION

CLEANER air see Figure 2-6

1шт.

2

A189052

DUST VALVE

VALVE dust, rubber, 2" (51 mm)

1шт.

3

T103239

STRAP

BAND air cleaner mounting

1шт.

4

1533407C1

HOSE

cupling

1шт.

5

3219245R1

CLAMP,M70-90, Worm

hose

6шт.

6

1530738C2

LARGE HOSE

PIPE air inlet, front

1шт.

7

1530734C2

LARGE HOSE

PIPE air inlet, rear

1шт.

9

1533565C2

SUPPORT ASSY.

SUPPORT assembly, air cleaner

1шт.

10

614-8018

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 18 mm

2шт.

11

1531506C3

SEAL

SEAL air inlet pipe

1шт.

13

3402979R2

BAND

STRAP cable tie

2шт.

14

292950A1

SWITCH

restriction, air cleaner

1шт.

15

1533378C1

HOSE

coupling

2шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 16 x 1.6 mm

2шт.
