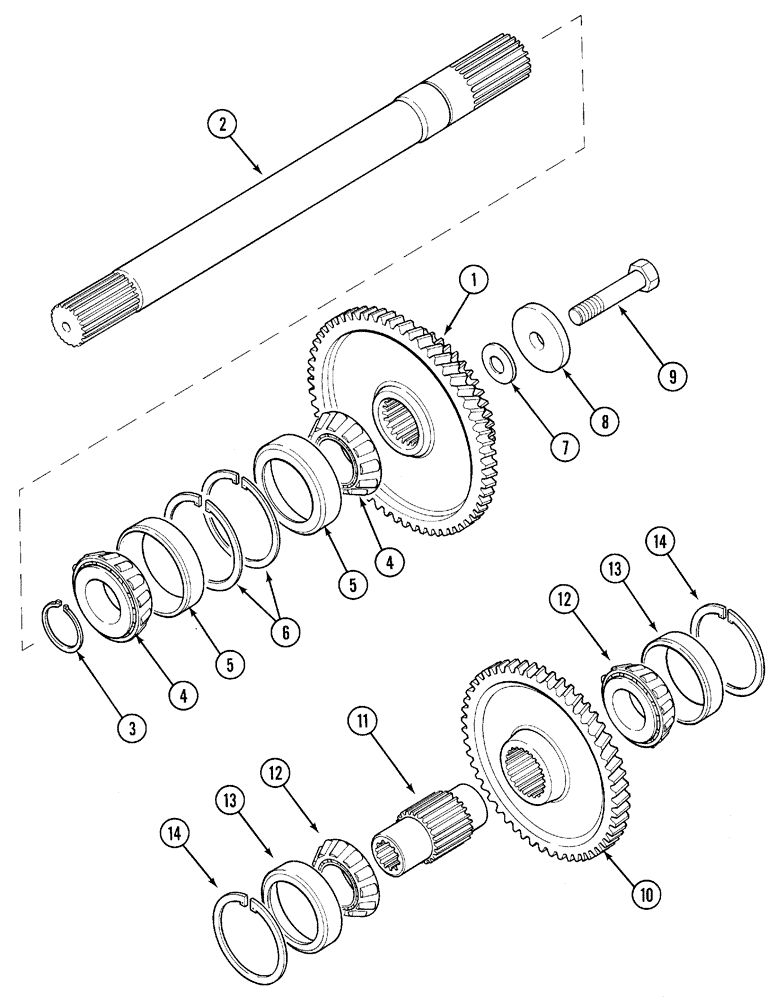

Запчасти Case IH 5120 (6-074) - PTO AND OIL PUMP DRIVE (06) - POWER TRAIN

1

1995383C1

PINION

GEAR - PTO drive

1шт.

2

1341086C1

SHAFT

- PTO drive, front

1шт.

3

100-11137

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

1шт.

Ref 3, 100-11137 snap ring is .050" thick. When 1341086C1 shaft subs to 1341086C2, they widened the snap ring groove. The C2 shaft should use 100-16137 per werds. It is .093" thick.

1шт.

4

H753509

ROLLER BEARING,34.92mm ID x 21.08mm W

BEARING - cone

2шт.

5

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Tapered roller

2шт.

6

100-21256

SNAP RING,2.562", Int, #256

Ring, Snap, 2.562", Int, #256

2шт.

7

A158879

SHIM,13mm ID x 30mm OD x 0.08mm Thk

1шт.

7

A158880

SHIM,13mm ID x 30mm OD x 0.31mm Thk

1шт.

7

A158881

SHIM,1.016mm Thk

1шт.

8

A75206

WASHER,13.5mm ID x 50.8mm OD x 9.53mm Thk

- hardened

1шт.

9

828-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

- hex, 12 - 1.75 x 60 mm

1шт.

10

A183807

GEAR

- pump drive

1шт.

11

A183476

SHAFT

- pump drive

1шт.

12

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING - tapered roller

2шт.

13

651817R1

BEARING CUP

CUP - tapered roller bearing

2шт.

14

A175867

CIRCLIP

RING - snap, 2.0 mm

2шт.

14

A178626

RING, SNAP

RING - snap, 1.7 mm

2шт.

14

A178627

RING, SNAP

RING - snap, 1.5 mm

2шт.
