Запчасти Case IH 5120 (6-062) - TRANSMISSION, FORWARD, NEUTRAL, REVERSE SHUTTLE VALVE (06) - POWER TRAIN

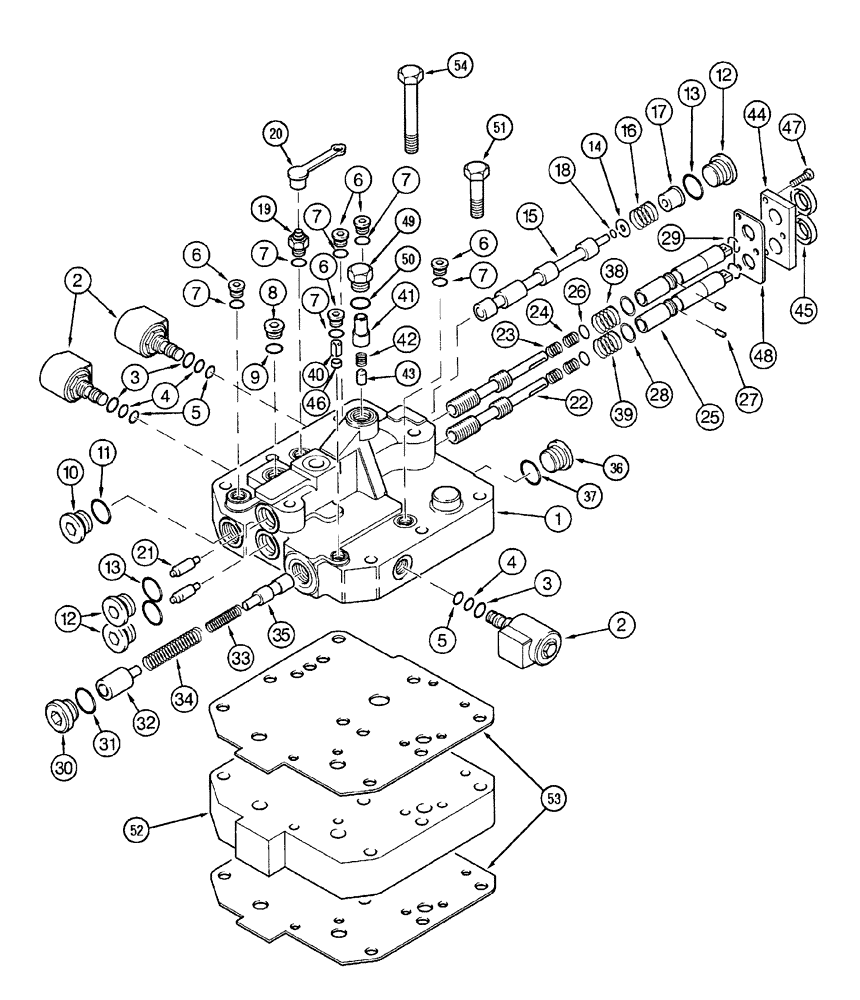

Схема запчастей Case IH 5120 - (6-062) - TRANSMISSION, FORWARD, NEUTRAL, REVERSE SHUTTLE VALVE (06) - POWER TRAIN
28
13
6
13
53
7
48
37
22
14
18
4
49
38
12
31
1
5
6
27
21
7
54
35
15
9
7
44
46
43
50
6
20
34
17
16
41
30
42
52
4
25
24
36
47
40
3
8
7
19
10
26
7
33
6
11
29
2
3
51
23
7
5
39
32
2
12
45

Артикул

Название

Примечание

Количество

110382A4

VALVE

- assembly, forward/neutral/reverse shuttle, Includes: Ref. 1 - 37

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - shuttle valve

1шт.

2

110415A1

SOLENOID

VALVE ASSEMBLY - solenoid, 12 volt, Includes: Ref. 3 - 5

3шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk

1шт.

5

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

6

9672438

PLUG,7/16" - 20 ORB

Incl. Ref. 7 Hex Hd, 7/16"-20 ORB

6шт.

7

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

8

76349

PLUG,9/16" - 18 ORB

Incl. Ref 9 Hex Hd, 9/16"-18 ORB

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

10

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 11 Hex Soc, 3/4"-16 ORB

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

12

86625138

PLUG,7/18" - 14

Includes Ref. 13 Hex Soc, 7/8"-14 ORB

3шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

112984A2

SPOOL

ASSEMBLY - forward/reverse, Includes: Ref. 14 - 18

1шт.

14

110414A2

WASHER

- spring retaining

1шт.

15

110410A1

SPOOL

- forward and reverse

1шт.

16

196853A1

VALVE SPRING

SPRING - centering

1шт.

17

110412A2

RING, LOCKING

RETAINER - spring

1шт.

18

130678A1

RING, SNAP

RING - retaining

1шт.

19

141393A1

FITTING

COUPLER - diagnostic, Includes: Ref. 20

1шт.

20

143349A1

DUST CAP

CAP - dust

1шт.

193886A1

SPOOL

ASSEMBLY - inching/PTO, Includes: Ref. 21 - 29

2шт.

Part of shuttle/PTO valve kit P/N 183367A2

1шт.

21

132558A1

PIN

- reducing

1шт.

22

143800A1

SPOOL

- inching/PTO

1шт.

23

NSS

NOT SOLD SEPARAT

SPRING - feathering Lo-psi, Serial Range: -JKA89261

1шт.

23

193884A1

SPRING

- feathering, Lo-psi, Start Serial: JKA89262

1шт.

24

NSS

NOT SOLD SEPARAT

SPRING - feathering Hi-psi, Serial Range: -JKA89261

1шт.

24

193885A1

SPRING

- feathering, Hi-psi, Start Serial: JKA89262

1шт.

25

143799A2

ROD

- inching/PTO

1шт.

26

176387A1

CIRCLIP,12.25mm

RING - retaining

1шт.

27

121857A1

PIN,3.1mm x 11.5mm

- reducing

1шт.

28

110397A1

WASHER

- inch/PTO

1шт.

29

100-1862

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

1шт.

30

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 31 Hex Soc, 1 1/16"-12 ORB

1шт.

31

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

32

110384A1

PISTON

- modulator

1шт.

33

110386A2

VALVE SPRING,13.18mm

SPRING - modulator inner

1шт.

34

110385A1

VALVE SPRING

SPRING - modulator outer

1шт.

35

110387A3

SPOOL

- modulator

1шт.

Part of shuttle/PTO valve kit P/N 183367A2

1шт.

36

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 37 Hex Soc, 3/4"-16 ORB

1шт.

37

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

110382A4

VALVE

- assembly, forward/neutral/reverse shuttle, Includes: Ref. 38 - 54

1шт.

38

110404A1

VALVE SPRING

SPRING - return/PTO

1шт.

39

110392A1

VALVE SPRING,20.57mm OD

SPRING - return/inching

1шт.

40

838-4814

LOCK PIN,M8 x 14, Slotted

PIN - roll, 8 x 14 mm (Use with 110382A3)

1шт.

40

838-4816

COTTER PIN,M8 x 16, Slotted

PIN - roll, 8 x 16 mm (Use with 110382A4)

1шт.

41

142703A2

PISTON

- PTO detent

1шт.

Part of shuttle/PTO valve kit P/N 183367A2

1шт.

42

142704A1

VALVE SPRING

SPRING - inner

1шт.

Part of shuttle/PTO valve kit P/N 183367A2

1шт.

43

110405A1

VALVE POPPET

POPPET - PTO detent

1шт.

112694A1

COVER ASSY

COVER - inching/PTO spool, Includes: Ref. 44 and 45

1шт.

44

112692A1

COVER

PLATE - inching/PTO

1шт.

45

A63399

OIL SEAL,15.87mm ID x 28.73mm OD x 6.35mm Thk

- oil, spool

2шт.

46

112922A1

PLUG

ORIFICE - cup plug

1шт.

47

864-6016

HEX SOC SCREW,M6 x 16mm, Cl 8.8

SCREW, Hex Soc Hd, M6 x 16, 8.8

3шт.

48

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

-021, 70 Duro, .926" ID x .070" Thk, Serial Range: -JKA74445

2шт.

48

144184A1

GASKET

- shuttle/PTO, Start Serial: JKA74446

2шт.

49

71100209

PLUG,Hex Soc, 3/4"-16 ORB

, Start Serial: JKA74446

1шт.

Part of shuttle/PTO valve kit P/N 183367A2

1шт.

50

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Start Serial: JKA74446

1шт.

Part of shuttle/PTO valve kit P/N 183367A2

1шт.

49

142702A1

PLUG

- PTO, Serial Range: -JKA74445

1шт.

50

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

51

828-10095

BOLT,Hex, M10 x 1.5 x 95mm, Cl 10.9

- hex, 10 1.5 x 95 mm

6шт.

52

121074A1

VALVE BLOCK

BLOCK - riser

1шт.

53

A188208

GASKET

-, Serial Range: valve-housing

2шт.

54

828-10125

BOLT,Hex, M10 x 1.5 x 125mm, Cl 10.9

- hex, 10 1.5 x 125 mm

2шт.

183367A2

PACKAGE, REPAIR

KIT - shuttle/PTO valve, Includes: Ref. P/N 193886A1 spool assembly, 35, 41, 42, 49 and 50

1шт.

Выбрано товаров: 72
