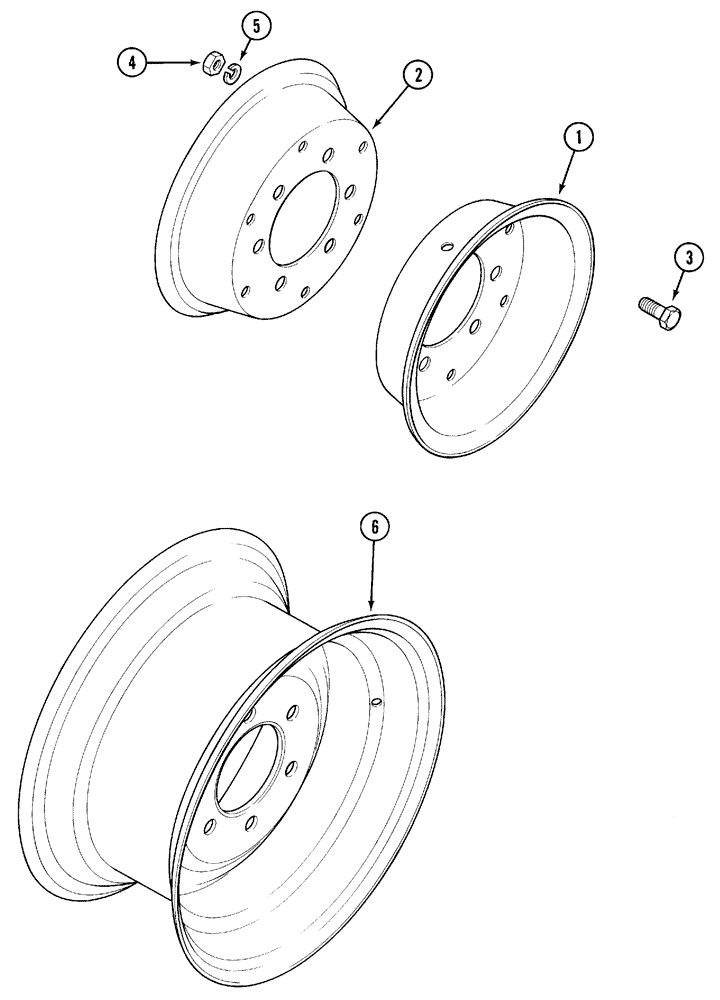

Запчасти Case IH 5120 (5-40) - WHEELS, FRONT, NON ADJUSTABLE (05) - STEERING

NSS

NOT SOLD SEPARAT

WHEEL - front 5.50F x 10 (For 9.00 x 10SP 8PR Tires), Includes: Ref. 1 - 5

2шт.

1

1531020C2

RIM

/DISC - outside

1шт.

2

1531021C1

RIM

/DISC - inside

1шт.

3

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm

6шт.

4

825-1112

NUT,M12, Cl 8

- hex, 12 mm - 1.75

6шт.

5

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

6шт.

6

1531022C1

WHEEL

- front, 8LB x 15 for 15 inch tires

2шт.

6

1531024C2

RIM

WHEEL - front, 8L x 16

2шт.

6

1531023C1

WHEEL

- front, 5.50F x 16 (For 7.50-16 6PR Tires)

2шт.

6

1531025C1

WHEEL

- front, 5.50F x 18 (For 7.50-18 6PR Tires)

2шт.

6

1531026C1

WHEEL

- front, 5.50F x 20 (For 7.50-20 8PR Tires)

2шт.

6

1531514C1

WHEEL

- front, W10L x 16 (For 16 inch tires)

2шт.
