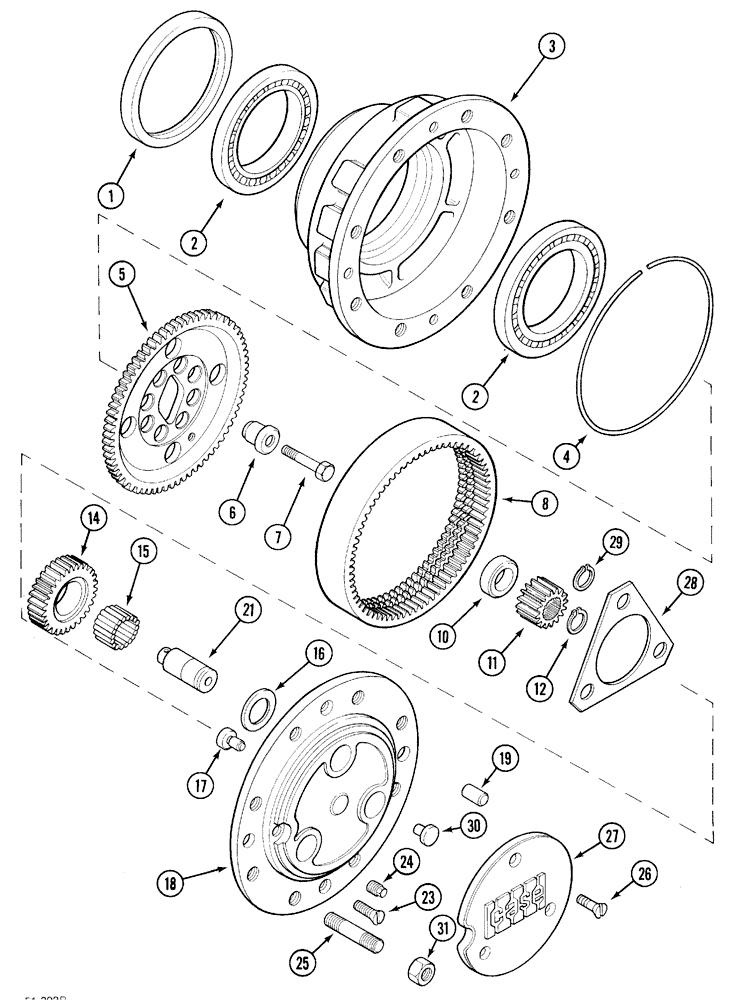

Запчасти Case IH 5120 (5-38) - MFD FRONT AXLE PLANETARIES AND HUB, 709 STD (05) - STEERING

1

1349265C1

OIL SEAL,149mm ID x 176mm OD x 16mm Thk

- oil, 149 x 176 x 16

2шт.

2

K395101

TAPERED BEARING,109.5mm ID x 126mm x 21.4mm L

BEARING - taper roller

4шт.

3

K395123

HUB

- front

2шт.

4

K395095

CIRCLIP

RING - snap (709Std Axle - C5P/117)

4шт.

4

H437679

RING, SNAP

RING - locking (709Std Axle C5P/118 - )

4шт.

5

K395126

WHEEL

GEAR - support (709Std Axle - C5P/117)

2шт.

5

H437678

RING, FLYWHEEL

GEAR - support (709Std Axle C5P/118 - )

2шт.

6

107071A1

BUSHING

- Centering, 20 mm OD

12шт.

6

107072A1

CENTERING RING

BUSHING - centering, 24 mm OD

4шт.

7

K395131

BOLT,Hex, M14 x 1.5 x 65mm, Cl 10.9

BOLT, , Self-locking Hex, M14 x 65, Cl 10.9

12шт.

8

H437677

GEAR, RING

GEAR - internal-tooth (709Std Axle C5P/118 - )

2шт.

10

107073A1

WASHER,30mm ID x 49mm OD x 15mm H

SPACER - pinion gear

2шт.

Item #10: If looking for a tabbed washer (shown in service manual) that fits between Items #5 and #10, part number is K395115. However, spacer 107073A1, item #10, combines the spacer and tabbed washer. Install Item #10, no need for the tabbed washer. 05Sep01 CJK-TSG

1шт.

11

K395114

GEAR

- sun

2шт.

12

K261897

RING, SNAP

RING - snap

2шт.

14

K395110

GEAR

- planet

6шт.

15

119685A1

NEEDLE BEARING

NEEDLE - bearing

180шт.

81885C1

PINION CARRIER

COVER ASSEMBLY - planetary, Includes: Ref. 16 - 21

2шт.

16

K395091

THRUST WASHER

WASHER, THRUST

6шт.

17

K395093

HEADED PIN,12mm OD x 15mm L

BUTTON - thrust

2шт.

18

NSS

NOT SOLD SEPARAT

COVER - planetary

2шт.

19

K395094

DOWEL,M18 x 36

Hub cover M18 x 36

4шт.

21

NSS

NOT SOLD SEPARAT

SHAFT -

6шт.

23

K395029

SCREW

- 12 x 30 mm

4шт.

24

A156873

PLUG, DRAIN,M22 x 1.5

2шт.

25

1349196C1

STUD

BOLT - stud

12шт.

25

1349195C1

STUD

BOLT - stud, with collar

4шт.

26

905876R1

HEX SOC SCREW,Flat Hd, CSK, M8 x 20mm, Cl 10.9

6шт.

27

K395135

COVER

PLATE - hub cover (If so equipped)

2шт.

28

K395122

PLATE

- thrust

2шт.

29

800-1134

SNAP RING,M34, Ext

RING, SNAP, , Retaining M34, Ext

6шт.

30

112624A1

PLASTIC PLUG

PLUG - plastic, 8 mm

6шт.

31

98783C1

WHEEL NUT,Wheel, Flg, M20 x 1.5

12шт.
