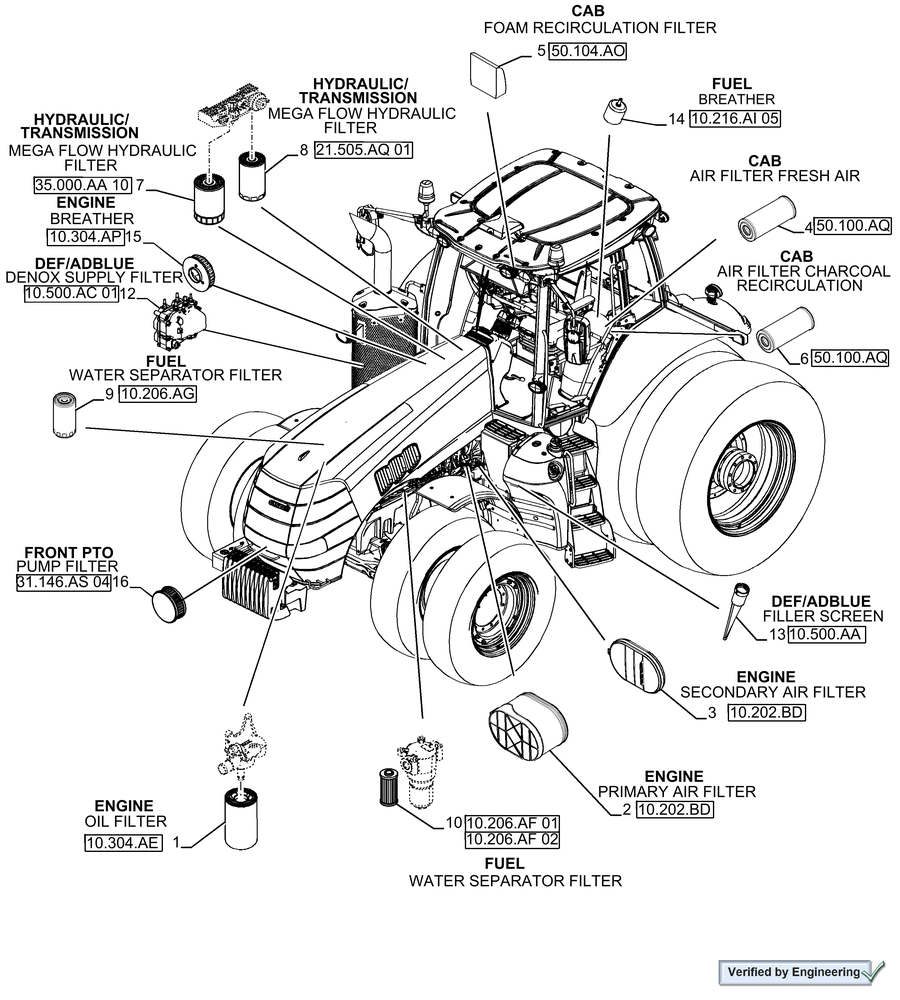

Запчасти Case IH MAGNUM 380 (05.100.03[03]) - FILTERS, CVT TIER 4B (05) - SERVICE & MAINTENANCE

1

504179764

ENGINE OIL FILTER

Replace Every 600 Hours

1шт.

2

84191182

AIR FILTER,398mm L x 261mm W x 237mm Thk, Paper

Primary, Replace Every 1200 Hours

1шт.

3

87356547

AIR FILTER

Secondary, Replace every 1200 Hours

1шт.

4

87684088

CAB FILTER,CAB

Replace Every 400 Hours

1шт.

5

293615A1

FILTER

Replace Every 400 Hours

2шт.

6

87267363

AIR FILTER,Cab Charcoal Recirculation

Replace Every 400 Hours

1шт.

7

84240234

HYDRAULIC OIL FILTER,Spin on, 14.48"

(367.9 mm), CVT, Charge/Lube, Replace Every 1500 Hours

1шт.

8

84202794

HYDRAULIC OIL FILTER,Spin On, 9.41"

(239 mm) Replace Every 1500 Hours

1шт.

9

5801439820

FUEL FILTER

Fuel Filter, Engine Mounted, Replace Every 600 Hours

1шт.

10

84348882

FUEL FILTER,97mm OD x 184mm L, M16 x 1.5, 30 Microns

Standard, Replace Every 600 Hours

1шт.

11

84283691

FUEL FILTER

Severe Duty, Replace Every 600 Hours

1шт.

12

47364243

FILTER

Kit, DENOX2.2 Supply Module Replace Every 3600 Hours

1шт.

13

47680524

FILTER, DEF,100 Micron

DEF Fill, 100 Micron Replace as Required

1шт.

14

87433010

BREATHER

Fuel Tank, Replace as Required

1шт.

15

5801659560

FILTER

Engine Breather, Replace Every 1500 Hours

1шт.

16

47433185

FILTER

FPTO Pump Filter

1шт.

17

47999486

FILTER

DEF Tank Pickup

1шт.
