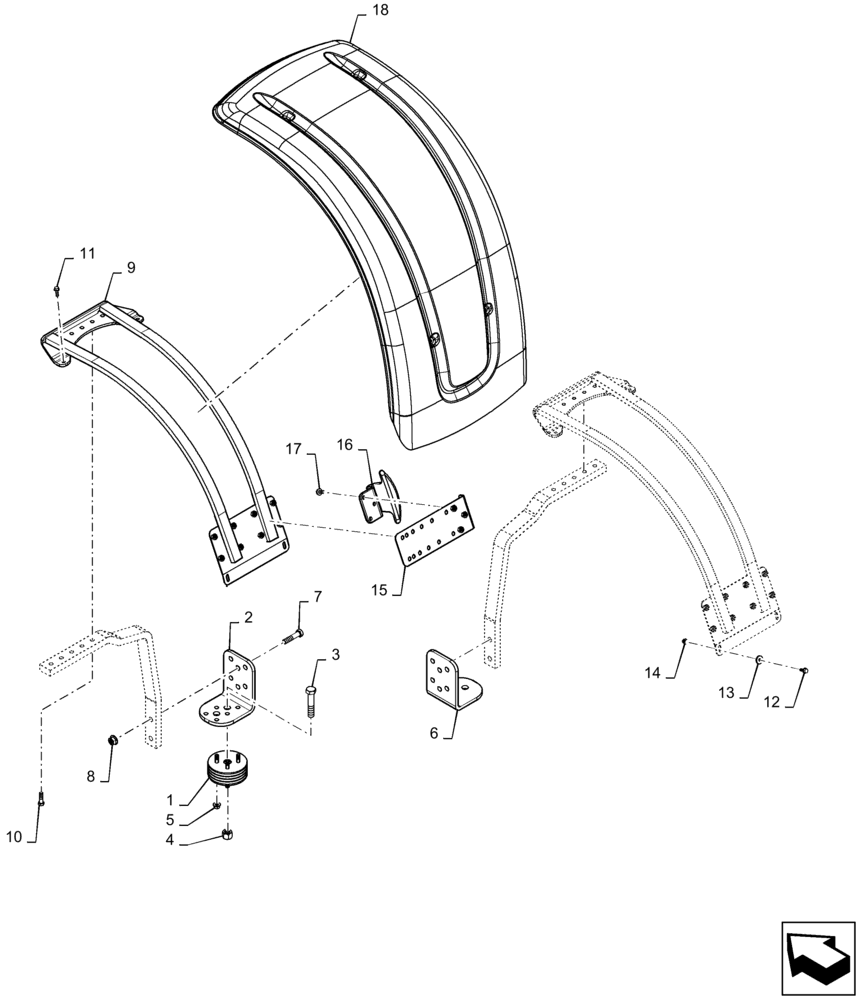

Запчасти Case IH MAGNUM 380 (90.116.BA[01]) - FENDER, MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

226690A2

RUBBER BUMPER

Isolator, Fender Mount

2шт.

2

84546385

SUPPORT

Upper LH

2шт.

3

827-20100

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

2шт.

4

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

5

825-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 8

16шт.

6

84546384

SUPPORT

Upper RH

2шт.

7

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

4шт.

8

825-51416

FLANGE NUT,Flg, M16, Serr

4шт.

9

47465883

FRAME

Front Fender

2шт.

10

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

6шт.

11

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

12

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

13

140041

WASHER,M8 x 28mm OD x 3mm Thk

8шт.

14

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

8шт.

15

84546386

PLATE

Bumper Bar, Fender

2шт.

16

84546378

BUMPER

Fender

2шт.

17

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

14шт.

18

47451721

FENDER

Front

2шт.
