Запчасти Case IH MAGNUM 380 (31.114.AT[03]) - VAR - 420603 - PTO ASSY REDUCTION GEAR, DUAL SPEED, HD CLUTCH (31) - IMPLEMENT POWER TAKE OFF

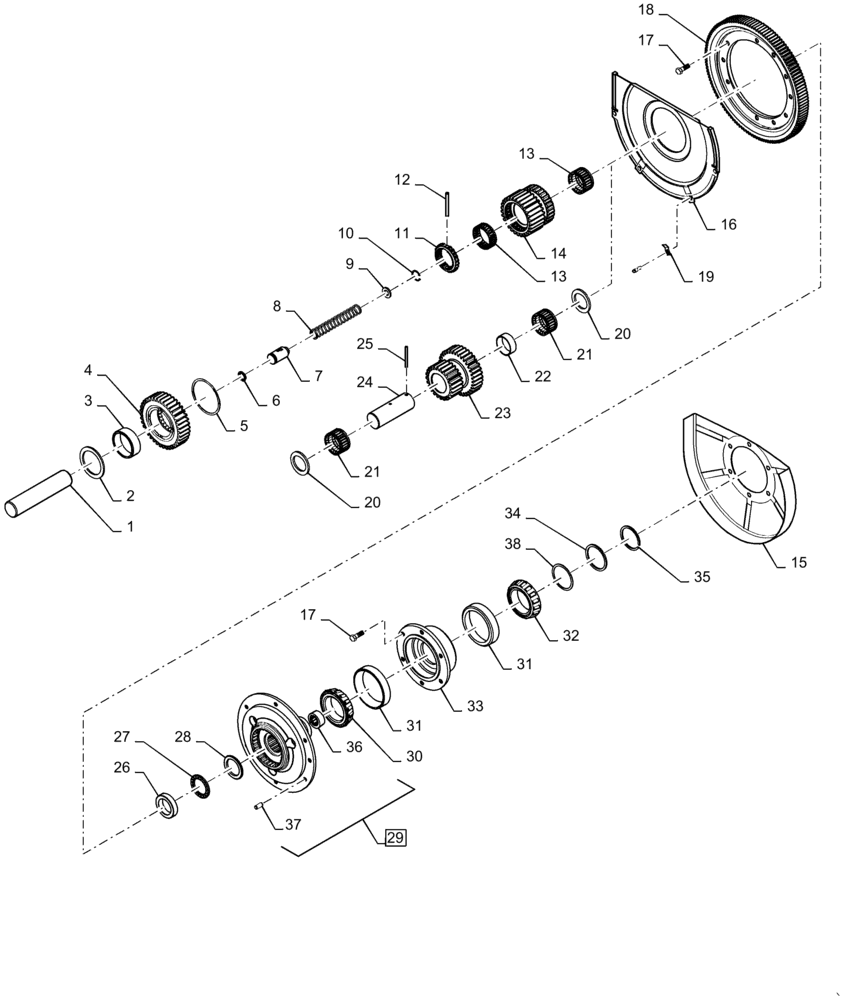

Схема запчастей Case IH MAGNUM 380 - (31.114.AT[03]) - VAR - 420603 - PTO ASSY REDUCTION GEAR, DUAL SPEED, HD CLUTCH (31) - IMPLEMENT POWER TAKE OFF
27
3
15
18
33
21
17
2
4
8
12
13
19
13
10
26
6
21
7
11
9
16
20
22
31
14
17
25
34
28
36
23
5
35
20
31
37
1
32
24
30
29
38

Артикул

Название

Примечание

Количество

1

84521978

SHAFT

HD Dual Speed PTO 130.00mm Length

1шт.

2

226024A3

THRUST WASHER,70.43mm ID x 88mm OD x 3.13mm Thk

44.90mm ID x 65.00mm OD x 3.125mm Thick

1шт.

3

318641A1

BEARING ASSY,69.99mm ID x 78.02mm OD x 24.63mm W

1шт.

4

326733A1

PINION

Output Driven 38T

1шт.

5

102-22318

SNAP RING,#318, 3.311, Int, Spiral

1шт.

6

226029A1

O-RING,21.82mm ID x 28.88mm OD x 3.53mm Thk

21.81mm ID

1шт.

7

226028A2

PISTON

Shift

1шт.

8

323066A1

SPRING

Piston Return

1шт.

9

295066A1

SPRING WASHER

15.00mm ID x 28.35mm OD x 3.45mm Thick

1шт.

10

100-21112

SNAP RING,1.125", Int, #112

1шт.

11

226031A2

GEAR,37T Internal / 24T External

37 T

1шт.

12

38-32044

PIN,5/16" x 2 3/4", Coiled

1шт.

13

330162A1

NEEDLE BEARING,50.79mm ID x 60.34mm OD x 25.21mm W

50.79mm ID x 60.34mm x 25.21mm Thick

2шт.

14

326731A1

GEAR

Output 29T

1шт.

15

198709A1

PROTECTION PLATE

Driven Gear Oil

1шт.

16

225810A1

COVER

Oil Shield

1шт.

17

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

12шт.

18

408252A1

RING GEAR

121 T

1шт.

19

139327C1

CLIP

Spring Steel

4шт.

20

226035A1

THRUST WASHER

44.90mm ID x 65.00mm OD x 3.125mm Thick

2шт.

21

138763C91

NEEDLE BEARING,44.44mm ID x 54mm OD x 38.1mm W

2шт.

22

300084A1

SPACER,49.8mm ID x 53.78mm OD x 18.93mm L

49.80mm ID x 53.78mm OD x 18.93mm Thick

1шт.

23

226033A3

PINION

Output Cluster 34/24T

1шт.

24

226034A2

SHAFT

130.00mm Length

1шт.

25

38-21240

PIN,3/16" x 2 1/2", Coiled

1шт.

26

327172A1

SPACER

45.03mm ID x 59.50mm OD x 11.00mm Thick

1шт.

27

243544A1

NEEDLE BEARING,45.17mm ID x 64.43mm OD x 6mm W

1шт.

28

327372A1

THRUST WASHER

45.17mm ID x 64.51mm OD x 3.95mm Thick

2шт.

29

277389A2

HUB ASSY.

Incl 36 - 37

1шт.

30

25695HO

ROLLER BEARING,66.688mm ID x 30.124mm

1шт.

31

22396V

BEARING, CUP,112.739mm OD x 30.37mm W

2шт.

32

235545A1

TAPERED BEARING,63.51mm ID x 29.96mm W

1шт.

33

225806A1

CAGE

Driven Gear Bearing

1шт.

34

231772A1

SPACER

63.64mm ID x 74.00mm OD x 3.12mm Thick

1шт.

35

231760A1

SNAP RING

External

1шт.

36

359950R91

NEEDLE BEARING

1шт.

37

837-10030

DOWEL,M10 x 30

1шт.

38

253456A1

SHIM

Kit

1шт.

Выбрано товаров: 38
