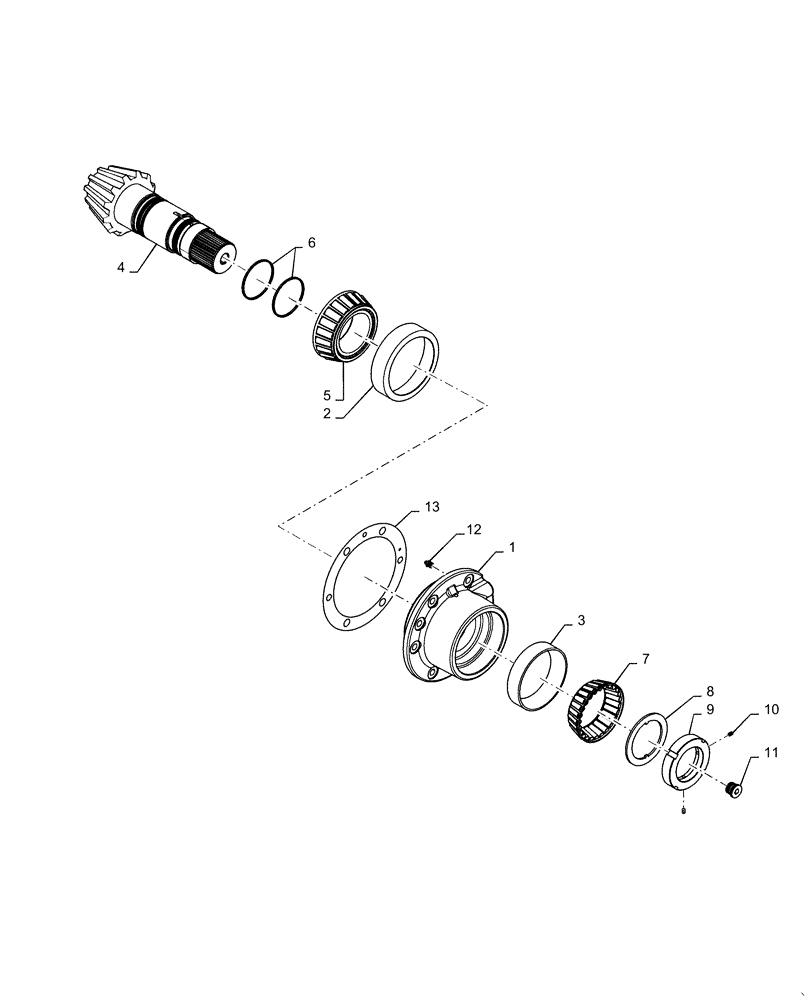

Запчасти Case IH MAGNUM 380 (27.106.AC[11]) - VAR - 429334, 429335 - CVT - TRANSMISSION, DIFFERENTIAL PINION SHAFT & GEARS (27) - REAR AXLE SYSTEM

1

84563025

CARRIER

Bearing Pinion

1шт.

2

87444654

BEARING CUP,150mm OD x 49mm W

1шт.

3

160301R1

BEARING ASSY,133.35mm OD x 32.55mm W

1шт.

4

47470295

BEVEL PINION

Shaft, 11T, HD

1шт.

5

87444653

BEARING ASSY,35.72mm ID x 25.4mm W

1шт.

6

87497396

SEALING RING,Locking, 79.61mm ID x 83.61mm OD x 2.87mm Thk

2шт.

7

1997115C1

TAPERED BEARING,82.575 mm ID x 39.738 mm

1шт.

8

87629649

WASHER,83mm ID x 110mm OD x 4mm Thk

1шт.

9

47458099

NUT,M75 x 1.5, 22mm H, HT

1шт.

10

120242

SET SCREW,Hex Skt, M6 x 10mm, Cup Pt

2шт.

11

87710028

PLUG,M22

1шт.

12

47472894

FITTING,2mm Orifice, M14 ORB

1шт.

13

84567697

SHIM,236mm ID x 310mm OD x 0.08mm Thk

1шт.

13

84567698

SHIM,236mm ID x 310mm OD x 0.1mm Thk

1шт.

13

84567699

SHIM,236mm ID x 310mm OD x 0.13mm Thk

1шт.

13

84567700

SHIM,236mm ID x 310mm OD x 0.3mm Thk

1шт.
