Запчасти Case IH MAGNUM 380 (25.102.AD[08]) - CNH AXLE - PINION ASSY, WITH DIFFERENTIAL, CL 5 - AXLE SERIAL NUMBER AJB0500000 AND ABOVE (25) - FRONT AXLE SYSTEM

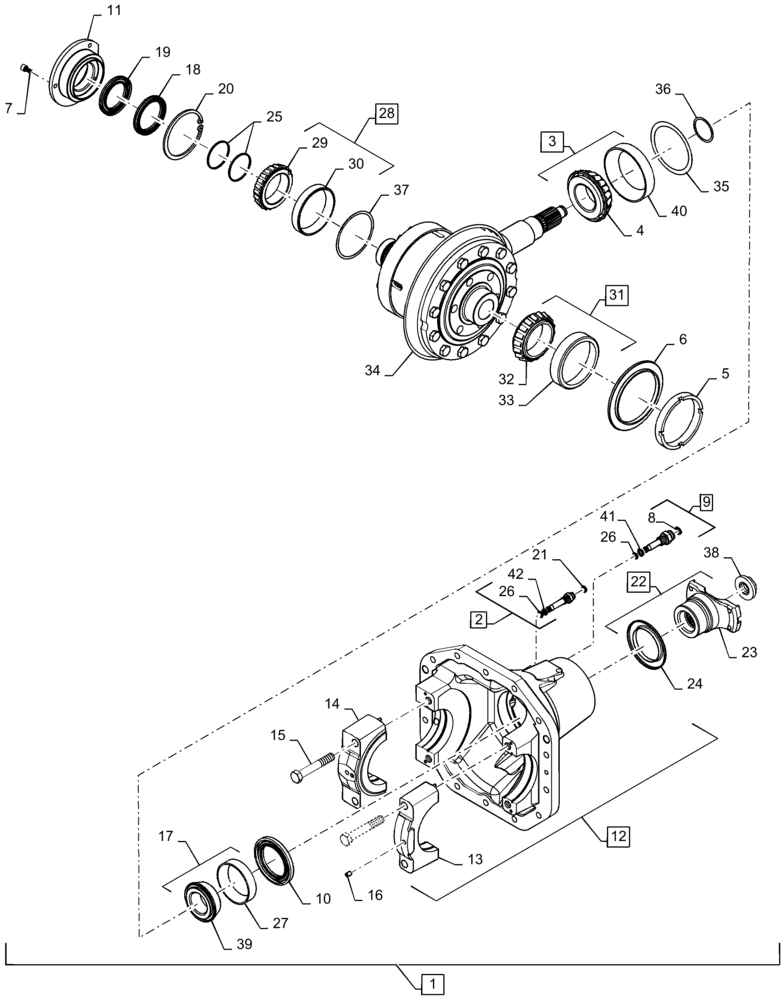

Схема запчастей Case IH MAGNUM 380 - (25.102.AD[08]) - CNH AXLE - PINION ASSY, WITH DIFFERENTIAL, CL 5 - AXLE SERIAL NUMBER AJB0500000 AND ABOVE (25) - FRONT AXLE SYSTEM
14
3
6
5
9
30
12
8
23
36
4
29
10
26
26
40
15
2
31
25
20
28
17
41
18
21
22
32
11
19
1
39
7
16
13
42
27
24
34
38
35
33
37

Артикул

Название

Примечание

Количество

1

84415795

PINION

Assy, CL 5, Incl 2 - 40

1шт.

2

84307666

FITTING,M14 x 1.5 x 75.5mm L

Diff Lock Tube Inlet Incl 21, 26, 42

1шт.

3

47494382

TAPERED BEARING,60mm ID x 125mm OD x 37mm W

Incl 4, 40

1шт.

4

NSS

NOT SOLD SEPARAT

Bearing Cone Incl in 3

1шт.

5

87544772

RING NUT,M124

M124

1шт.

6

84321316

SEAL,120.1mm ID x 160.3mm OD x 13.2mm Thk

Lube Sealer

1шт.

7

863-8016

HEX SOC SCREW,M8 x 16mm, Cl 12.9

3шт.

8

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

9

84586887

FITTING,M18 x 1.5 x 79mm L

Diff Lock Tube Outlet Incl 8, 26, 41

1шт.

10

293053A1

OIL SEAL,74.86mm ID x 107.97mm OD x 12mm Thk

1шт.

11

47460977

CARRIER

Diff Lock Seal

1шт.

12

47421071

CARRIER

Assy, Differential; Incl 13 - 15

1шт.

13

84495404

BEARING CAP

Diff Assy, LH

1шт.

14

84495401

BEARING CAP

Diff Assy, RH

1шт.

15

828-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 10.9

4шт.

16

878-10812

SET SCREW,Hex Skt, M8 x 12mm, Cup Pt

1шт.

17

47495678

TAPERED BEARING,48.41mm ID x 95.25mm OD x 30.16mm W

Incl 27, 39

1шт.

18

84304125

SEAL,67.2mm ID x 88mm OD x 9.45mm Thk

Diff Lock 69 x 88 x 9.45

1шт.

19

84304123

SEAL,60.2mm ID x 88mm OD x 9.45mm Thk

Diff Lock 62 x 88 x 9.45

1шт.

20

11075476

SNAP RING,M110, Int

1шт.

21

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

22

84379951

YOKE

Assy, MFC 6C; Incl 23 - 24

1шт.

23

84379950

YOKE

1шт.

24

84379387

SHIELD

1шт.

25

84304126

RING

Piston Seal

2шт.

26

14452880

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

27

NSS

NOT SOLD SEPARAT

Bearing Cone Incl in 17

1шт.

28

84558087

TAPERED BEARING,70mm ID x 110mm OD x 25mm W

Incl 29 - 30

1шт.

29

NSS

NOT SOLD SEPARAT

Bearing Cone Incl in 28

1шт.

30

NSS

NOT SOLD SEPARAT

Bearing Cup Incl in 28

1шт.

31

84558049

TAPERED BEARING,75mm ID x 120mm OD x 31mm W

Incl 32 - 33

1шт.

32

NSS

NOT SOLD SEPARAT

Bearing Cone Incl in 31

1шт.

33

NSS

NOT SOLD SEPARAT

Bearing Cup Incl 31

1шт.

34

84415797

DIFFERENTIAL ASSY

Front Axle, CL 5

1шт.

35

47492058

SHIM KIT

Pinion Head

1шт.

36

47492057

SHIM KIT

Pinion Tail Bearing

1шт.

37

47492056

SHIM KIT

98.8 x 109.8

1шт.

38

48051640

NUT

M24 x 1.5

1шт.

39

NSS

NOT SOLD SEPARAT

Bearing Cone Incl in 17

1шт.

40

NSS

NOT SOLD SEPARAT

Bearing CupIncl in 3

1шт.

41

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

42

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 42
