Запчасти Case IH MAGNUM 370 (21.506.BG[06]) - TRANSMISSION - CVT - HYDRO MOTOR GEAR HOUSING ASSY. (21) - TRANSMISSION

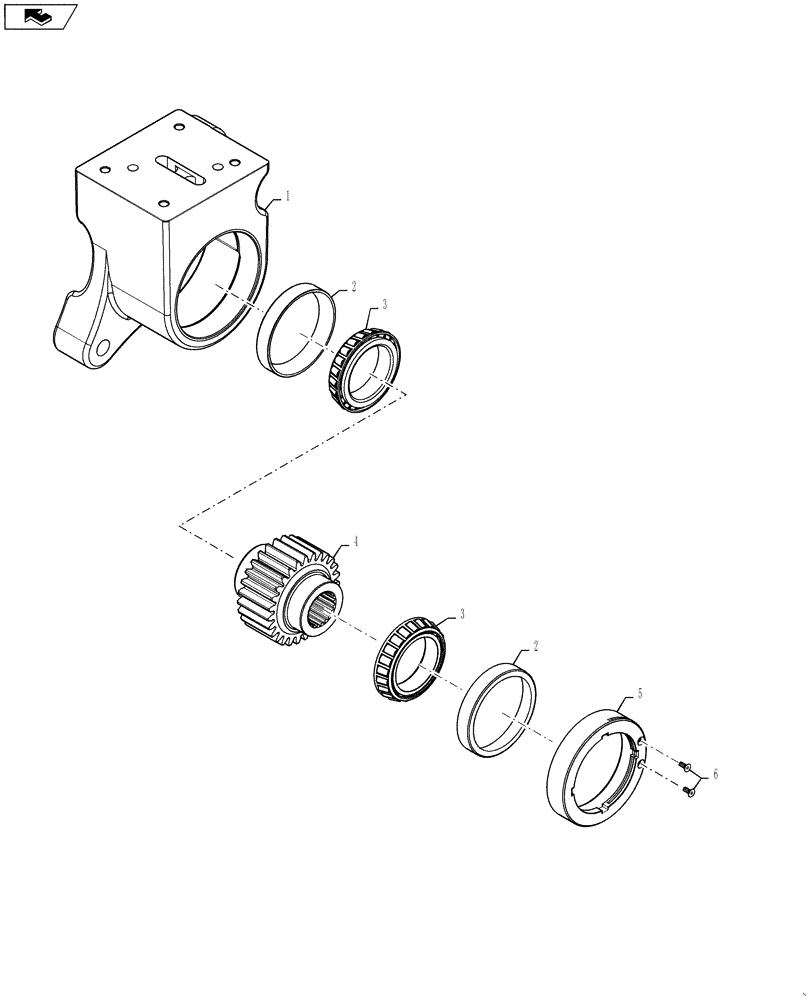

Схема запчастей Case IH MAGNUM 370 - (21.506.BG[06]) - TRANSMISSION - CVT - HYDRO MOTOR GEAR HOUSING ASSY. (21) - TRANSMISSION
1
home
3
3
4
2
2
5
6

Артикул

Название

Примечание

Количество

1

84531460

HOUSING

Hydro Motor Gear

1шт.

2

29214H

BEARING CUP,110mm OD x 18.82mm W

2шт.

3

102161H

BEARING ASSY,68.262mm ID x 21.996mm

2шт.

4

84267877

GEAR

Hydrostatic Motor Drive

1шт.

5

87373421

BEARING LOCK NUT

1шт.

6

87309531

HEX SOC SCREW,FLAT, M5 x 0.8 x 12mm, Cl 10.9

2шт.

Выбрано товаров: 6
