Запчасти Case IH MAGNUM 370 (21.506.BG[05]) - TRANSMISSION - CVT - HYDRO MOTOR / PUMP ASSY. (21) - TRANSMISSION

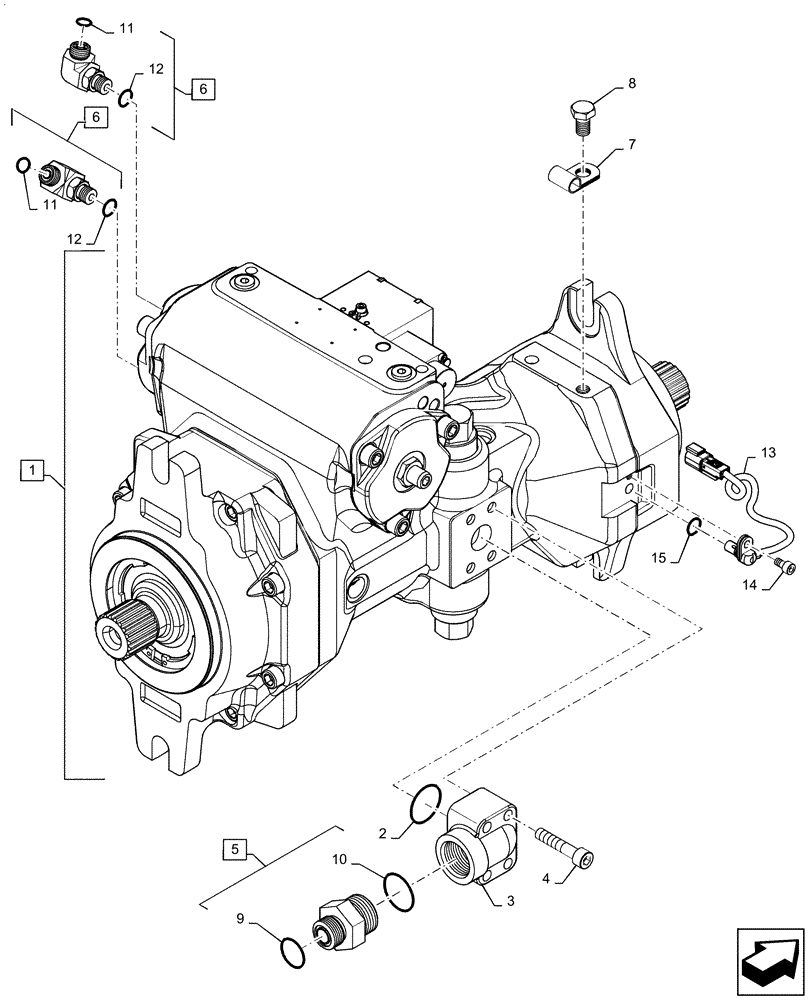

Схема запчастей Case IH MAGNUM 370 - (21.506.BG[05]) - TRANSMISSION - CVT - HYDRO MOTOR / PUMP ASSY. (21) - TRANSMISSION
10
12
11
1
6
12
6
15
7
9
4
3
8
14
11
5
2
13
4

Артикул

Название

Примечание

Количество

1

84393724

HYDROSTATIC PUMP

Motor Assy, Incl 13, 14, Serial Range: -ZFRF05335

1шт.

1

84393724R

REMAN-HYDROSTAT PUMP

Motor Assy

1шт.

1

84393724C

CORE-HYDROSTAT MOTOR

Return Number

1шт.

1

47715614

HYDROSTATIC PUMP

Motor Assy, Incl 13, 14, Start Serial: ZFRF05336

1шт.

2

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

3

47576190

90 ELBOW

4-Bolt FF to ORB

1шт.

4

864-10050

HEX SOC SCREW,M10 x 50mm, Cl 8.8

4шт.

5

85803241

HYD CONNECTOR,Str Thd, Male, 1"-14 ORFS x 1 5/16"-12 ORB Jump

Incl 9 - 10

1шт.

6

47631224

ELBOW,90 Degree, 9/16"-18 ORFS, 9/16"-18 ORB

Incl 11 - 12

2шт.

7

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

1шт.

8

43258

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

1шт.

9

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

10

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

11

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

12

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

13

47539773

SENSOR

Speed, Hydraulic Motor/Pump, Incl 15

1шт.

14

863-6010

HEX SOC SCREW,M6 x 10mm, Cl 12.9

1шт.

15

87492478

O-RING,8.56mm ID x 1.07mm Width

1шт.

Выбрано товаров: 18
