Запчасти Case IH MAGNUM 370 (21.506.BE[04]) - TRANSMISSION - CVT - HYDRAULIC LUBE (21) - TRANSMISSION

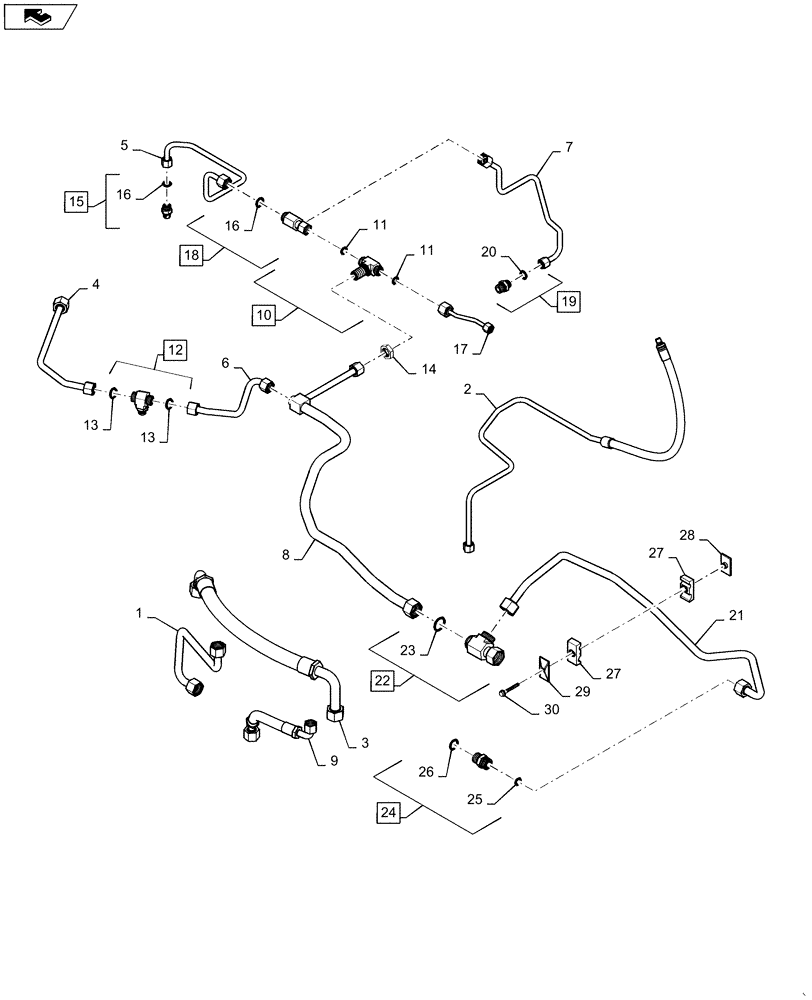

Схема запчастей Case IH MAGNUM 370 - (21.506.BE[04]) - TRANSMISSION - CVT - HYDRAULIC LUBE (21) - TRANSMISSION
14
13
30
3
24
22
27
21
9
11
20
19
15
5
29
26
11
23
18
27
16
28
home
6
8
10
17
13
7
1
2
4
25
12
16

Артикул

Название

Примечание

Количество

1

84297637

TUBE

Filter Head to CVT Regulator Valve

1шт.

2

84559832

HYD TUBE

Steering Return to Manifold

1шт.

3

87625540

HOSE,25.4mm ID x 640mm L, SAE 100R16

Charge Pump to Filter

1шт.

4

87602553

TUBE

PTO Lube

1шт.

5

84518978

HYD TUBE

LH Brake Lube

1шт.

6

87602603

TUBE

RH Brake Lube

1шт.

7

84548608

TUBE

Pinion Lube

1шт.

8

84593580

TUBE

Lube Supply

1шт.

9

84190488

FLEXIBLE HOSE,15.88mm ID x 460mm L, SAE 100R16

Filter Head to Lube Relief

1шт.

10

701-454

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Male ORFS

Incl 11

1шт.

11

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

12

87016910

TEE,1"-14 ORFS x M18 x 1.5 ORB Br

Incl 13

1шт.

13

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

14

701-919

BHD LOCK NUT,1" - 14

1шт.

15

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 16

1шт.

16

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

17

84531802

TUBE

Hydro Rear Bearing Lube

1шт.

18

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl 16

1шт.

19

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 20

1шт.

20

9840589

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

1шт.

21

47385211

TUBE

Front Cover Lube

1шт.

22

701-418

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Female ORFS

Incl 23

1шт.

23

70931640

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

24

84597901

BODY

Orifice Fitting Incl 25, 26

1шт.

25

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

26

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

27

87000153

CLAMP,2 Hole, 19.05 - 12.70 mm Dia Ribbed, 37mm H x 67mm L

1шт.

28

384871A1

PLATE

Hose Clamp

1шт.

29

1347127C1

PLATE

Tube Clamp

1шт.

30

844-8060

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

1шт.

Выбрано товаров: 30
