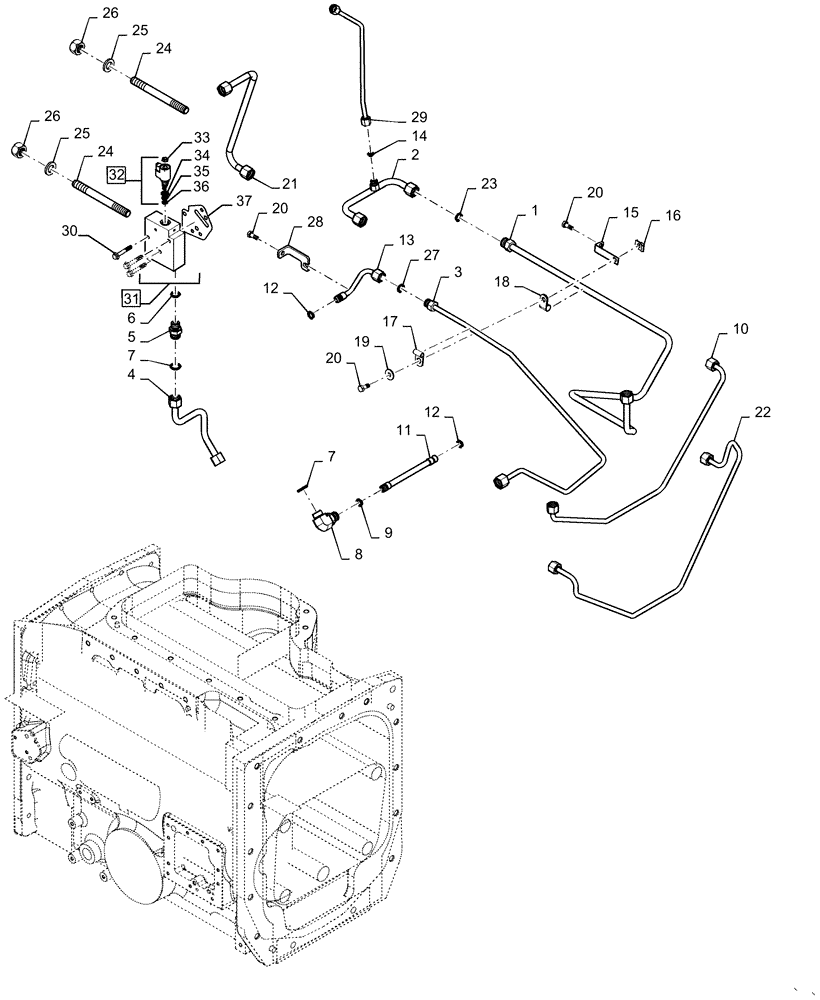

Запчасти Case IH MAGNUM 370 (21.506.BE[01]) - TRANSMISSION - CVT - MAIN HOUSING TUBE ASSY - INTERNAL (21) - TRANSMISSION

1

84527685

HYD TUBE

MFD Lube

1шт.

2

84557640

HYD TUBE

MFD Rear Lube

1шт.

3

47406915

TUBE

MFD Clutch

1шт.

4

84521839

HYD TUBE

Park Brake External

1шт.

5

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

1шт.

6

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

7

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

8

9992307

90 ELBOW,90 Degree, 13/16"-16 x 3/4"-16 Adj, ORFS

1шт.

9

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

1шт.

10

47406908

TUBE

C1 Clutch

1шт.

11

84211224

HYD TUBE

Park Brake Jumper

1шт.

12

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

2шт.

13

84527683

HYD TUBE

MFD Oil Rear

1шт.

14

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

15

84527682

BRACKET

MFD Rear Tubes

1шт.

16

833-40008

SPRING NUT,M8, U

1шт.

17

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

18

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

19

86639313

WASHER,9mm ID x 24mm OD x 2mm Thk

1шт.

20

613-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

21

84527681

HYD TUBE

Park Brake Rear

1шт.

22

47406912

TUBE

C2 Clutch

1шт.

23

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

24

84494047

STUD,M16 x 2 x 165mm, Cl 10.9

2шт.

25

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

26

829-1316

NUT,M16, Cl 10

2шт.

27

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

28

47419261

BRACKET

MFD Tube Support

1шт.

29

47448192

TUBE

PTO Manifold Supply

1шт.

30

844-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 8.8

3шт.

31

47502069

BRAKE VALVE

Incl 32, 37

1шт.

32

349295A1

SOLENOID VALVE

Incl 33 - 36

1шт.

33

349292A1

JAM NUT,Hex, 1/2" - 2, RH Thd

1шт.

34

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

35

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

36

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

37

47377118

GASKET,0.91mm Thk

1шт.
