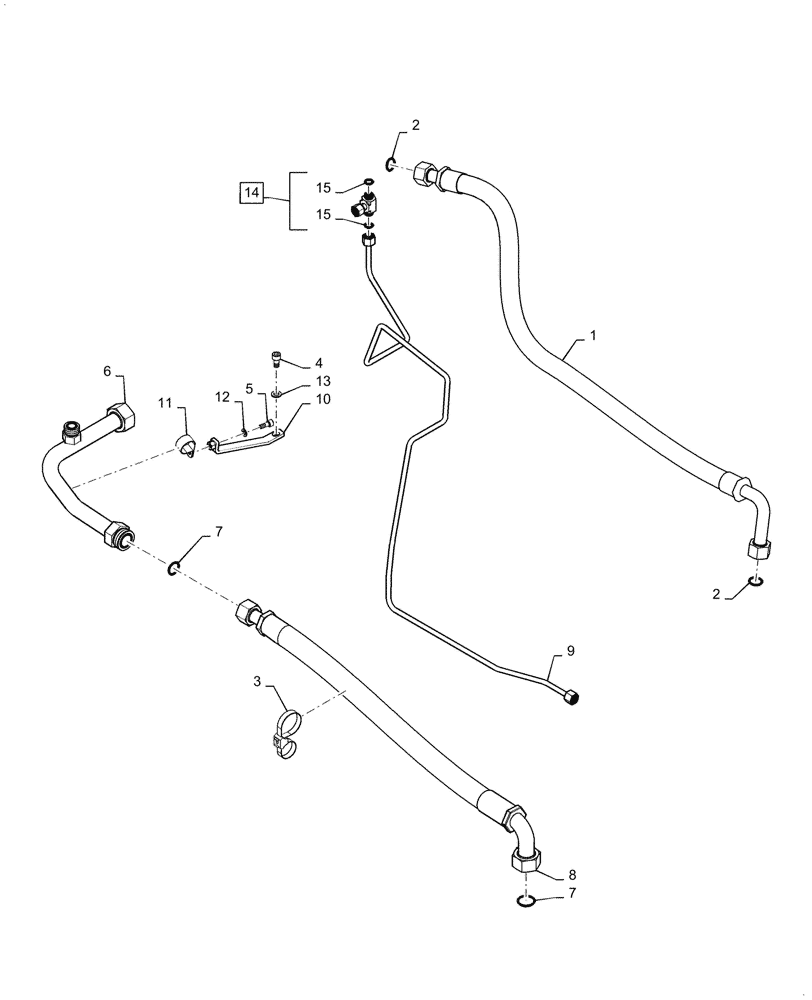

Запчасти Case IH MAGNUM 370 (21.506.AQ[02]) - TRANSMISSION - CVT - HIGH PRESSURE HYDRAULIC CIRCUIT, HD REAR AXLE (21) - TRANSMISSION

1

84425558

HYDRAULIC HOSE,25.4mm ID x 1400mm L, SAE 100R17

Pump, Out, Standard Flow CVT

1шт.

2

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

3

86991000

CLAMP

Dual Tie

2шт.

4

864-10020

HEX SOC SCREW,M10 x 20mm, Cl 8.8

1шт.

5

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

1шт.

6

84482787

TUBE

Aux Manifold Return

1шт.

7

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

8

47442671

HOSE,31.75mm ID x 890mm L, SAE 100R1

Aux Manifold Return

1шт.

9

47496250

HYD TUBE

Pump Load Sense

1шт.

10

47396789

BRACKET

Tube Clamp

1шт.

11

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

14

701-434

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 15

1шт.

15

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.
