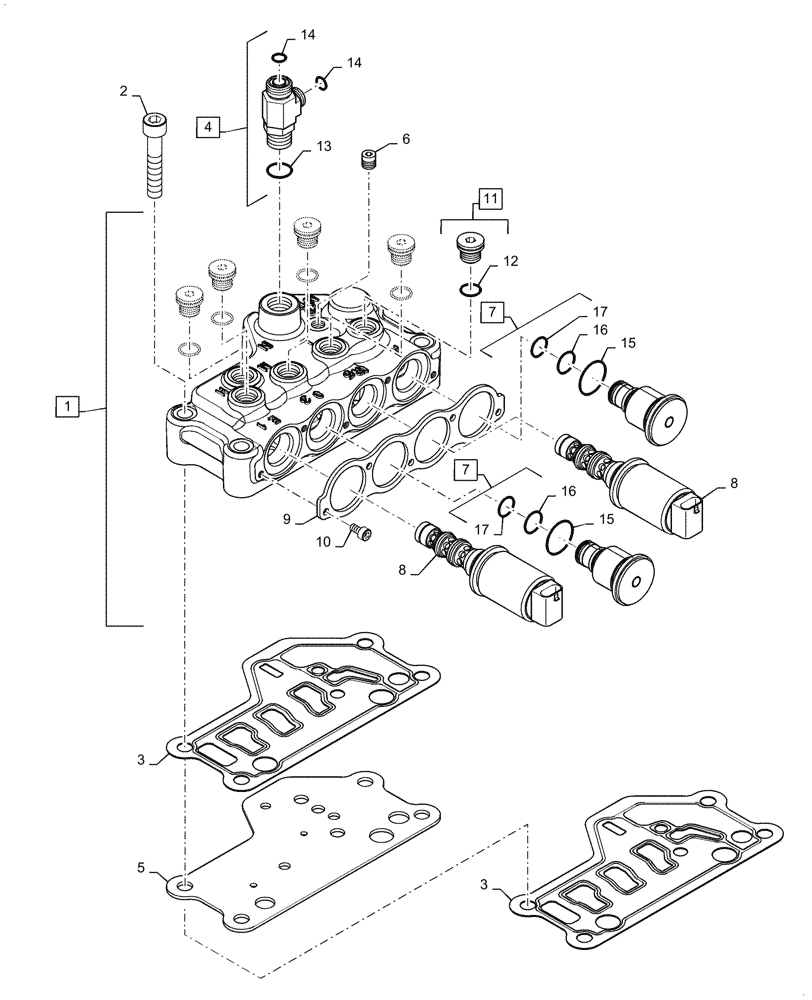

Запчасти Case IH MAGNUM 370 (21.505.AQ[04]) - TRANSMISSION - CVT - CONTROL VALVE - FORWRD / REVERSE (21) - TRANSMISSION

1

84471595

VALVE, PRESSURE CONT

Forward / Reverse, Incl 7 - 12, 15 - 17, Serial Range: -ZERD01000

1шт.

1

47575252

CONTROL VALVE

Forward / Reverse, Incl 7 - 12, 15 - 17, Start Serial: ZERD01001

1шт.

2

864-10055

HEX SOC SCREW,M10 x 55mm, Cl 8.8

4шт.

3

84517727

GASKET,0.92mm Thk

PWM

2шт.

4

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 13, 14

1шт.

5

84485074

MOUNTING PLATE

Orifice Plate

1шт.

6

315168A1

PLUG

Expansion

1шт.

7

86984122

PLUG

Proportional, Incl 15 - 17, Serial Range: -ZERD01000

2шт.

7

47575254

PLUG

Proportional, Incl 15 - 17, Start Serial: ZERD01001

2шт.

8

84173878

SOLENOID

PWM

2шт.

9

86985026

COVER,3mm Thk

PWM Plate

1шт.

10

864-5010

HEX SOC SCREW,M5 x 10mm, Cl 8.8

5шт.

11

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

5шт.

12

14437785

O-RING,11.3mm ID x 2.4mm

5шт.

13

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

14

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

15

511356

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

, Serial Range: -ZERD01000

2шт.

15

89672929

O-RING,70 Duro, .989" ID x .070" Thk

, Start Serial: ZERD01001

2шт.

16

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

17

165212

O-RING,0.551" ID x 0.691" OD x 0.07"

2шт.
