Запчасти Case IH MAGNUM 370 (21.505.AQ[01]) - TRANSMISSION - CVT - REGULATOR VALVE W/MANIFOLD (21) - TRANSMISSION

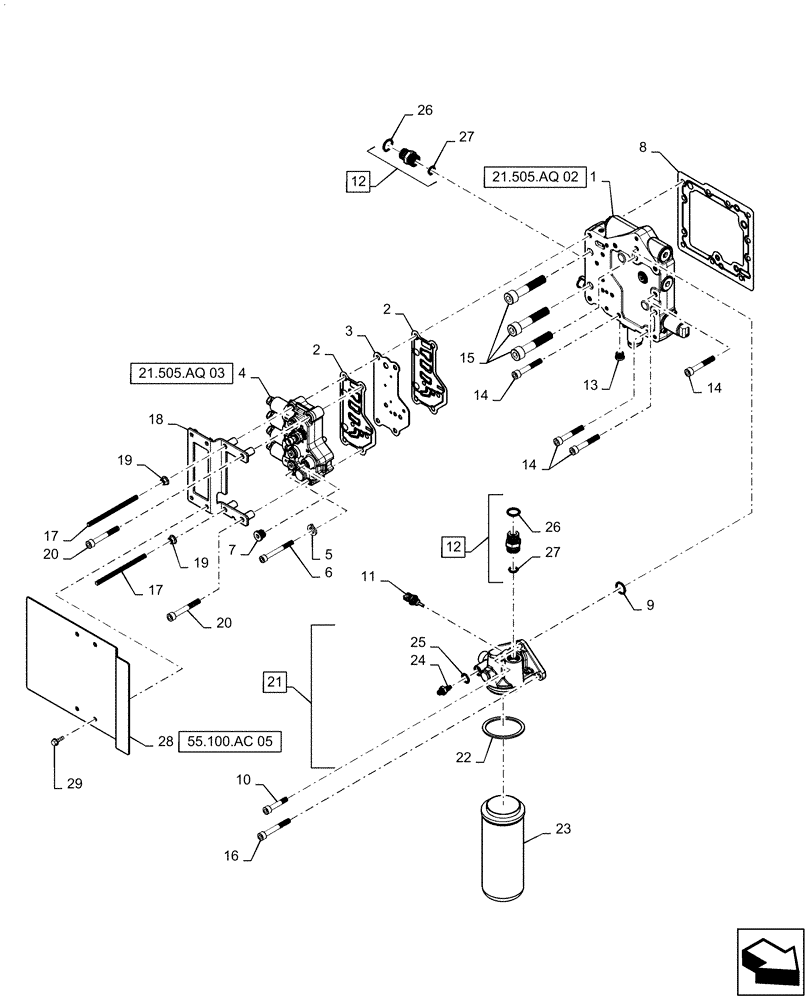

Схема запчастей Case IH MAGNUM 370 - (21.505.AQ[01]) - TRANSMISSION - CVT - REGULATOR VALVE W/MANIFOLD (21) - TRANSMISSION
12
5
22
21.505.aq 03
14
10
20
2
28
9
23
7
6
55.100.ac 05
17
26
21
12
18
29
14
21.505.aq 02
3
11
13
19
20
16
24
2
27
27
25
15
4
1
19
8
17
14
26

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Valve, Regulator, CVT - Reference Figure 21.505.3AQ(02)

1шт.

2

87399290

GASKET,0.92mm Thk

2шт.

3

84485073

PLATE

Plate - Orifice

1шт.

4

NSS

NOT SOLD SEPARAT

Valve - Reference Figure 21.505.AQ(03)

1шт.

5

892-11008

LOCK WASHER,8mm ID

1шт.

6

861-8060

HEX SOC SCREW,M8 x 60mm, Cl 12.9

1шт.

7

221578A1

PLUG,M18 x 1.5 ORB

1шт.

8

84288128

GASKET,0.92mm Thk

Trans. Control Valve

1шт.

9

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

10

861-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

1шт.

11

84574743

SENSOR

1шт.

12

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

Incl 26 - 27

1шт.

13

221579A1

PLUG,M22 x 1.5 ORB

1шт.

14

844-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 8.8

4шт.

15

864-10055

HEX SOC SCREW,M10 x 55mm, Cl 8.8

3шт.

16

863-10075

HEX SOC SCREW,M10 x 75mm, 12.9

2шт.

17

47439289

THREADED ROD,M10 x 1.5 x 160mm L

2шт.

18

47429791

BRACKET

Harness Guard Mount

1шт.

19

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

2шт.

20

864-10090

HEX SOC SCREW,M10 x 90mm, Cl 8.8

2шт.

21

84545564

FILTER HEAD

CVT Regulated - Incl 22, 24 - 25

1шт.

22

84274694

WEAR RING,3.45" ID x 3.94" OD x 0.05" Thk

Friction

1шт.

23

84202794

HYDRAULIC OIL FILTER,Spin On, 9.41"

1шт.

24

1957801C1

PRESSURE SWITCH

Differential Pressure

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

26

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

27

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

28

47429796

GUARD

Chassis Harness

1шт.

29

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

4шт.

Выбрано товаров: 29
