Запчасти Case IH MAGNUM 370 (21.504.AB[04]) - TRANSMISSION - CVT - HYDRO PUMP GEAR HOUSING ASSY. (21) - TRANSMISSION

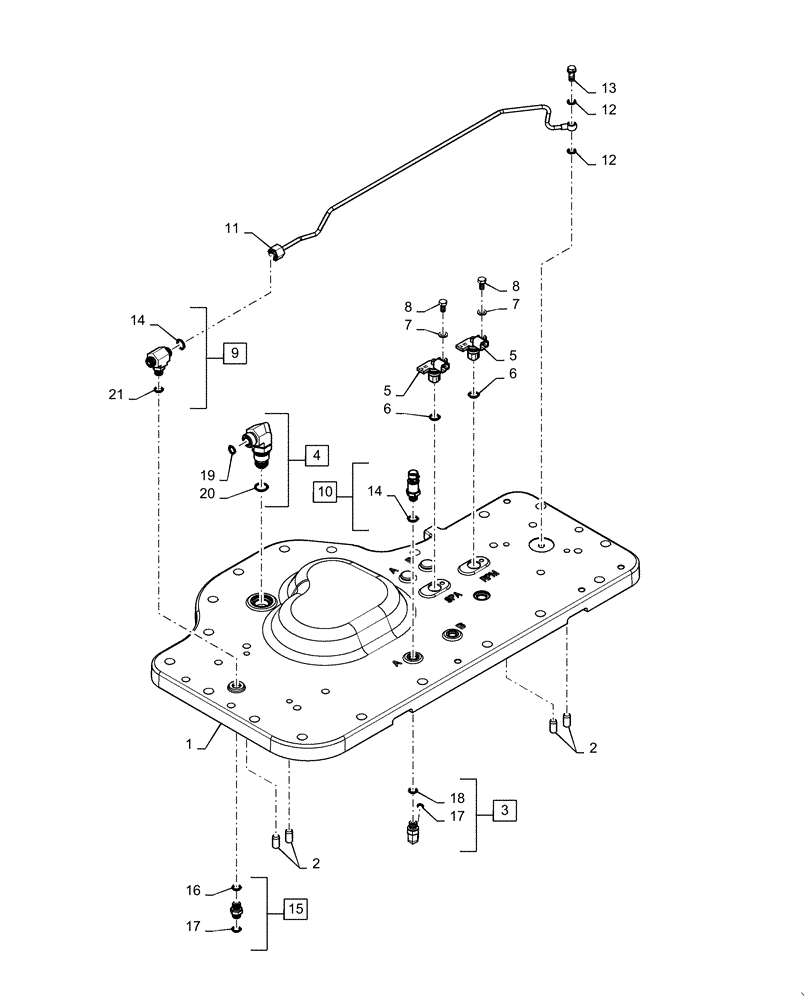

Схема запчастей Case IH MAGNUM 370 - (21.504.AB[04]) - TRANSMISSION - CVT - HYDRO PUMP GEAR HOUSING ASSY. (21) - TRANSMISSION
8
12
6
10
21
4
17
7
2
3
17
9
14
11
18
19
5
12
13
1
2
5
14
8
7
20
16
15
6

Артикул

Название

Примечание

Количество

1

47675766

COVER

Top Cover

1шт.

2

837-12025

DOWEL,M12 x 25

4шт.

3

47631224

ELBOW,90 Degree, 9/16"-18 ORFS, 9/16"-18 ORB

Incl 17 - 18

2шт.

4

47576191

ELBOW,M14 X 1.5 ORB

CVT Reg Supply; Incl 19 - 20

1шт.

5

87673374

ELEC CONNECTOR,2 Receptacle, 90 Degree Module, 2 Pin

2шт.

6

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

2шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

8

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

9

700-401

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 14, 21

1шт.

10

84423987

SENSOR

Pressure, Incl 14

2шт.

11

47455648

TUBE

Hydro Motor Bearing Lube

1шт.

12

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

2шт.

13

87736837

BANJO BOLT,M10 x 1.5 x 21mm

1шт.

14

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

3шт.

15

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 16, 17

1шт.

16

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

17

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

18

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

19

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

20

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

21

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

Выбрано товаров: 21
