Запчасти Case IH MAGNUM 370 (90.160.BI) - CAB INTERIOR TRIM, POSTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

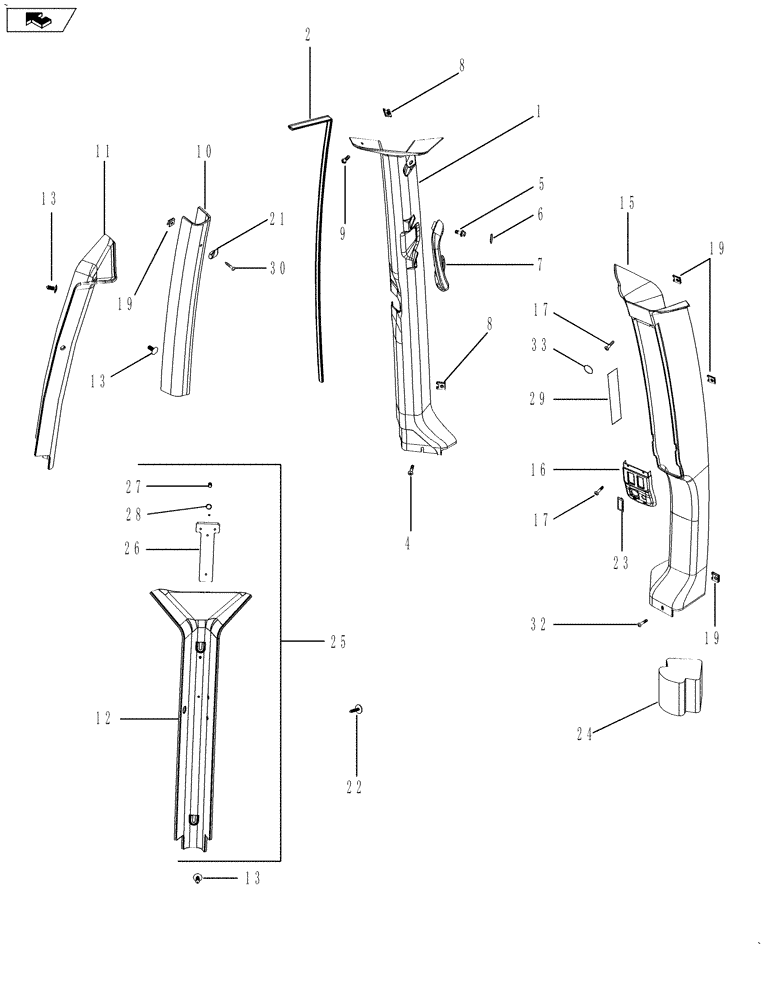

Схема запчастей Case IH MAGNUM 370 - (90.160.BI) - CAB INTERIOR TRIM, POSTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
32
10
33
13
28
17
2
29
27
home
5
13
12
8
26
17
15
4
19
24
7
13
1
9
25
21
8
19
30
11
6
19
22
23
16

Артикул

Название

Примечание

Количество

1

87417632

TRIM PANEL

Left Hand, Front

1шт.

2

87417638

RUBBER STRIP

Upper

1шт.

4

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

1шт.

5

781-24613

SELF-TAP SCREW,Hex Flg, M6 x 1 x 13mm

2шт.

6

87413140

PLUG

2шт.

7

87413139

HANDLE

1шт.

8

87016569

SPRING NUT,U, #10-16, Panel type

1шт.

9

360362A1

CAPTIVE WASHER SCREW

No. 10 x 1

1шт.

10

355100A1

COVER

Left Hand, Middle

1шт.

11

84313685

COVER

Left Hand, Rear

1шт.

12

355098A1

TRIM PANEL

Right Hand, Rear

1шт.

13

93199C1

FASTENER

5шт.

15

444547A1

TRIM PANEL

Right Hand, Front

1шт.

16

358804A1

BEZEL

1шт.

17

260-16516

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

6шт.

19

177269A1

SPRING NUT,M4.2

9шт.

21

3234176R1

COAT HOOK

1шт.

22

333772A1

PLUG

2шт.

23

245918C1

LENS

Blank Slot

2шт.

24

336384A1

PAD

1шт.

25

358667A1

COVER

Right Hand, Rear, Inc. 12, 26-28

1шт.

26

305688A1

HAMMER

1шт.

27

87610697

RIVET,3/16" OD x 0.825" OAL

2шт.

28

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

Washer

2шт.

29

360322A1

TAPE

305 mm, Cut From 1987208C2

2шт.

30

761-17325

SELF-TAP SCREW,Pan Hd, M4.2 x 25

1шт.

32

1975782C1

SELF-TAP SCREW,Truss HD, #10 - 16 x 5/8"

1шт.

33

376597A2

DECAL

2шт.

Выбрано товаров: 28
