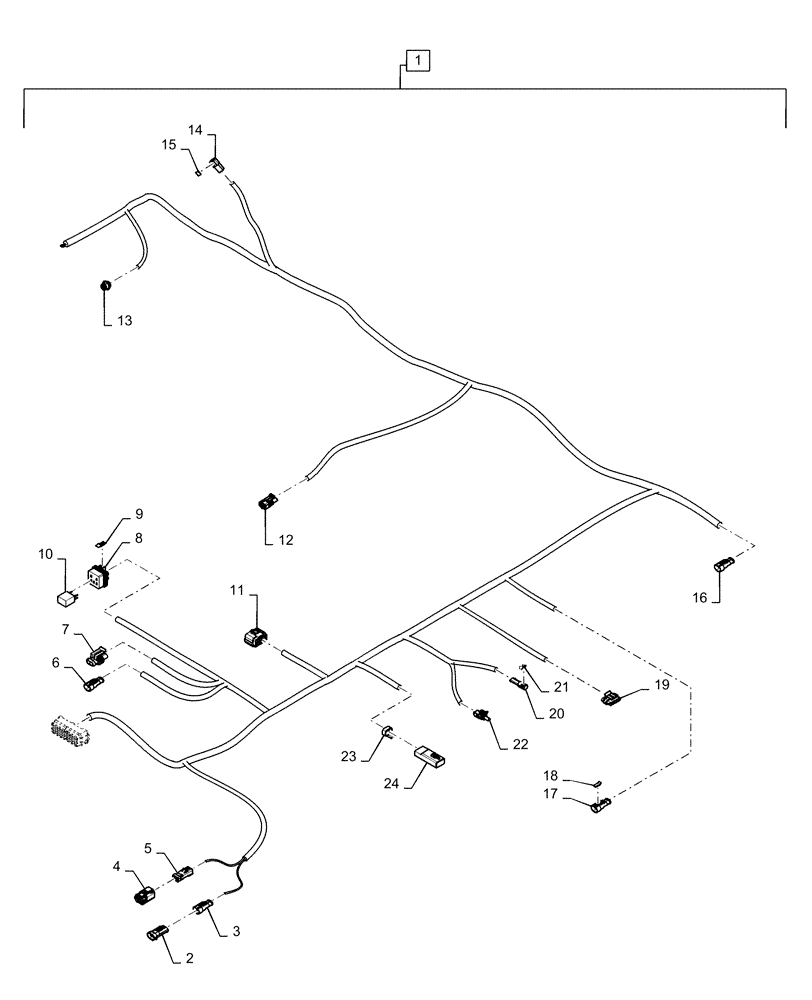

Запчасти Case IH MAGNUM 370 (55.015.AB[03]) - WIRE HARNESS, FRONT FRAME, EVGT (55) - ELECTRICAL SYSTEMS

1

47455658

WIRE HARNESS

Engine, eVGT; Incl 2 - 24

1шт.

2

87382906

WIRE CONNECTOR,Female, 2 Cavities

X-495F

1шт.

3

87382907

WIRE CONNECTOR,Male

X-459, To PTO Harness

1шт.

4

87382918

WIRE CONNECTOR,Female, 6 Cavities

X-1255, To Suspended Axle Harness

1шт.

5

87382919

WIRE CONNECTOR,Male, 6 Cavities

X-1255M

1шт.

6

87687244

ELEC CONNECTOR

X-363, eVGT Can 1

1шт.

7

82012083

WIRE CONNECTOR,Female

X-362, eVGT Actuator Supply

1шт.

8

87697770

MULTIPOLE CONNECTOR,Female, 5 Pole

X-361, eVGT Relay

1шт.

9

87705088

WEDGE

Lock, X-361

1шт.

10

84179509

RELAY

eVGT, X-361

1шт.

11

87694583

ELEC CONNECTOR

X-790 To Clog Sensor

1шт.

12

82012083

WIRE CONNECTOR,Female

X-302, To Grid Heater

1шт.

13

87700162

ELEC CONNECTOR

X-333, To Chassis Harness

1шт.

14

87421341

MULTIPOLE CONNECTOR,Male, 4 Pole

X-304, To Battery B+

1шт.

15

87707798

WEDGE

Lock, X-304

1шт.

16

84192117

ELEC CONNECTOR

X-1007, To Coolant Flow Solenoid

1шт.

17

87688788

MULTIPOLE CONNECTOR,Male, 2 Pole

X-071, To High Pressure Switch

1шт.

18

87688862

LOCKING TAB

X-071

1шт.

19

87688719

ELEC CONNECTOR,Female, 5 Cavities

X-789, To Fan Sensor

1шт.

20

87697527

ELEC CONNECTOR,Male, 1 Pole

X-309, To Compressor

1шт.

21

87704919

LOCKING TAB,Wedge Lock

Lock, X-309

1шт.

22

87693744

WIRE CONNECTOR

X-072, To Clutch

1шт.

23

87695582

ELEC CONNECTOR,Female, 2 Pole

X-392, To Alternator Harness

1шт.

24

84074638

LOCKING TAB,Locking Wedge, Green

Wedge Lock, X-392

1шт.
