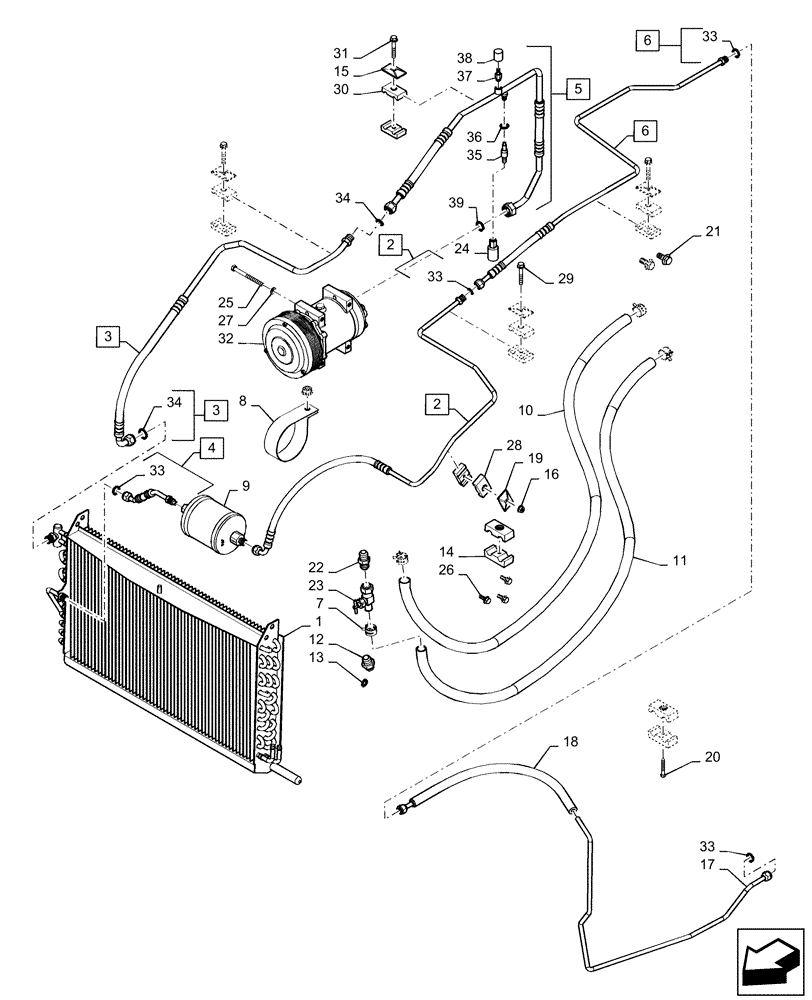

Запчасти Case IH MAGNUM 370 (50.200.AA) - AIR CONDITIONING, COMPRESSOR (50) - CAB CLIMATE CONTROL

1

84345653

COOLER

Fuel and Air Conditioning Combo

1шт.

2

84278919

A/C HOSE

Liquid, Front; Incl 33

1шт.

3

84278909

A/C HOSE

Discharge, Front; Incl 34

1шт.

4

84242790

HOSE

Condensor to Dryer; Incl 33

1шт.

5

47426764

HOSE

Discharge; Incl 34 - 39

1шт.

6

84343038

HOSE

Liquid Chassis; Incl 33

1шт.

7

1954736C1

HOSE CLAMP,#24

4шт.

8

87361944

CLAMP

Reciever/Dryer

1шт.

9

295006A1

RECEIVER-DRYER

1шт.

10

436520A1

HEATER HOSE,15.88 mm ID x 1778.00 mm

Supply

1шт.

11

3401766R2

HEATER HOSE,15.50 mm ID x 1656.00 mm

1шт.

12

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

1шт.

13

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

14

1546026C1

CLAMP

2шт.

15

1347127C1

PLATE

3шт.

16

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

5шт.

17

84343043

HOSE

Liquid Chassis; Incl 33

1шт.

18

84292621

CONDUIT

1шт.

19

384870A1

PLATE

8шт.

20

47612525

SELF-TAP SCREW,Hex, M6.3 x 1.8 x 50mm

1шт.

21

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

2шт.

22

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

1шт.

23

87753805

SHUT-OFF VALVE

Heater, In-Line

1шт.

24

284273A2

SWITCH, A/C HIGH PRE

1шт.

25

814-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

4шт.

26

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.

27

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

28

1546024C1

CLAMP

4шт.

29

844-8050

BOLT,M8 x 1.25 x 50mm, Cl 8.8

4шт.

30

410573A1

CLAMP

2шт.

31

844-8060

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

32

86993463

AIRCOND. COMPRESSOR

1шт.

32

86993463GV

AIRCOND. COMPRESSOR

Value

1шт.

32

86993463R

REMAN-A/C COMPRESSOR

Magnum 235,260, 290, 315, 340

1шт.

32

86993463C

CORE-A/C COMPRESSOR

Return Number

1шт.

33

9827060

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

4шт.

34

9827058

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

2шт.

35

1250594C2

CORE

Valve

1шт.

36

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

1шт.

37

414082A1

CORE

Valve, High Flow High Side Service Port

1шт.

38

414080A1

CAP,M10 x 0.75 x 22.35mm L, Black

1шт.

39

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.
