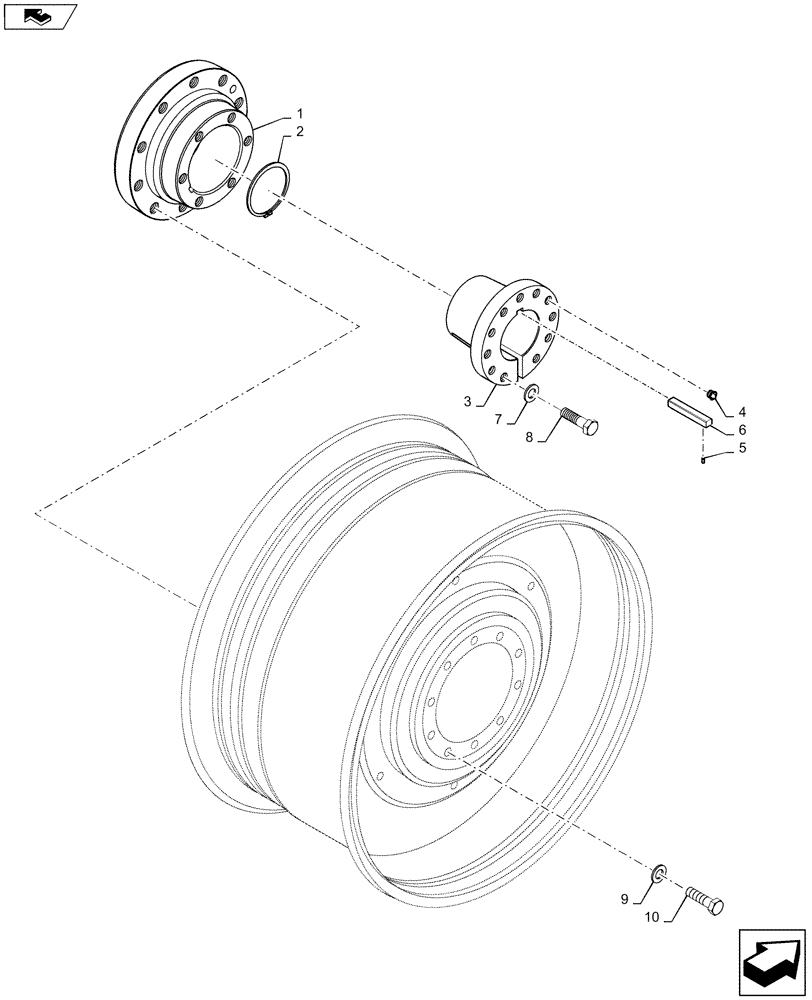

Запчасти Case IH MAGNUM 370 (44.520.AB[03]) - VAR- 429358 - REAR WHEEL, HUB ASSY, 10X335 5" HD AXLE - SHORT KEY (44) - WHEELS

1

84535873

HUB

Wheel, 10B 127mm Bar 335 BC

1шт.

2

84198540

COUPLING RING

127mm PHC

2шт.

3

84198516

BUSHING

Wheel, 127mm Axle

1шт.

4

303401A1

PLUG

Bushing Jackbolt

3шт.

5

38-11608

LOCK PIN,1/4" x 1/2", Slotted

2шт.

6

A63219

KEY

Rear Wheel To Axle

2шт.

7

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

6шт.

8

228273A1

BOLT,Hex, M20 x 2.5 x 110mm, Cl 10.9

6шт.

9

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

20шт.

10

827-22080

BOLT,Hex, M22 x 2.5 x 80mm, Cl 10.9

20шт.
