Запчасти Case IH MAGNUM 370 (35.000.AA[11]) - CVT - TWIN FLOW HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

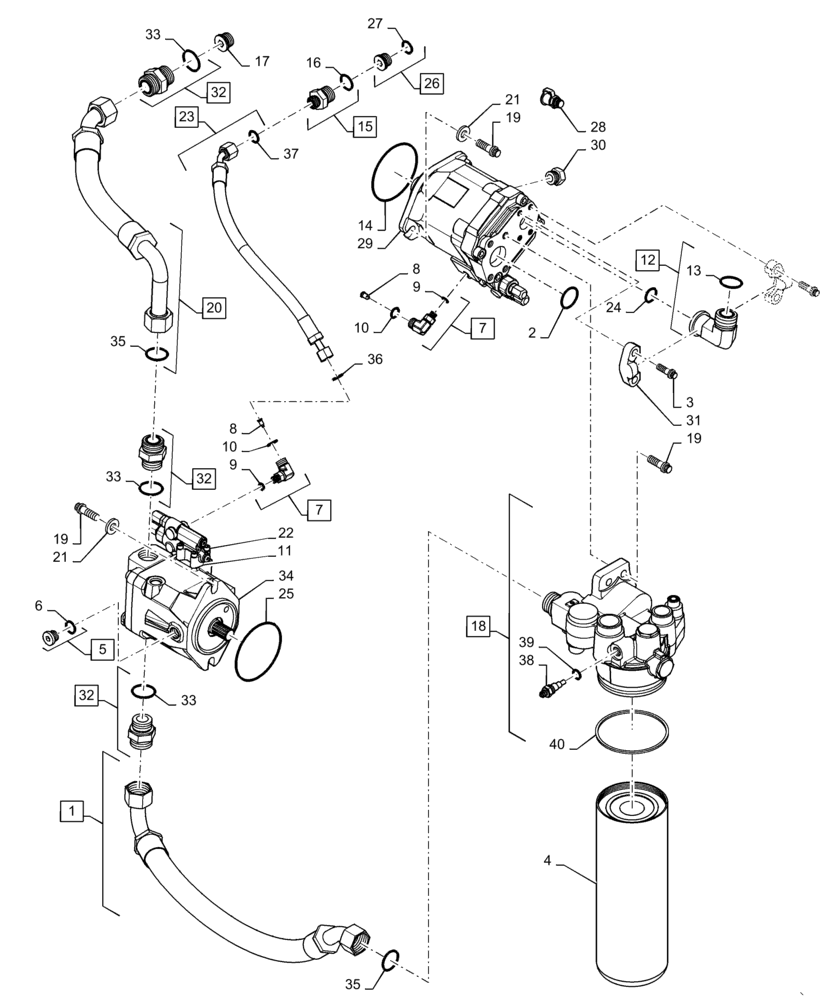

Схема запчастей Case IH MAGNUM 370 - (35.000.AA[11]) - CVT - TWIN FLOW HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS
40
37
7
9
5
33
8
23
13
29
32
17
3
36
30
18
10
32
21
28
14
32
38
35
11
20
1
24
33
2
39
35
16
19
8
19
21
19
4
22
25
26
7
10
6
15
9
31
33
34
27
12

Артикул

Название

Примечание

Количество

1

47379669

HOSE,25.4mm ID x 700mm L, SAE 100R4

Twin/Mega Flow Pump Inlet - CVT; Incl 35

1шт.

2

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

3

868-10030

12 PT SCREW,M10 x 30mm, Cl 12.9

4шт.

4

84240234

HYDRAULIC OIL FILTER,Spin on, 14.48"

1шт.

5

87526196

PLUG

M18 x 1.5; Incl 6

1шт.

6

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

1шт.

7

451226A1

90 ELBOW

Assy, 7/16-20 ORB x 1/16-16; Incl 8 - 10

2шт.

8

133519C1

SCREEN

2шт.

9

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

10

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

2шт.

11

87553152

GASKET

Control Valve

1шт.

12

87677649

90 ELBOW

Split Flange; Incl in 13

1шт.

13

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

14

238-5345

O-RING,0.21" Thk x 3.975" ID, -345, Cl 5, 75 Duro

1шт.

15

86597761

HYD CONNECTOR,13/16"-16 ORFS x M27 x 2.0 ORB

Incl 16

1шт.

16

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

17

221579A1

PLUG,M22 x 1.5 ORB

1шт.

18

84303599

HEAD

Hyd Filter; Incl 38 - 40

1шт.

19

868-12035

12 PT SCREW,M12 x 35mm, Cl 12.9

8шт.

20

84497188

HYDRAULIC HOSE,25.4mm ID x 450mm L, SAE 100R17

Aux Supply, Twin/Mega - CVT; Incl 35

1шт.

21

896-16012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

22

87489367

SERVICE KIT

Compensator

1шт.

23

84127530

HOSE,9.53mm ID x 480mm L, SAE 100R2

Aux Load Sense, Twin/Mega - CVT; Incl 36 - 37

1шт.

24

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

25

238-5243

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

1шт.

26

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl 27

1шт.

27

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

28

178889A1

DIAGNOSTIC COUPLER

Diagnostic

1шт.

29

87538174

PUMP,156 LPM (41.3 GPM)

Hydraulic, Twin Flow 45CC/Rev 210Bar

1шт.

29

87538174R

REMAN-HYD PUMP

Hydraulic, Twin Flow 45CC/Rev 210Bar

1шт.

29

87538174C

CORE-HYDRAULIC PUMP

Return Number

1шт.

30

218-5157

PLUG,Hex Hd, 7/8"-14 ORB

1шт.

31

86980728

COLLAR CLAMP

Split Flange

2шт.

32

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 33

3шт.

33

70931640

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

34

87538170

HYDRAULIC PUMP,111.5 LPM (29.5 GPM)

Twin Flow, 45CC/Rev 210 Bar

1шт.

34

87538170R

REMAN-HYD PUMP,45 CC

Twin Flow, 45CC/Rev 210 Bar

1шт.

34

87538170C

CORE-HYDRAULIC PUMP

Return Number

1шт.

35

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

4шт.

36

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

37

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

38

1957801C1

PRESSURE SWITCH

Hydraulic Filter

1шт.

39

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

40

84362145

RING

Friction

1шт.

Выбрано товаров: 44
