Запчасти Case IH MAGNUM 370 (35.000.AA[10]) - CVT - STD/HIGH FLOW PUMP HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

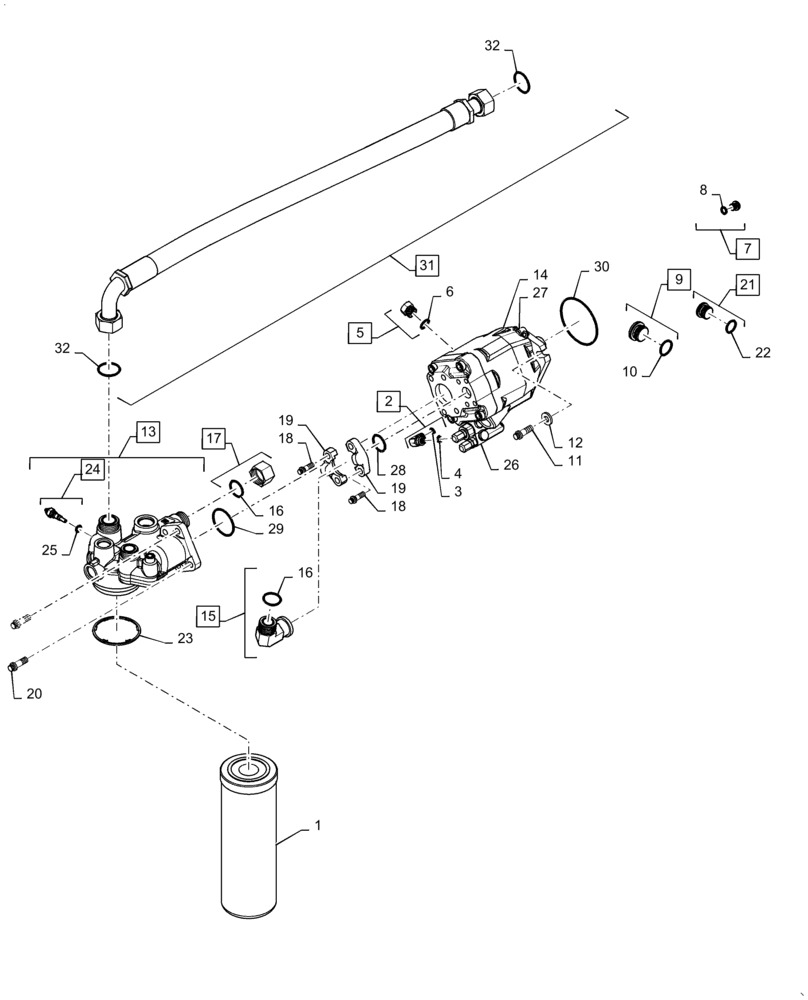

Схема запчастей Case IH MAGNUM 370 - (35.000.AA[10]) - CVT - STD/HIGH FLOW PUMP HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS
21
9
3
25
4
26
18
32
19
18
17
14
29
10
24
2
13
23
15
8
20
22
32
19
28
16
30
7
6
11
12
1
31
16
5
27

Артикул

Название

Примечание

Количество

1

84240234

HYDRAULIC OIL FILTER,Spin on, 14.48"

Spin On 14.48"

1шт.

2

451226A1

90 ELBOW

7/16-20 ORB x 11/16-16 ORFS; Incl 3 - 4

1шт.

3

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

4

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

5

218-5157

PLUG,Hex Hd, 7/8"-14 ORB

Incl 6

1шт.

6

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl 8

1шт.

8

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

9

221527A1

PLUG,Hex Soc, M33 x 2, ORB

Incl 10

1шт.

10

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

11

868-12035

12 PT SCREW,M12 x 35mm, Cl 12.9

2шт.

12

896-16012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

13

47768613

FILTER HEAD

Hyd Filter, Std Flow Pump, Incl 23 - 25

1шт.

13

47437205

FILTER HEAD

High Flow Pump, Incl 24 - 25

1шт.

14

87538174

PUMP,156 LPM (41.3 GPM)

Main Hyd, Std Flow 63CC

1шт.

14

87538174R

REMAN-HYD PUMP

Main Hyd, Std Flow 63CC

1шт.

14

87538174C

CORE-HYDRAULIC PUMP

Return Number

1шт.

14

87538168

PUMP,211 LPM (55.6 GPM)

Main Hyd, High Flow 85CC

1шт.

14

87538168R

REMAN-HYD PUMP

Main Hyd, High Flow 85CC

1шт.

14

87538168C

CORE-HYDRAULIC PUMP

Return Number

1шт.

15

87677649

90 ELBOW

Split Flange; Incl 16

1шт.

16

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

17

701-901

CAP,1-7/16" - 12

Incl 16

1шт.

18

868-10030

12 PT SCREW,M10 x 30mm, Cl 12.9

4шт.

19

86980728

COLLAR CLAMP

2шт.

20

868-12035

12 PT SCREW,M12 x 35mm, Cl 12.9

4шт.

21

221580A1

PLUG,M27 x 2 ORB

Incl 22

1шт.

22

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

23

84362145

RING

Friction

1шт.

24

1957801C1

PRESSURE SWITCH

Hydraulic Filter, Incl 25

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

26

87489367

SERVICE KIT

Compensator

1шт.

27

87553152

GASKET

Control Valve

1шт.

28

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

29

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

Standard Flow Pump

1шт.

29

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

High Flow Pump

1шт.

30

238-5345

O-RING,0.21" Thk x 3.975" ID, -345, Cl 5, 75 Duro

1шт.

31

84127528

HOSE,31.75mm ID x 890mm L, SAE 100R4

Aux Return, CVT; Incl 32

1шт.

32

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

Выбрано товаров: 39
