Запчасти Case IH MAGNUM 370 (33.224.BA[01]) - PNEUMATIC TRAILER BRAKE, DUAL LINE, NAO - BSN ZDRD02583 (33) - BRAKES & CONTROLS

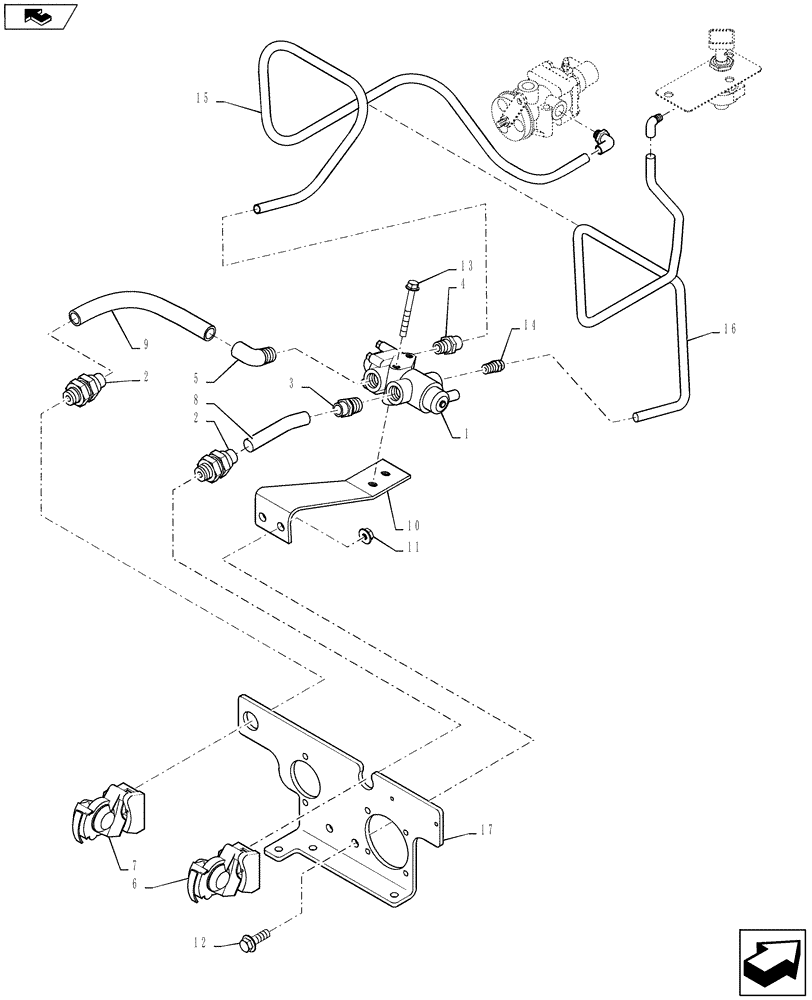

Схема запчастей Case IH MAGNUM 370 - (33.224.BA[01]) - PNEUMATIC TRAILER BRAKE, DUAL LINE, NAO - BSN ZDRD02583 (33) - BRAKES & CONTROLS
11
5
1
14
15
13
3
7
2
9
4
home
17
12
8
10
6
2
16

Артикул

Название

Примечание

Количество

1

87409383

PNEUMATIC VALVE

Tractor Protection

1шт.

2

87411311

HYD CONNECTOR

Bulkhead, 1/2 npt x 1/2 Tube

2шт.

3

87411513

FITTING

Air Brake, Push-in, 1/2 npt x 1/2 Tube

1шт.

4

87411845

FITTING

3/8 npt x 1/2 Tube

1шт.

5

87411504

ELBOW

Air Brake, Push-in, 1/2 npt x 1/2 Tube

1шт.

6

87409385

COUPLING

Emergency, Red

1шт.

7

87409386

COUPLING

Service, Blue

1шт.

8

87670358

HOSE

Emergency Coupler Supply

1шт.

9

87670359

HOSE

Service Coupler Supply

1шт.

10

84212425

BRACKET

Tractor Protection Valve

1шт.

11

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

2шт.

12

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

2шт.

13

844-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

2шт.

14

87411443

FITTING

Air Brake, Push-in, 1/4 npt x 1/4 Tube

1шт.

15

87411893

HOSE

Air Brake Supply

1шт.

16

84211990

TUBE

Hand Valve to Protection Valve

1шт.

17

87413002

BRACKET, SUPPORTING

1шт.

18

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

(Not Shown)

2шт.

Выбрано товаров: 18
