Запчасти Case IH MAGNUM 370 (33.220.AC[05]) - MASTER BRAKE WITH PNEUMATIC TRAILER BRAKE - CVT - HD AXLE (33) - BRAKES & CONTROLS

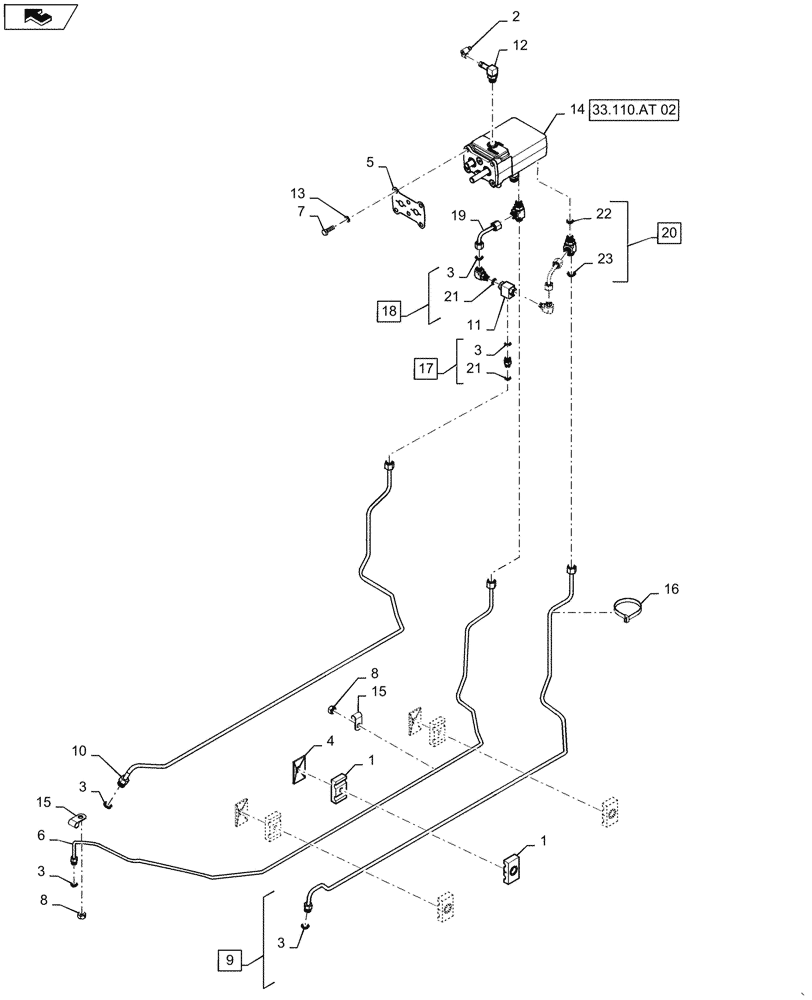

Схема запчастей Case IH MAGNUM 370 - (33.220.AC[05]) - MASTER BRAKE WITH PNEUMATIC TRAILER BRAKE - CVT - HD AXLE (33) - BRAKES & CONTROLS
33.110.at 02
8
3
13
5
22
2
19
7
3
14
18
3
3
21
15
12
8
16
6
11
17
21
1
1
15
20
4
23
10
9
3

Артикул

Название

Примечание

Количество

1

1546024C1

CLAMP

Tube

3шт.

2

214-1408

HOSE CLAMP,11.2mm - 19.8mm

1шт.

3

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

8шт.

4

384870A1

PLATE

Hose Clamp Cover

3шт.

5

407142A1

GASKET

Brake Valve

1шт.

6

84249889

TUBE

Brake Workport, LH

1шт.

7

806-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

3шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

9

84151822

TUBE

Brake Pressure, RH; Incl 3

1шт.

10

84151750

TUBE

Trailer Brake Pilot

1шт.

11

84362467

VALVE,9/16" - 18 x 9/16" - 18

Brake Shuttle

1шт.

12

87454069

ELBOW,90 Degree Hose Barb, 1/2" ID x M18 x 1.5 Male ORB

1шт.

13

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

3шт.

14

84512003

BRAKE VALVE

HD

1шт.

15

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

4шт.

16

86991007

CABLE TIE,509mm L

509mm L

1шт.

17

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 3, 21

1шт.

18

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 3, 21

2шт.

19

442240A1

TUBE

Air Brake Shuttle Valve to Brake Valve

2шт.

20

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 22, 23

2шт.

21

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

3шт.

22

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

23

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

Выбрано товаров: 23
