Запчасти Case IH MAGNUM 370 (33.220.AC[04]) - MASTER BRAKE WITH HYDRAULIC TRAILER BRAKE - CVT (33) - BRAKES & CONTROLS

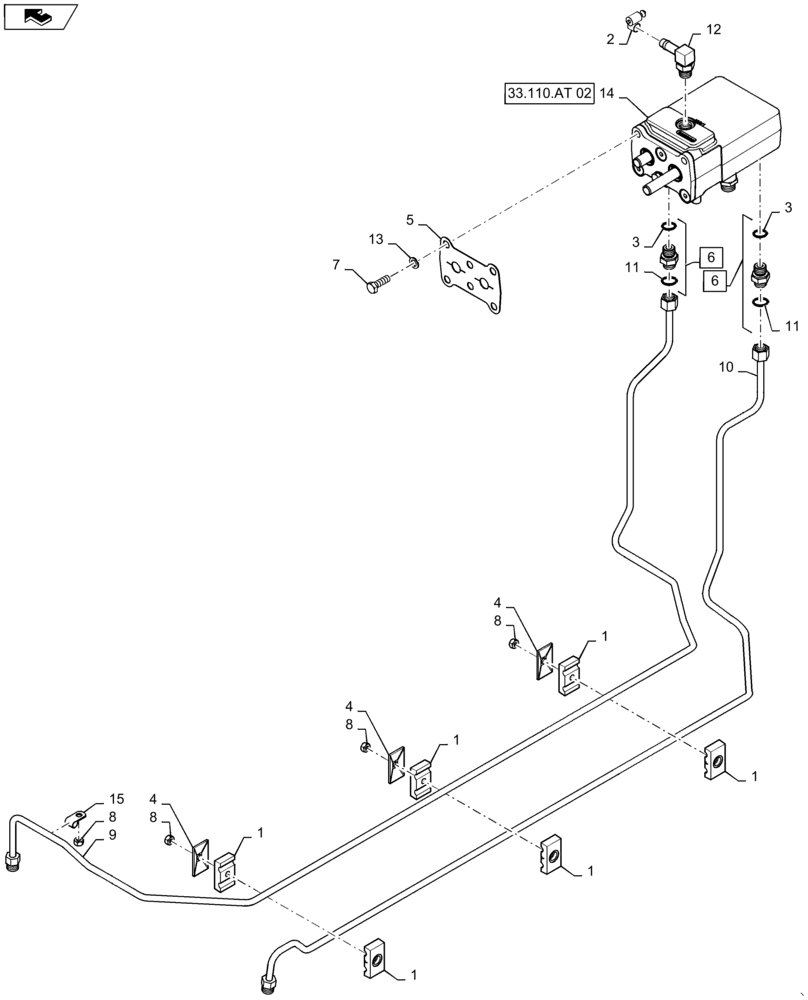

Схема запчастей Case IH MAGNUM 370 - (33.220.AC[04]) - MASTER BRAKE WITH HYDRAULIC TRAILER BRAKE - CVT (33) - BRAKES & CONTROLS
1
33.110.at 02
5
home
6
15
3
6
7
1
4
11
1
3
8
12
1
2
9
10
14
13
8
8
8
1
4
4
1
11

Артикул

Название

Примечание

Количество

1

1546024C1

CLAMP

Tube

3шт.

2

214-1408

HOSE CLAMP,11.2mm - 19.8mm

1шт.

3

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

4

384870A1

PLATE

Hose Clamp Cover

3шт.

5

407142A1

GASKET

Brake Valve

1шт.

6

700-106

HYD CONNECTOR,11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 3, 11

2шт.

7

806-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

3шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

9

84150573

RIGID TUBE

Brake Workport, LH

1шт.

10

84151503

RIGID TUBE

Brake Workport, RH

1шт.

11

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

12

87454069

ELBOW,90 Degree Hose Barb, 1/2" ID x M18 x 1.5 Male ORB

1шт.

13

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

3шт.

14

84512003

BRAKE VALVE

HD

1шт.

15

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

1шт.

Выбрано товаров: 15
