Запчасти Case IH MAGNUM 370 (33.202.AR[01]) - BRAKE ASSY DIFFERENTIAL (33) - BRAKES & CONTROLS

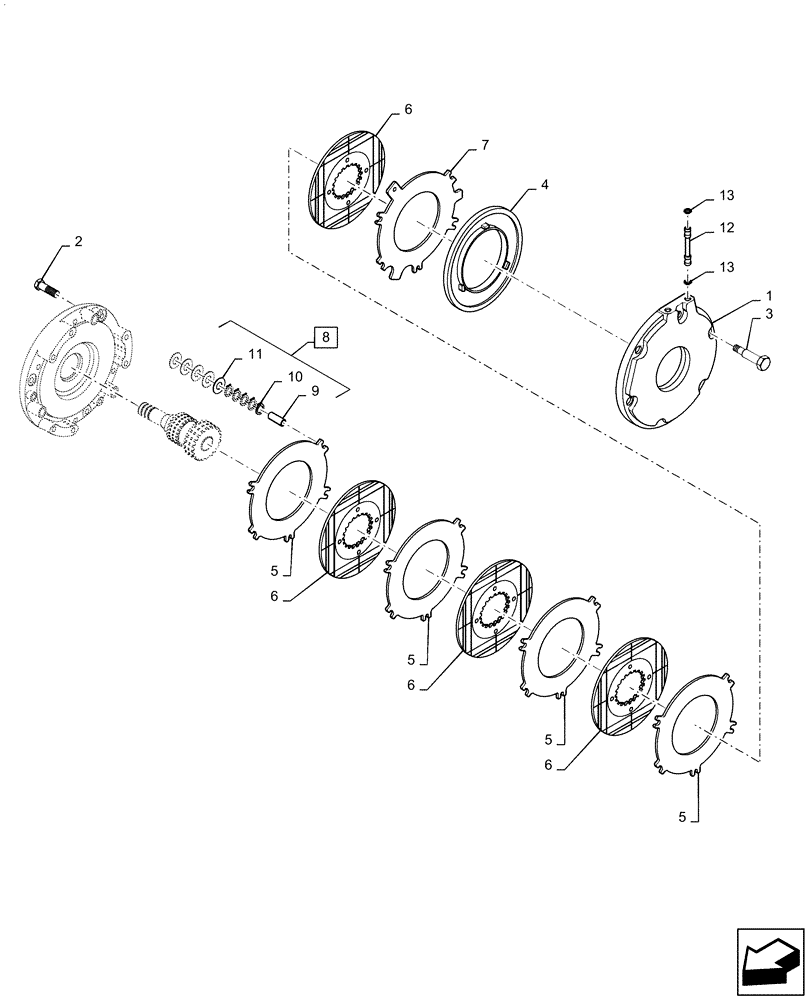

Схема запчастей Case IH MAGNUM 370 - (33.202.AR[01]) - BRAKE ASSY DIFFERENTIAL (33) - BRAKES & CONTROLS
13
6
8
11
5
12
13
6
2
5
9
6
1
5
4
6
5
7
3
10

Артикул

Название

Примечание

Количество

1

1342723C2

COVER

Brake

1шт.

2

813-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 8.8

Right Hand

3шт.

3

814-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 8.8

Left Hand

3шт.

4

1997422C1

PISTON

Brake and Differential Lock

1шт.

5

120486C1

BRAKE PLATE,192mm ID x 350mm OD x 2.74mm Thk

Separator

4шт.

6

84141962

BRAKE DISC

Friction Plate

4шт.

7

1981187C1

PLATE,192mm ID x 317.29mm OD x 2.74mm Thk

Brake Return

1шт.

8

47453738

BRAKE ADJUSTER

Incl 9 - 11

3шт.

9

37-1828

DOWEL,1/2" x 1 3/4"

3шт.

10

100-1450

SNAP RING,#50, Ext

15шт.

11

1342928C1

BELLEVILLE WASHER

Brake Return

12шт.

12

120514C2

TUBE,7.47 mm ID, 11.85 mm OD

2шт.

13

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

4шт.

Выбрано товаров: 13
