Запчасти Case IH MAGNUM 370 (27.100.AK[06]) - REAR AXLE ASSY 5 X 98 INCH, MAGNUM 370 (27) - REAR AXLE SYSTEM

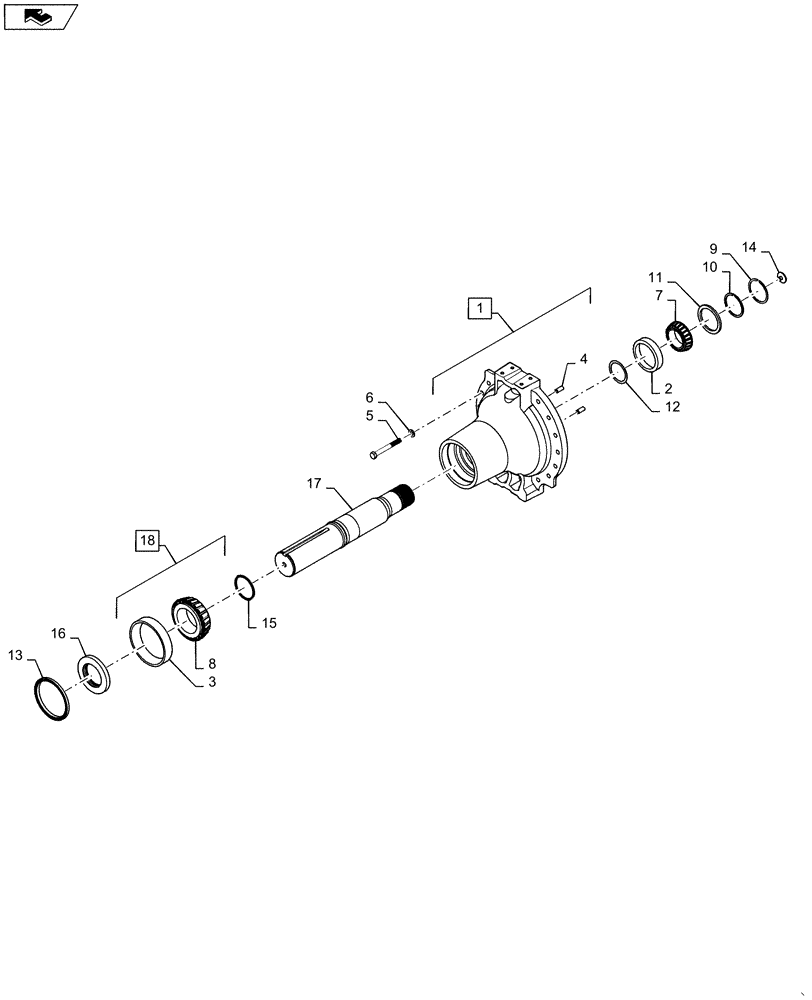

Схема запчастей Case IH MAGNUM 370 - (27.100.AK[06]) - REAR AXLE ASSY 5 X 98 INCH, MAGNUM 370 (27) - REAR AXLE SYSTEM
4
8
7
12
15
16
1
5
home
14
18
9
2
13
10
11
6
3
17

Артикул

Название

Примечание

Количество

1

84568724

CARRIER

Rear Axle, 127mm, Incl 4

1шт.

2

1975500C1

BEARING CUP,180.987 mm OD x 38.15 mm

1шт.

3

NSS

NOT SOLD SEPARAT

Bearing Cup, Incl in 18

1шт.

4

48011567

DOWEL,M20 x 50mm, HDN

2шт.

5

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

36шт.

6

84576088

BOLT,Hex, M20 x 170mm, Cl 10.9

36шт.

7

1975499C1

TAPERED BEARING,104.187 mm ID x 47.68 mm

1шт.

8

NSS

NOT SOLD SEPARAT

Bearing Cone, Incl in 18

1шт.

9

101-11393

SNAP RING,#393, 3.713, Ext

1шт.

10

435222A1

RING, SNAP

1шт.

11

436752A1

THRUST BEARING,105.4mm ID x 130.9mm OD x 7.5mm Thk

1шт.

12

NSS

NOT SOLD SEPARAT

Reserved for Shim kit

1шт.

13

84599909

OIL SEAL,210mm ID x 240mm OD x 18mm Thk

2шт.

14

1981270C1

INSERT

2шт.

15

238-5250

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

2шт.

16

84173880

BUSHING,127.4mm ID x 210mm OD x 26mm L

2шт.

17

47479773

SHAFT

2шт.

18

84182188

BEARING ASSY

Incl 3, 8

2шт.

Выбрано товаров: 18
