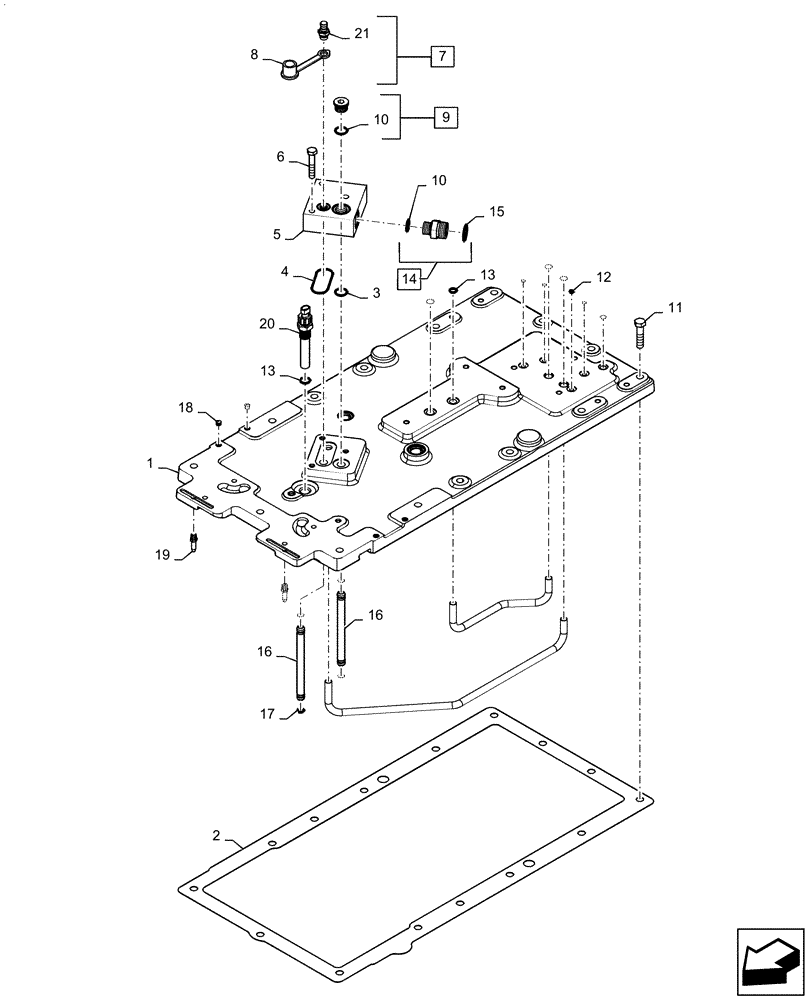

Запчасти Case IH MAGNUM 370 (27.100.AB[04]) - REAR AXLE, HOUSING COVER HD & HD R/A - CVT (27) - REAR AXLE SYSTEM

1

47395093

COVER ASSY

Rear Axle Housing With Tubes

1шт.

2

84573106

GASKET,0.79mm Thk

Top Cover

1шт.

3

238-5120

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

1шт.

4

238-6139

O-RING,0.103" Thk x 2.175" ID, -139, Cl 6, 90 Duro

1шт.

5

84239750

HYDRAULIC MANIFOLD

PTO

1шт.

6

827-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

3шт.

7

178889A1

DIAGNOSTIC COUPLER

Incl 8, 21

1шт.

8

143349A1

DUST CAP

1шт.

9

221579A1

PLUG,M22 x 1.5 ORB

Incl 10

1шт.

10

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

11

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

15шт.

12

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

7шт.

13

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

3шт.

14

700-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M22 x 1.5 Male ORB

Incl 10, 15

1шт.

15

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

16

84466978

HYD TUBE

PTO Input, Jumper

2шт.

17

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

4шт.

18

353-401

PLUG,Dome, .312" hole, Nylon

4шт.

19

217-120

ELBOW,1/4" Hose Barb x 1/8" Male NPTF

2шт.

20

84592313

SENSOR,M20 x 1.5 x 133.60mm L, 2 Term Pins

Speed

1шт.

21

182606A1

HYD CONNECTOR

Diagnostic

1шт.
