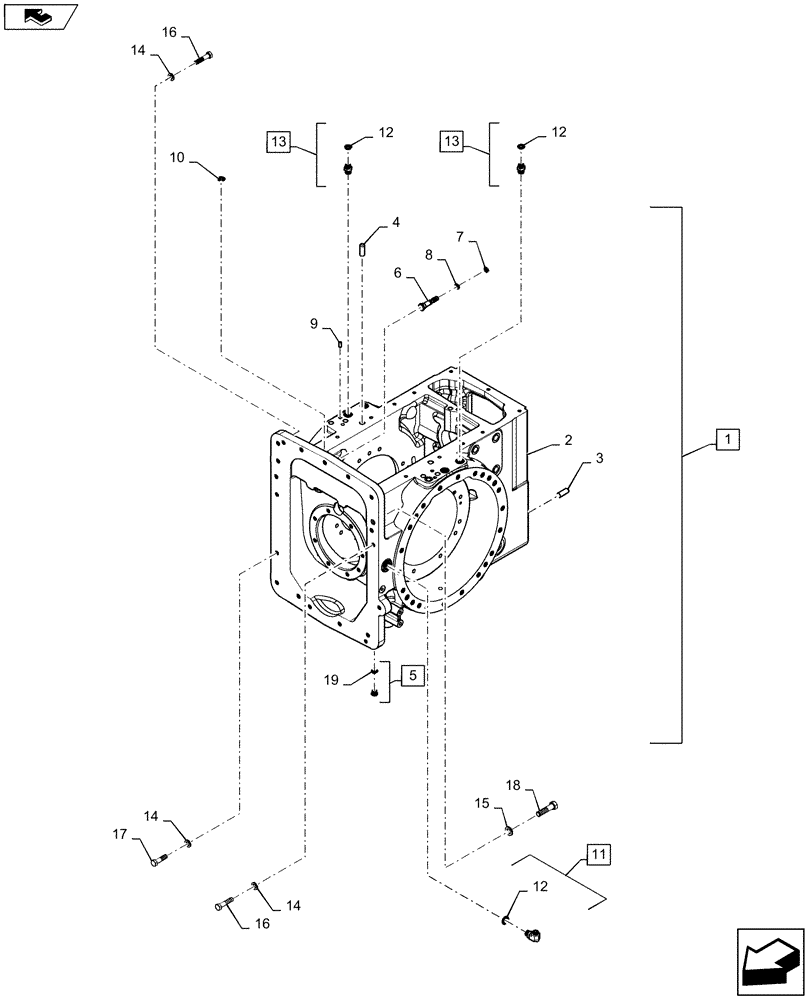

Запчасти Case IH MAGNUM 370 (27.100.AB[03]) - REAR AXLE, HOUSING HD R/A - CVT (27) - REAR AXLE SYSTEM

1

84563437

HOUSING

Assy, Rear Axle HD R/A, CVT; Incl 2 - 9, 19

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING, REAR AXLE; Incl in 1

1шт.

3

837-10020

DOWEL,M10 x 20

2шт.

4

37-11232

DOWEL,3/4" x 2"

4шт.

5

86598046

PLUG,M18 x 1.5 ORB

Incl 19

3шт.

6

411075A1

FITTING

Diff Lock Pressure

1шт.

7

238-6111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 6, 90 Duro

1шт.

8

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

9

837-10024

DOWEL

4шт.

10

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

1шт.

11

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 12

1шт.

12

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

5шт.

13

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 12

4шт.

14

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

15шт.

15

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

1шт.

16

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

13шт.

17

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

2шт.

18

828-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

1шт.

19

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

3шт.
